Timer/Control Unit, Accessory Control

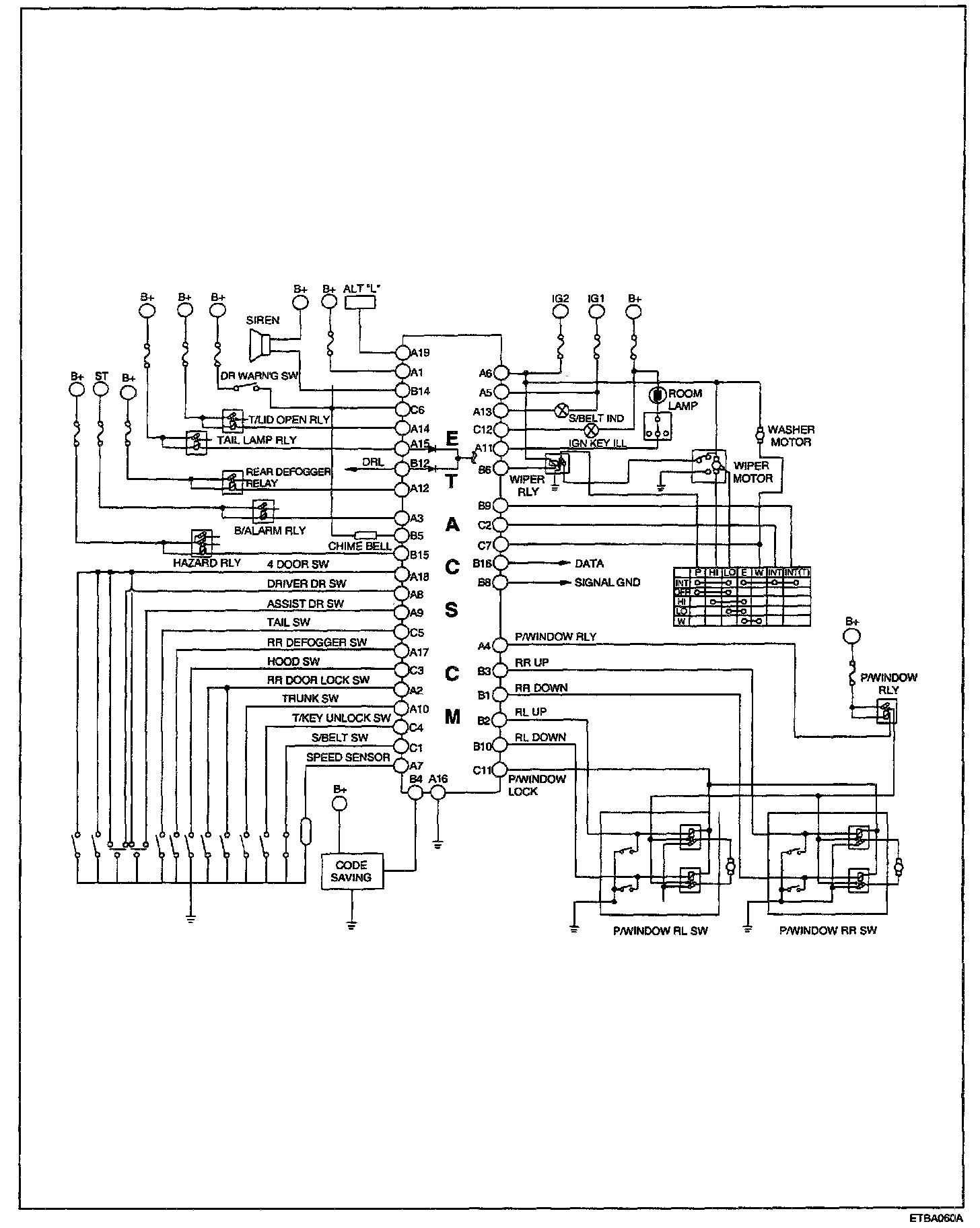

ETACS Circuit Diagram:

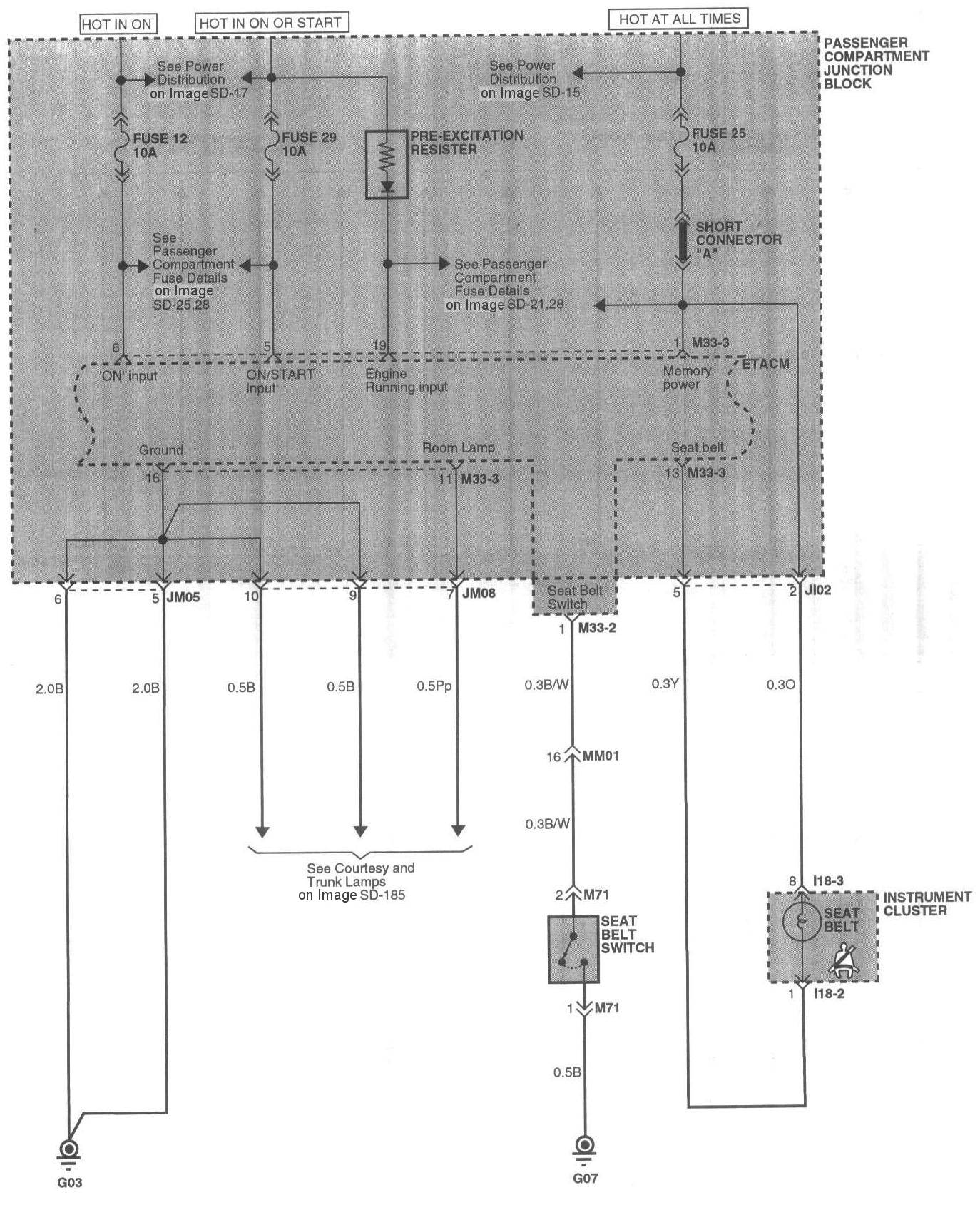

Image SD-102 ETACS (Electronic Time & Alarm Control System) (1):

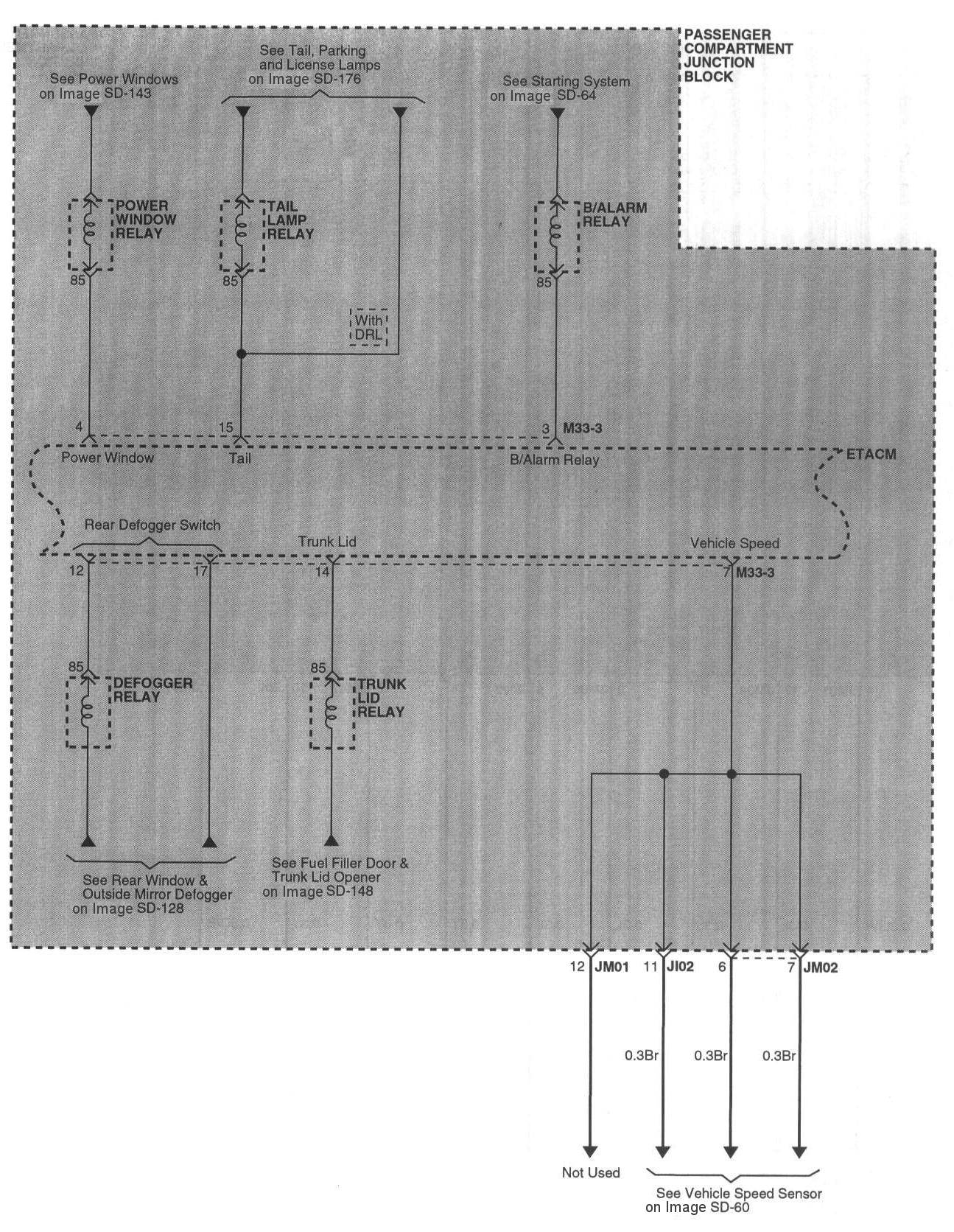

Image SD-103 ETACS (Electronic Time & Alarm Control System) (2):

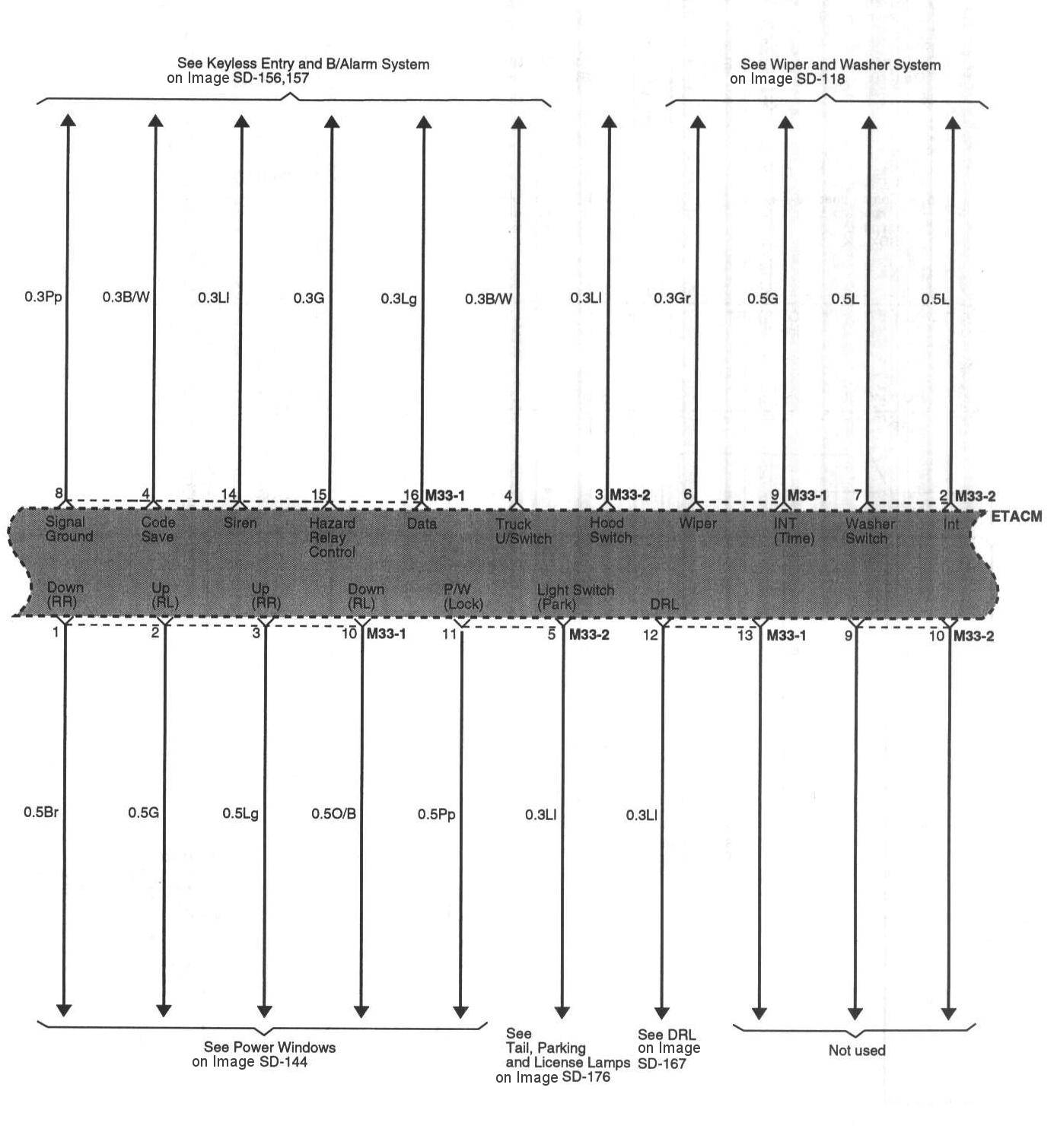

Image SD-104 ETACS (Electronic Time & Alarm Control System) (3):

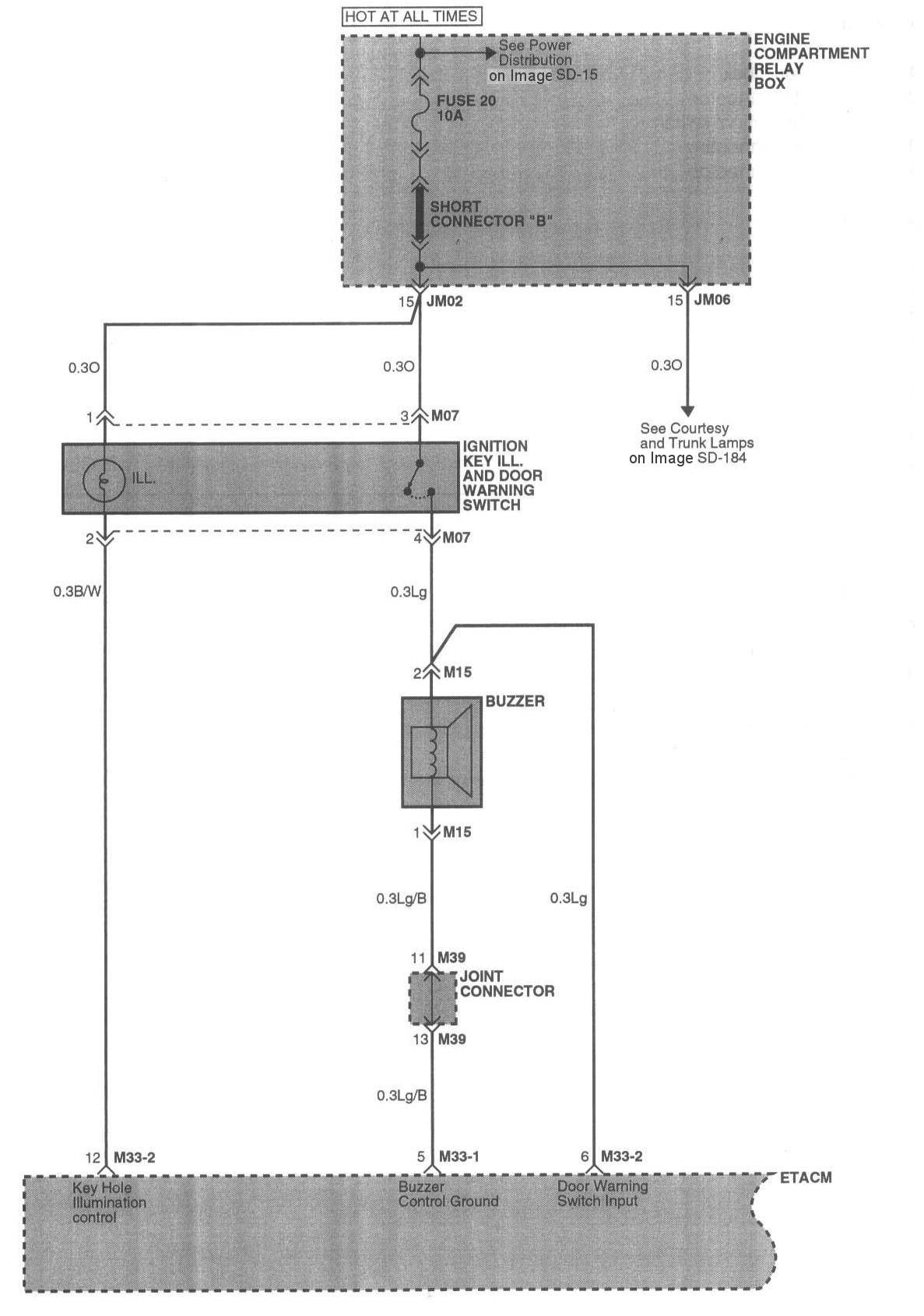

Image SD-105 ETACS (Electronic Time & Alarm Control System) (4):

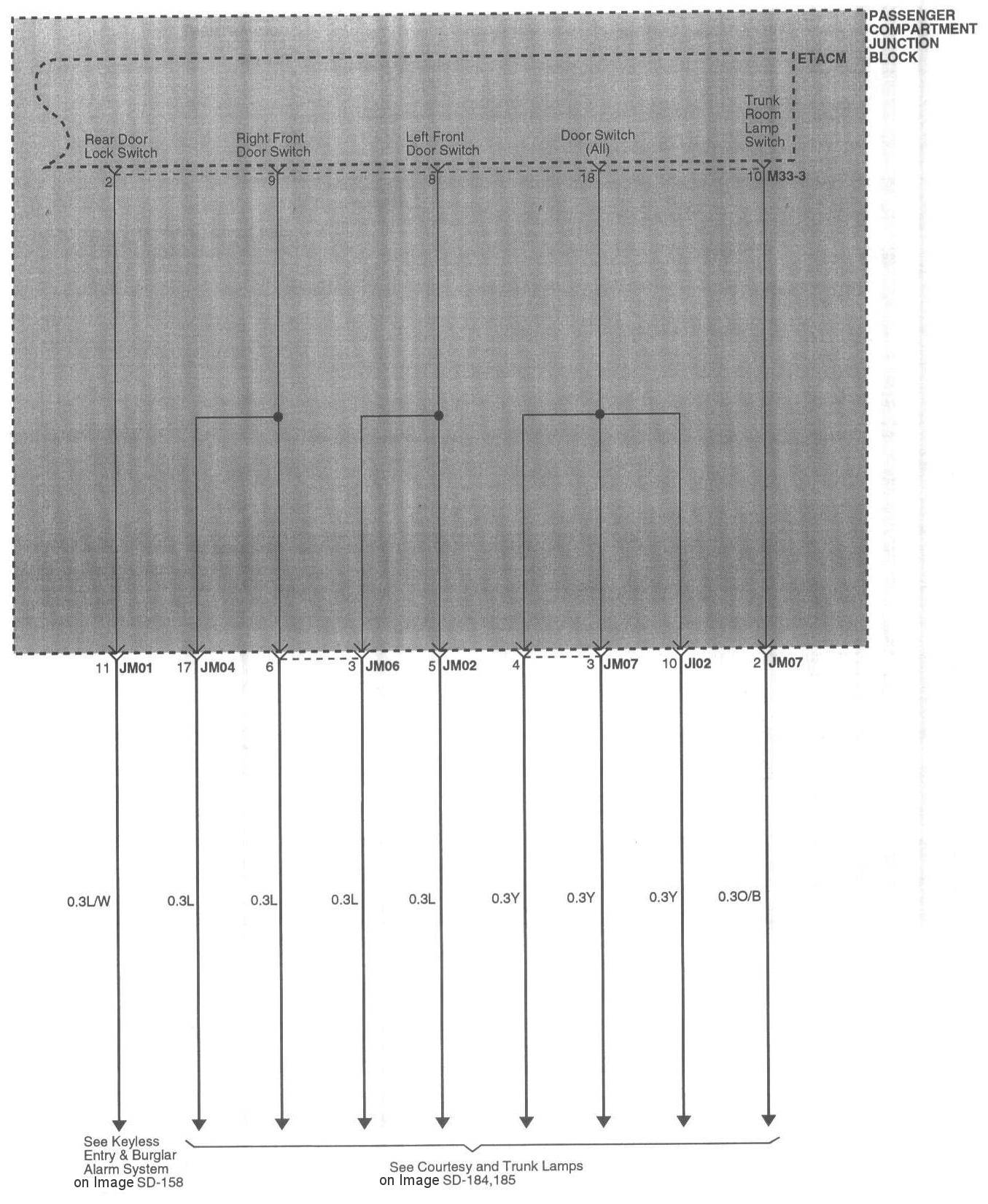

Image SD-106 ETACS (Electronic Time & Alarm Control System) (5):
