Manual A/C Compressor Controls

MANUAL A/C

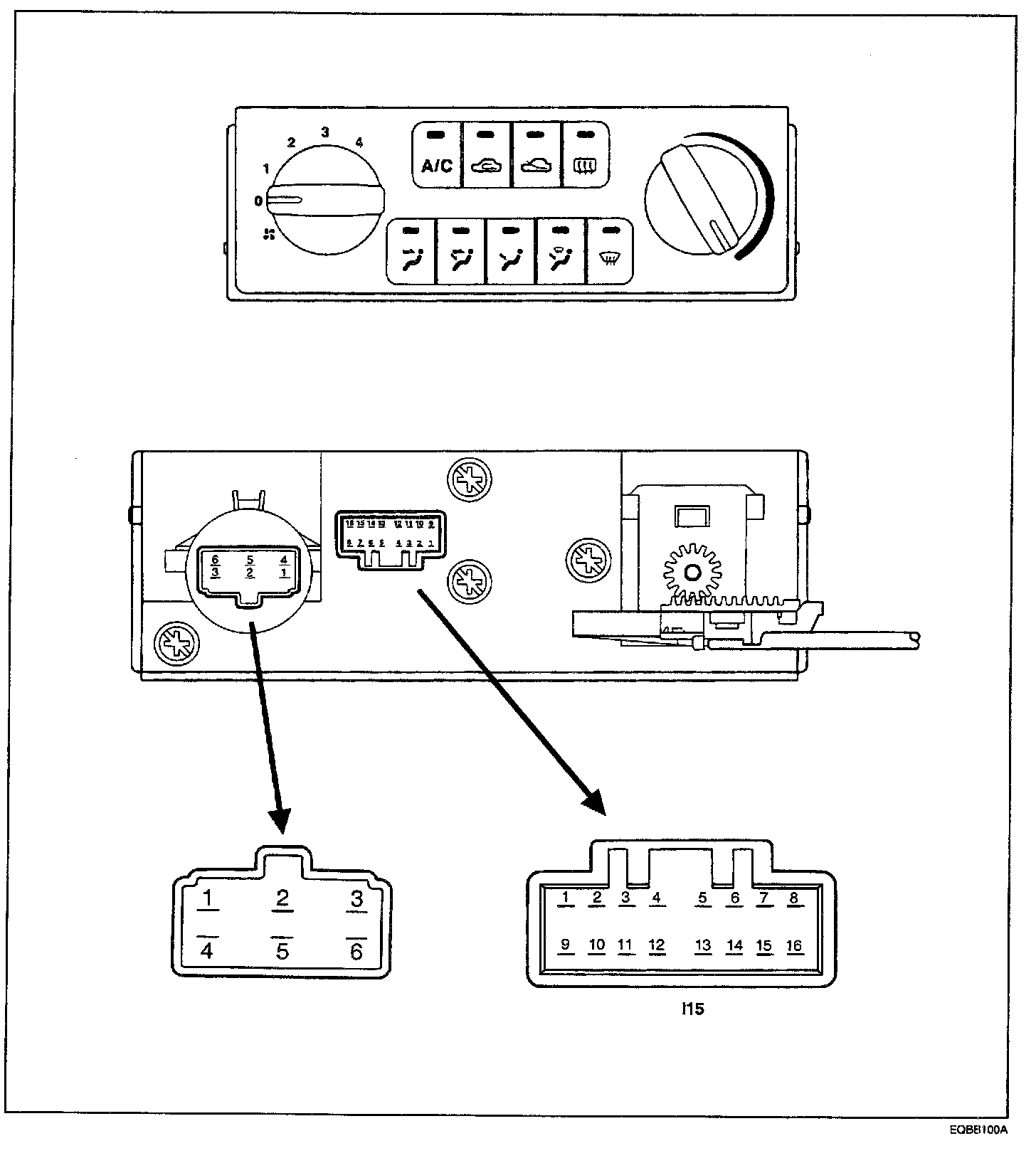

Manual A/C Compressor Controls Control Panel Assembly [Rotary + Push]:





CHECKING CONTROL PANEL ASSEMBLY

Blower Switch

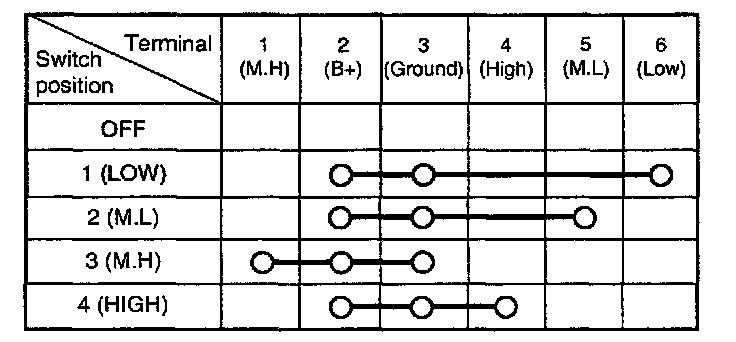

Blower Switch:

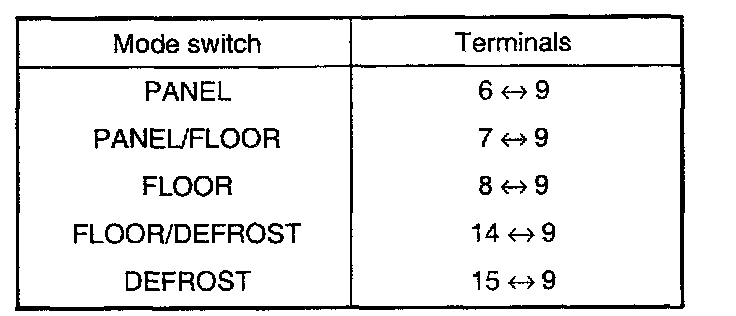

Mode Control Switch

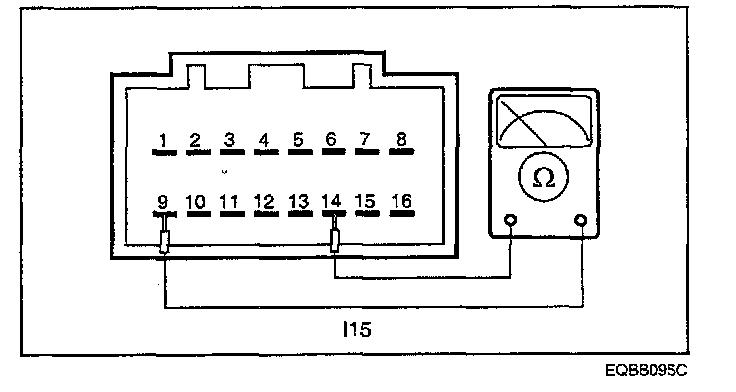

Mode Control Switch Connector:
