Connector Locations

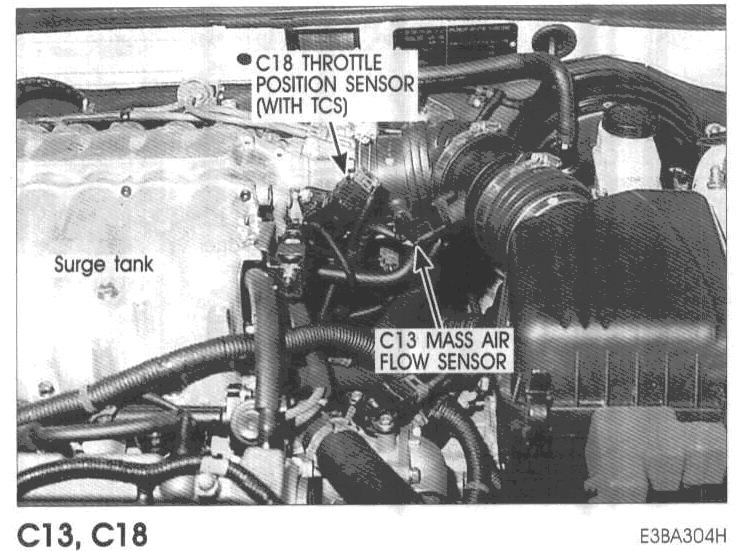

C13 Mass Air Flow Sensor, C18 Throttle Position Sensor (With TCS):

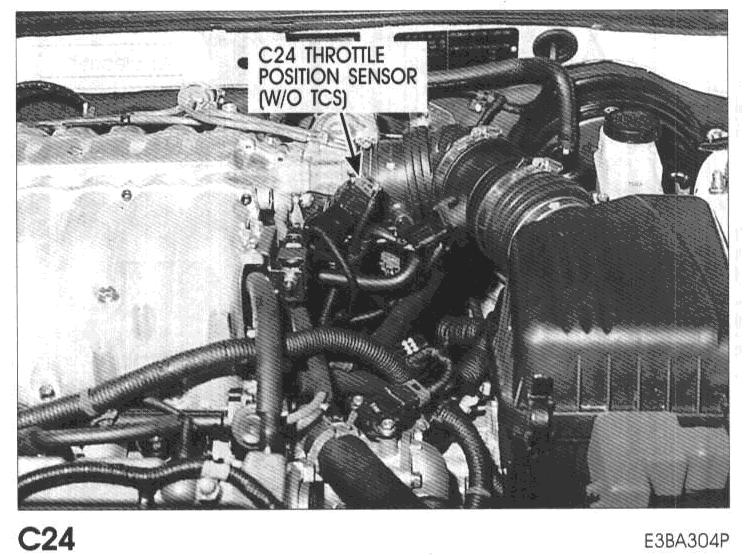

C24 Throttle Position Sensor (w/o TCS):
