Audio Unit: Components

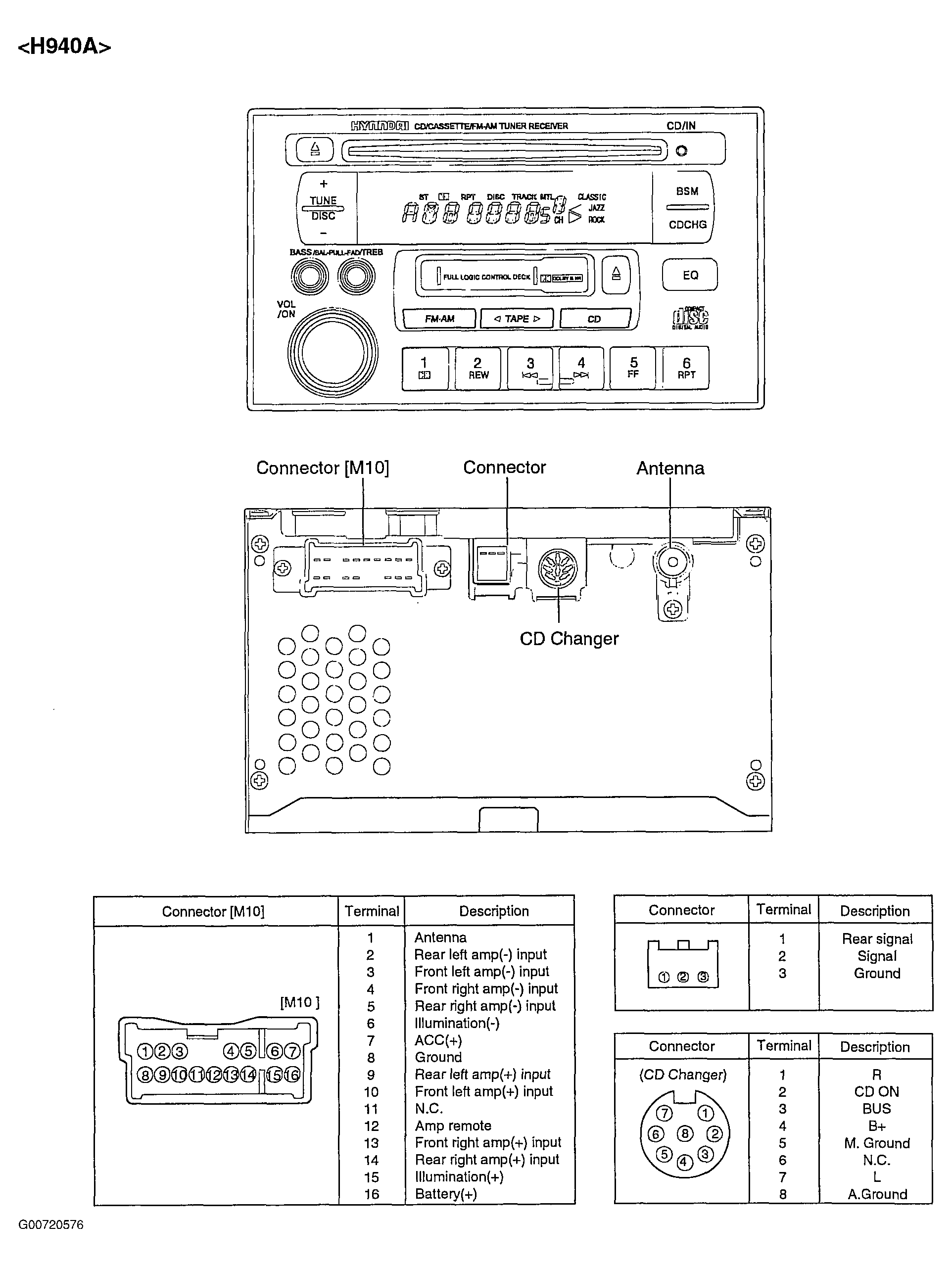

Fig 1: Identifying Audio Unit Control Buttons & Connector Terminals

G00720576

Courtesy of HYUNDAI MOTOR CO.
