| Air Intake Tank-To-Manifold Fasteners |
11-15 (15-20) |
| Auto Tensioner Fixed Bolt |
15-20 (20-27) |

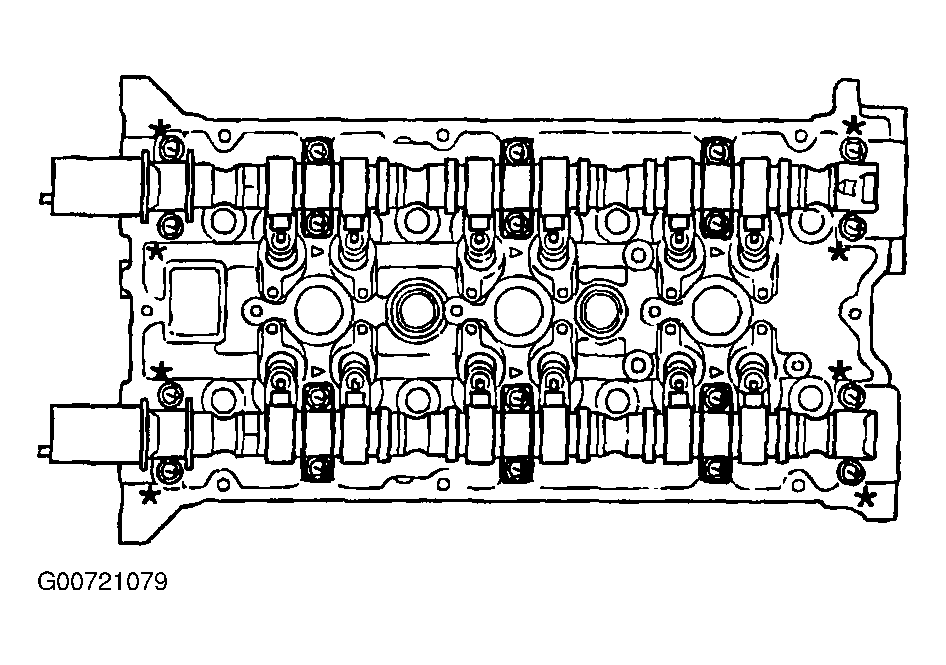

| Camshaft Bearing Cap |
| Inner |
|
| Outer |
14-15 (19-20) |
| Camshaft Sprocket Bolt |
59-74 (80-100) |
| Connecting Rod Nut |
| Step 1 |
25 (34) |
| Step 2 |
Tighten An Additional 90 Degrees |
| Coolant Inlet Fitting Bolt |
13-15 (17-20) |
| Coolant Pump Bolt (Bolt Head Mark "7") |
| M8 |
11-16 (15-22) |
| M10 |
24-37 (33-50) |
| Coolant Temperature Sensor |
15-30 (20-40) |
| Crankshaft Bolt |
133-140 (180-190) |
| Crankshaft Pulley Bolt |
133-140 (180-190) |
| Cylinder Head Bolt (Cold) |
77-85 (105-115) |
| Drive Belt Pulley Bolt |
26-41 (35-55) |
| Drive Belt Tensioner Nut |
24-41 (35-55) |
| Drive Plate & Adapter Plate Bolt |
54-57 (73-77) |
| Engine Hanger Bracket Bolt |
20-28 (27-38) |
| Engine Mounting Fasteners |
| Engine Mounting Bracket Bolt |
44-59 (60-80) |
| Engine Mounting Bracket Nut |
44-59 (60-80) |
| Engine Mounting Insulator Bolt |
66-81 (90-110) |
| Front Roll Stopper Bracket-To-Transaxle Bolt |
44-59 (60-80) |
| Front Roll Stopper Insulator Fasteners |
| Front Roll Stopper Bracket-To-Subframe Bolt |
44-59 (60-80) |
| Rear Roll Stopper Bracket-To-Subframe Bolts |
44-59 (60-80) |
| Rear Roll Stopper Bracket-To-Transaxle Bolts |
37-41 (50-65) |
| Rear Roll Stopper Insulator Bolt & Nut |
37-41 (50-65) |
| Exhaust Components |
| Catalytic Converter-To-Center Exhaust Pipe Nut |
22-30 (30-40) |
| Center Exhaust Pipe-To-Main Muffler Nuts |
22-30 (30-40) |
| Exhaust Manifold-To-Cylinder Head Nut |
30-37 (40-50) |
| Exhaust Manifolt-To-Engine |
30-33 (40-45) |
| Front Exhaust Pipe-To-Catalytic Converter Bolt |
30-44 (40-60) |
| Front Exhaust Pipe-To-Exhaust Manifold Bolt |
22-30 (30-40) |
| Generator Mounting Bracket Bolt (All) |
15-22 (20-30) |
| Intake Manifold-To-Cylinder Head Nuts |
15-17 (20-23) |

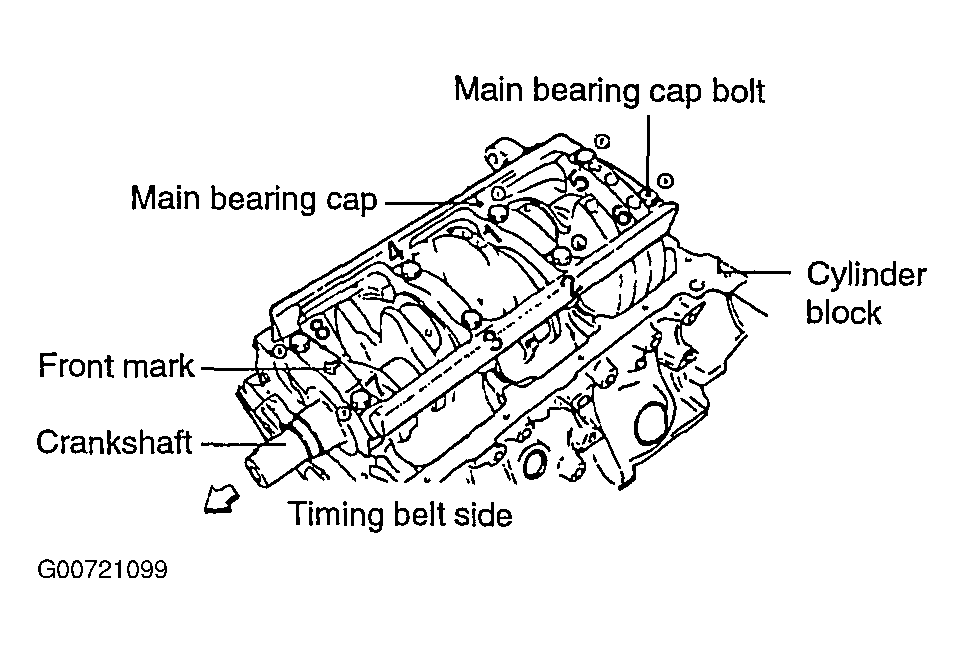

| Main Bearing Bolt |
66-74 (90-100) |
| Oil Drain Plug |
26-33 (35-45) |
| Oil Filter |
9-12 (12-16) |
| Oil Pump Case Bolt |
11-15 (15-20) |
| Oil Pump Relief Valve Plug |
30-37 (40-50) |
| Oil Screen Bolt |
11-16 (15-22) |
| Oxygen Sensor |
30-37 (40-50) |
| Power Steering Bracket-To-Cylinder Head Bolt |
13-15 (17-26) |
| Power Steering Pump-To-Bracket bolt |
13-15 (17-26) |
| Starter-To-Engine Bolt |
20-25 (27-34) |
| Starter-To-Engine Nut |
15-22 (20-30) |
| Surge Tank Stay Bolt |
11-15 (15-20) |
| Throttle Body-To-Surge Tank Bolts |
18-22 (25-30) |
| Timing Belt Cover Bolt |
| M6 |
|
| M8 |
15-20 (20-27) |
| Timing Belt Idler Pulley Bolt |
37-44 (50-60) |
| Timing Belt Tensioner Arm Fixed Bolt |
26-41 (35-55) |
| Timing Belt Tensioner Bolt |
15-20 (20-27) |
| Timing Belt Tensioner Pulley Bolt |
32-41 (43-55) |
| Transaxle Mounting Fasteners |
| Transaxle Mounting Bracket Bolts |
44-59 (60-80) |
| Transaxle Mounting Insulator Bolt |
66-81 (90-110) |
| Transaxle Mounting Sub Bracket Nut |
44-59 (60-80) |

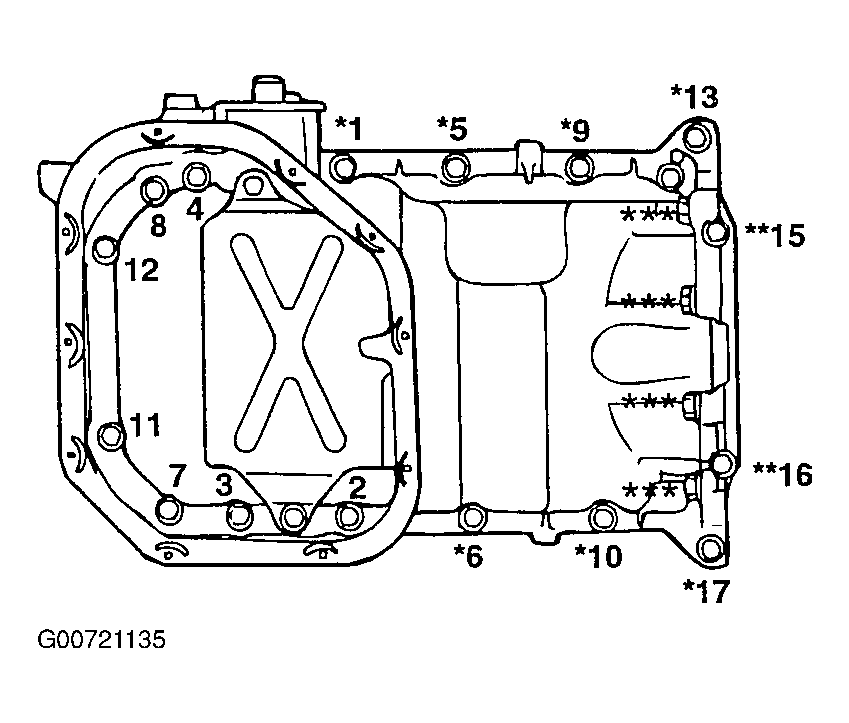

| Upper Oil Pan Bolt |
| 10x380 mm |
22-31 (30-42) |
| 6x18 mm |
|
| 6x161.5 mm |
|
| 6x152.5 mm |
|
| Water Outlet Fitting Bolt |
13-15 (17-20) |
| INCH Lbs. (N.m) |
| Air Cleaner Body Installation Bolt |
71-106 (8-12) |
| Air Cleaner Mounting Bolt |
71-106 (8-12) |
| Crankshaft Position Sensor Wheel Screw |
97-106 (11-12) |
| Cylinder Head Cover Bolt |
44-53 (5-6) |
| Delivery Pipe Installation Bolt |
89-133 (10-15) |
| Fuel Hose Clamp-To-Engine Bolt |
106-133 (12-15) |
| Generator Inlet Pipe Bolt |
106-133 (12-15) |
| Heat Protector-To-Exhaust Manifold |
106-133 (12-15) |
| Lower Oil Pan Bolt |
89-106 (10-12) |
| Main Muffler Hanger Support Bracket Bolt |
89-133 (10-15) |
| Oil Level Guide-To-Engine |
106-133 (12-15) |
| Oil Pressure Switch |
71-133 (8-15) |
| Oil Pump Cover Screw |
71-106 (8-12) |
| Oil Seal Case |
89-106 (10-12) |
| Rear Plate |
89-106 (10-12) |
| Transaxle Mounting Plate |
89-106 (10-12) |
