Crank Shaft: Components

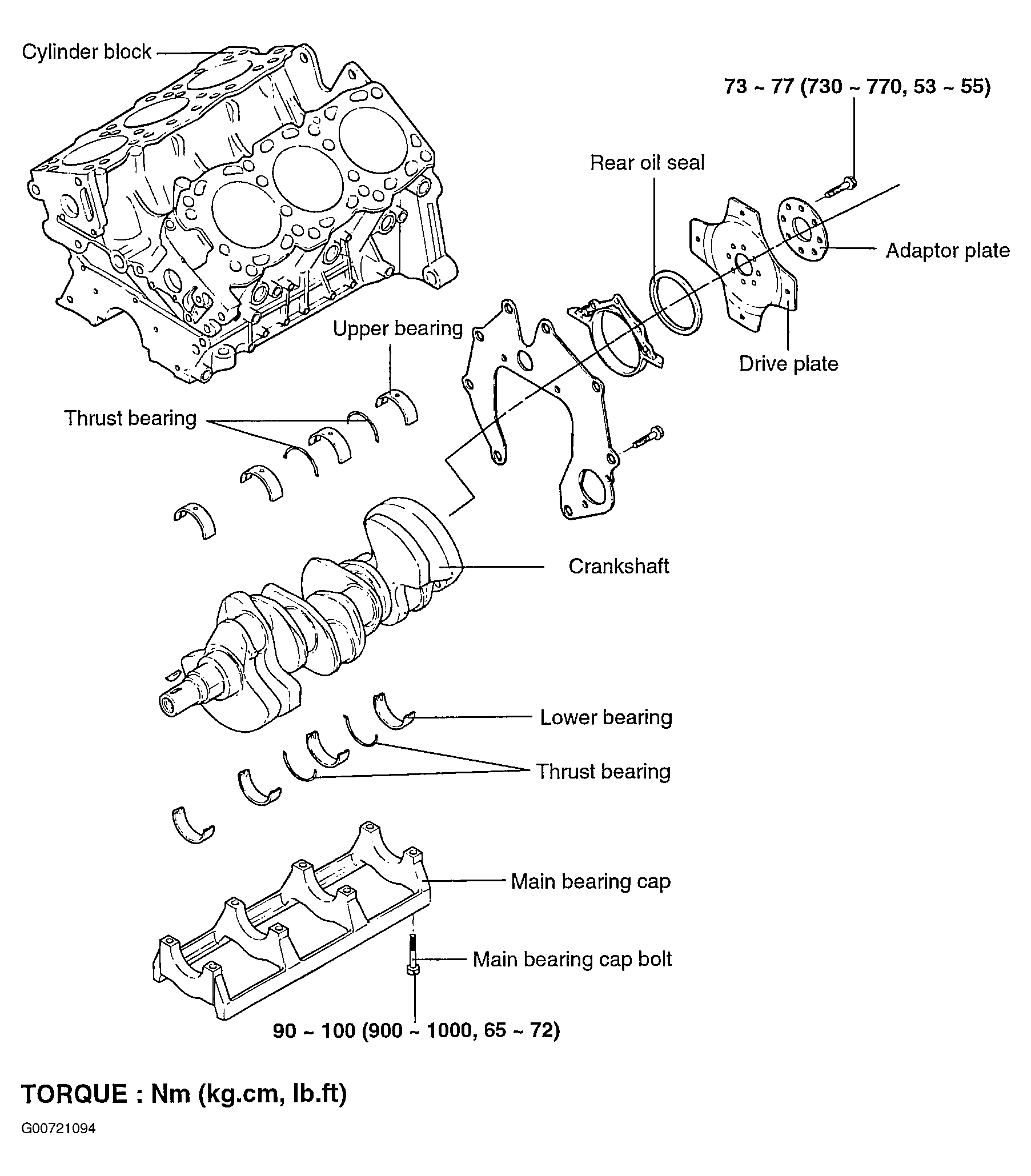

Fig 1: Identifying Crankshaft Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
