Home >> Hyundai >> 2003 >> XG350 Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> Diagnostic Tests >> DTC P0112: Intake Air Temperature Sensor 1 Circuit Low Input >> General Information >> Schematic Diagram

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Schematic Diagram

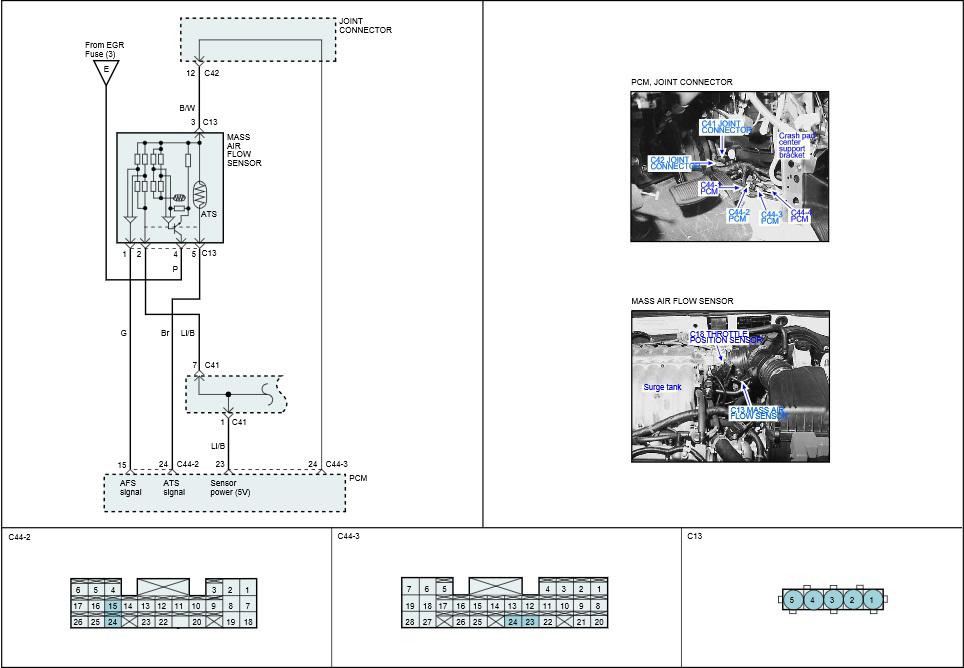

Fig 1: Mass Air Flow Sensor Schematic Diagram
