Monitor Scantool Data

  1. Ignition "OFF"
  2. Connect Scantool and Engine "ON"
  3. Monitor Intake Air Temperature Sensor parameter on Current data.
    TEMPERATURE RESISTANCE AND VOLTAGE SPECIFICATION CHART

    Temperature Resistance Voltage
    20°C (68°F) 2.33~2.97 kΩ 2.5~2.7V
    80°C (176°F) 0.31~0.43 kΩ 0.6~0.8V

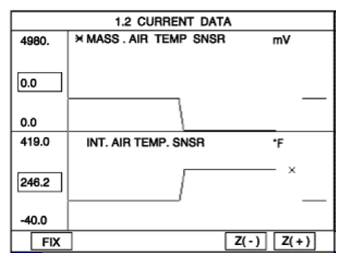

    Fig 1: Monitoring Intake Air Temperature Sensor Parameter On Current Data - Sensor Data At Open
    G07377579

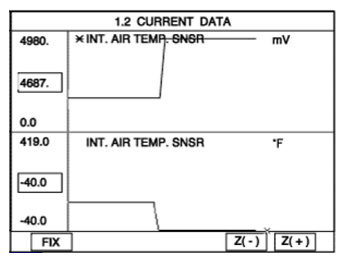

    Fig 2: Monitoring Intake Air Temperature Sensor Parameter On Current Data - Sensor Data At Short
    G07377580
  4. Is Current data displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
