Strut Assembly: Components

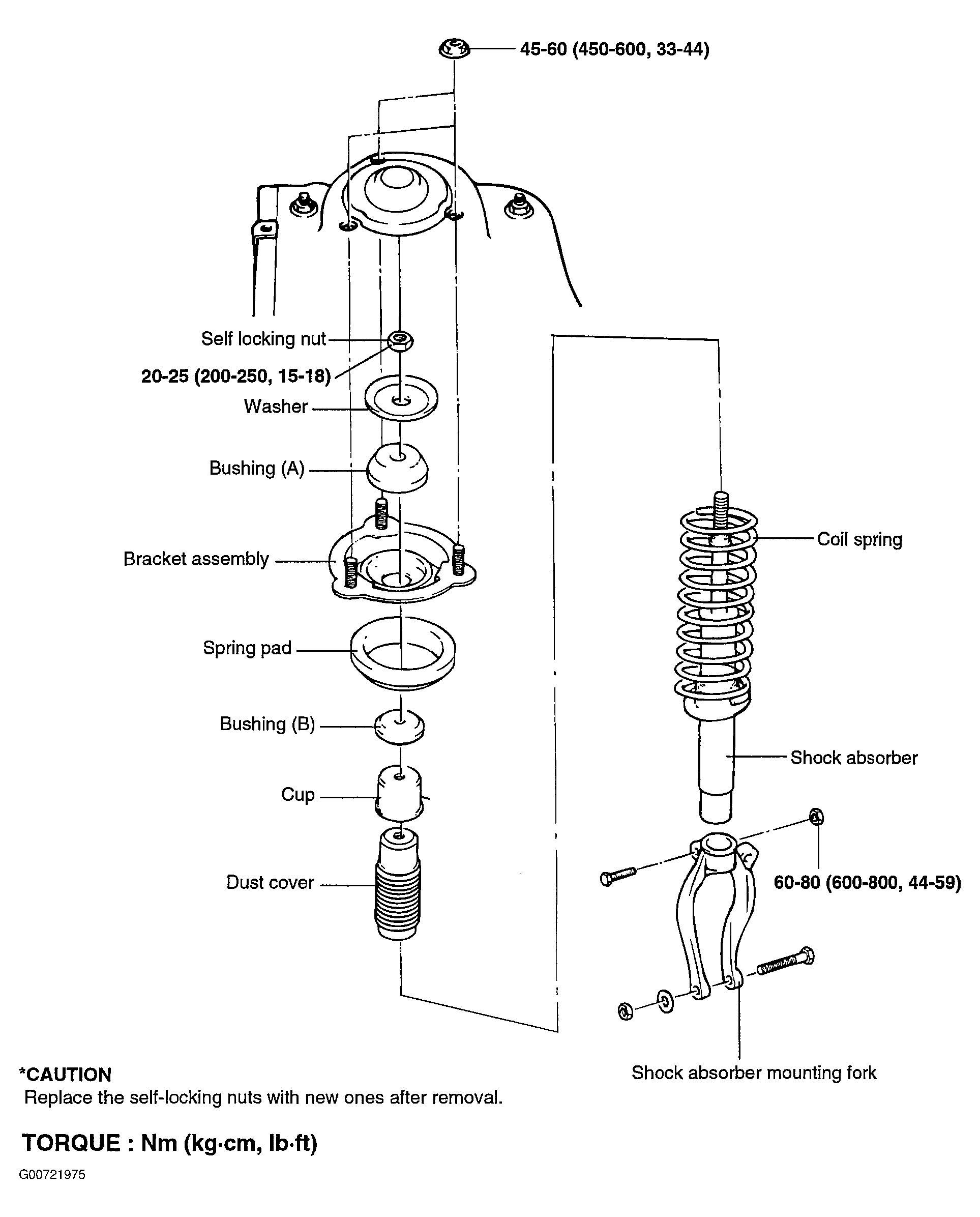

Fig 1: Identifying Strut Assembly Components

G00721975

Courtesy of HYUNDAI MOTOR CO.
