Front Suspension System: Specifications: Notes

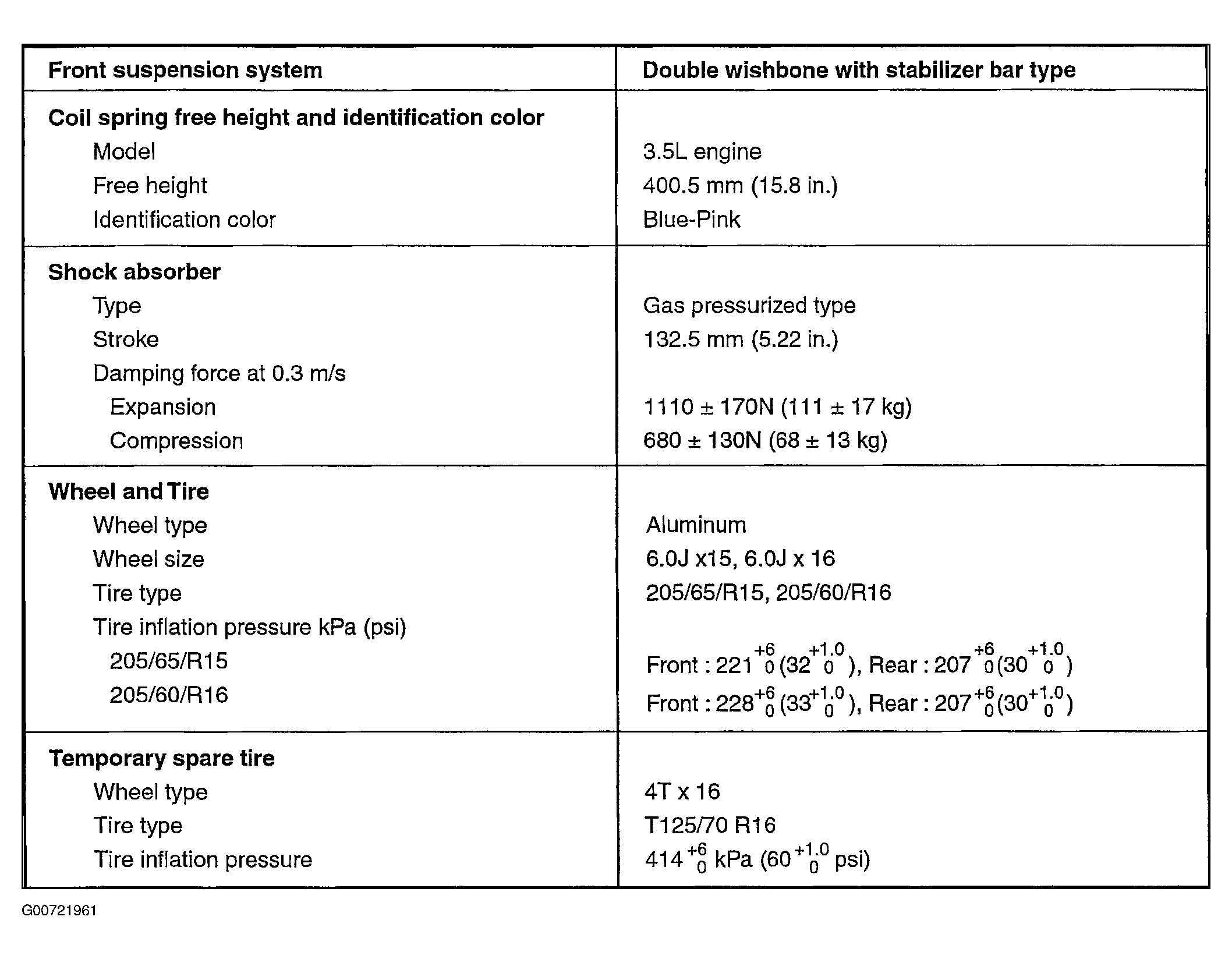

Fig 1: Front Suspension Specifications

G00721961

Courtesy of HYUNDAI MOTOR CO.
