Inspection Procedure 11

Fig 1: Inspection Procedure 11 (1 Of 2)
G00722150Courtesy of HYUNDAI MOTOR CO.

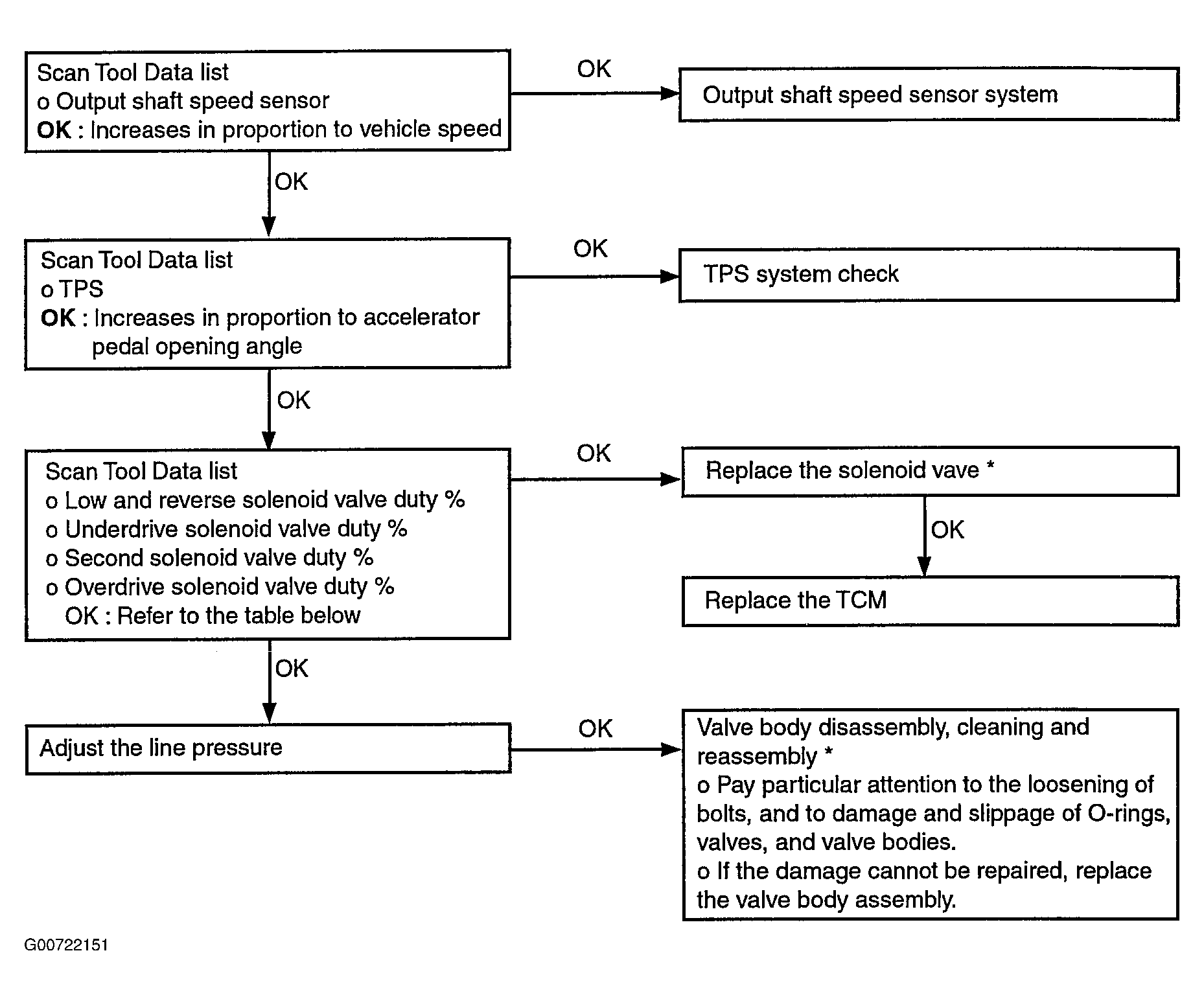

Fig 2: Inspection Procedure 11 (2 Of 2)
G00722151Courtesy of HYUNDAI MOTOR CO.
