Inspection Procedure 13

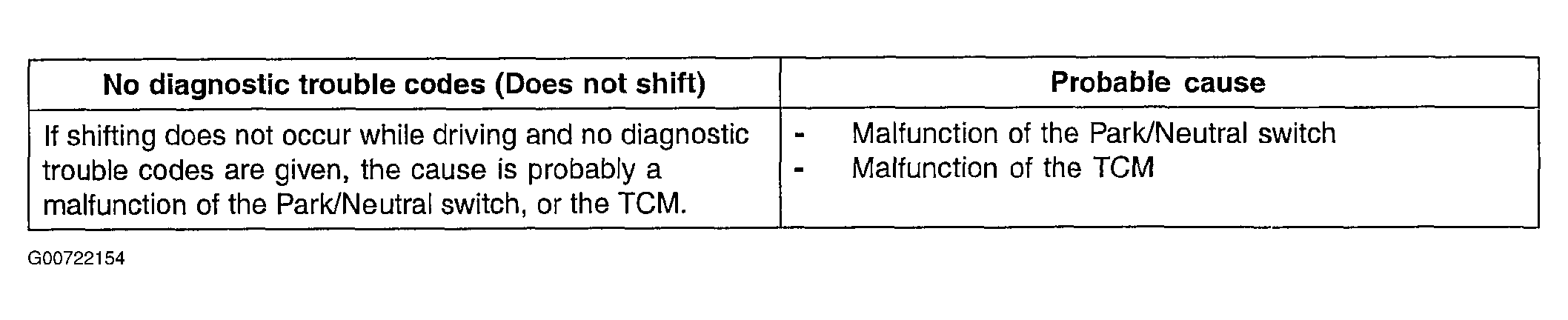

Fig 1: Inspection Procedure 13 (1 Of 2)
G00722154Courtesy of HYUNDAI MOTOR CO.

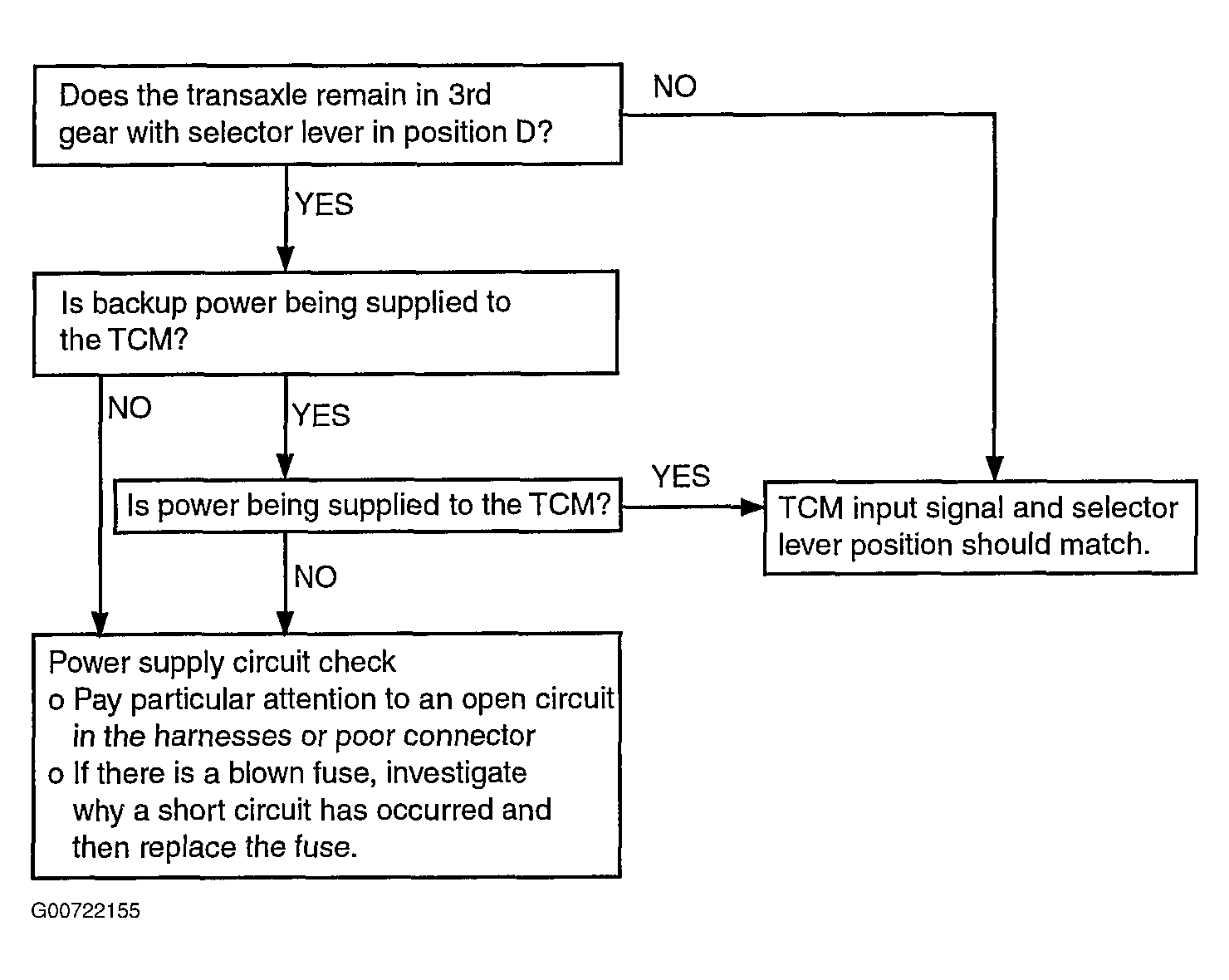

Fig 2: Inspection Procedure 13 (2 Of 2)
G00722155Courtesy of HYUNDAI MOTOR CO.
