Inspection Procedure 14

Fig 1: Inspection Procedure 14 (1 Of 2)
G00722156Courtesy of HYUNDAI MOTOR CO.

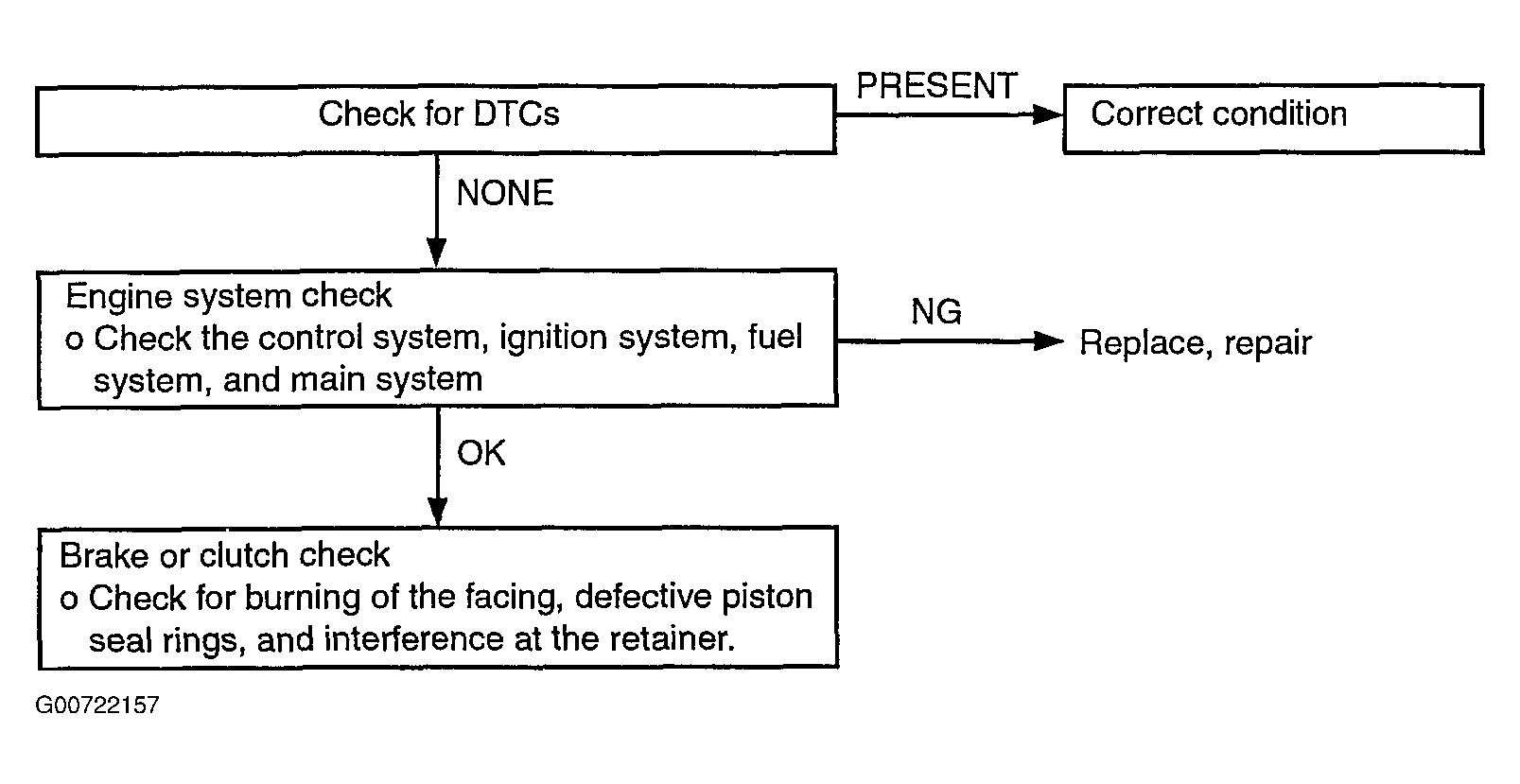

Fig 2: Inspection Procedure 14 (2 Of 2)
G00722157Courtesy of HYUNDAI MOTOR CO.
