Circuit Diagram

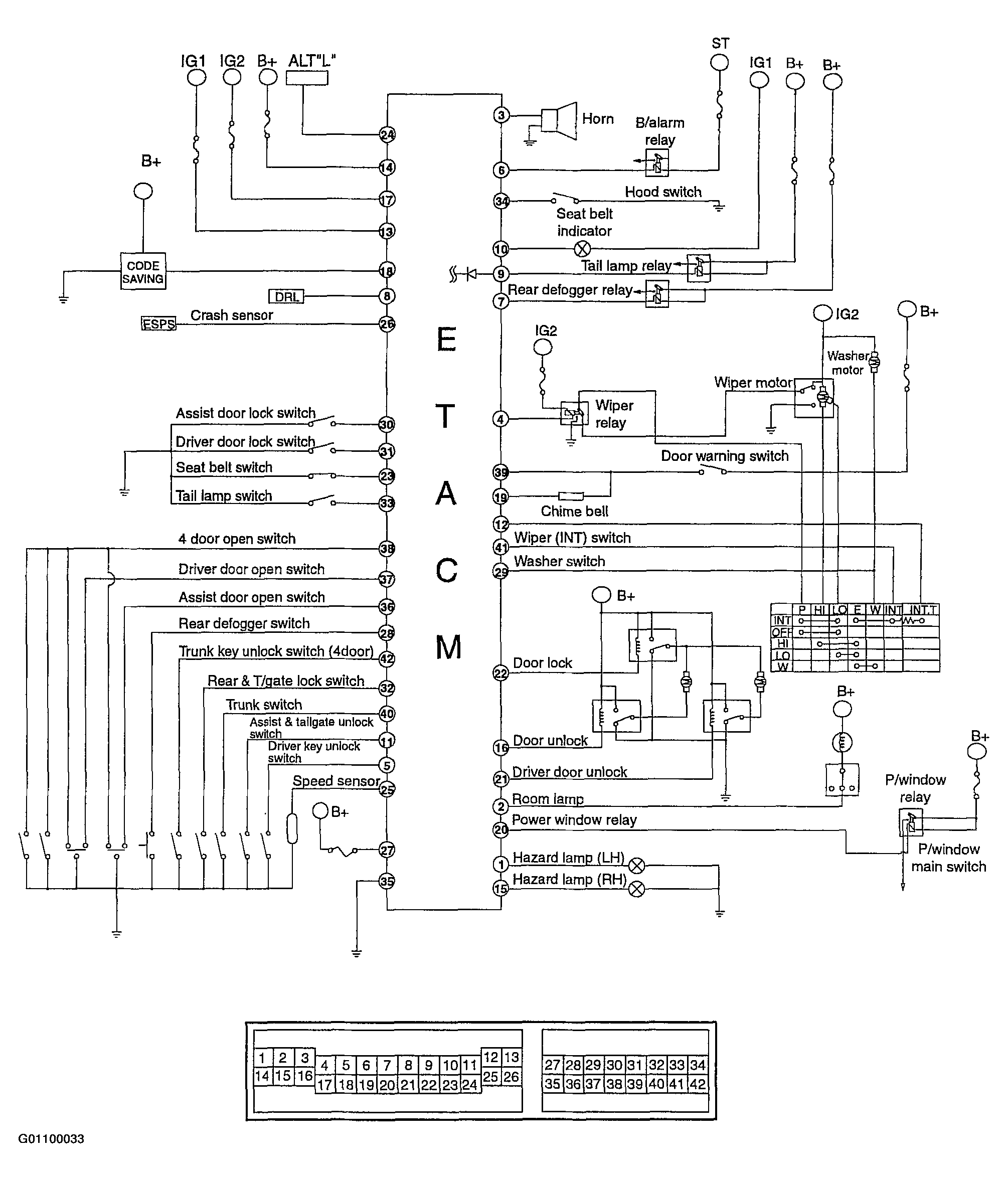

Fig 1: ETACS Circuit Diagram & Connector Terminal Identification
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
