Schematic Diagram

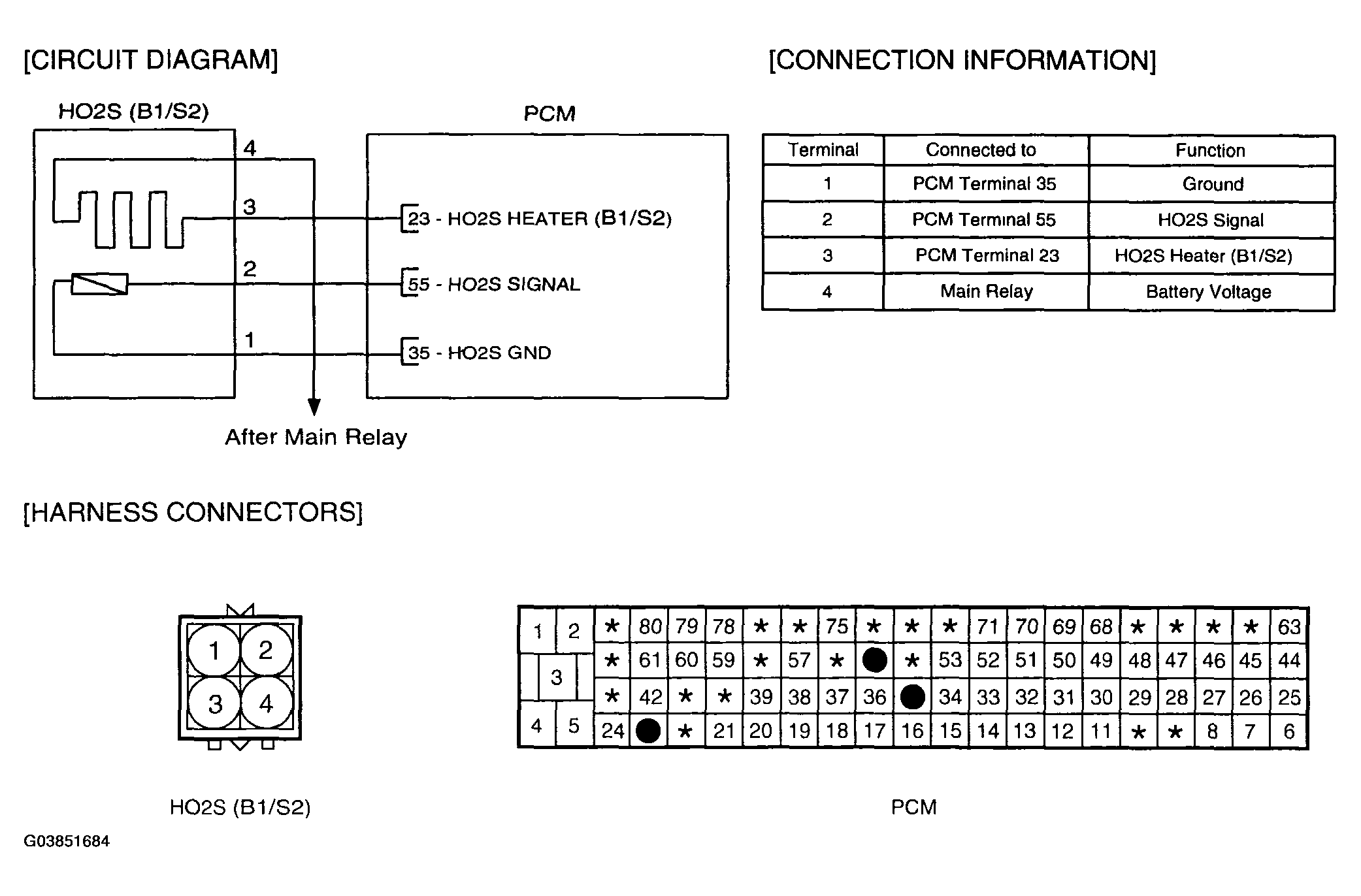

Fig 1: Schematic Diagram - DTC P0036 O2 Sensor Heater Control Circuit (Bank 1/Sensor 2)
G03851684Courtesy of HYUNDAI MOTOR CO.
