Signal Circuit Inspection

Check for short to ground in harness
1. Ignition "OFF"
2. Disconnect Acceleration sensor connector and PCM connector.
3. Ignition "ON" & Engine "OFF"
4. Measure resistance between terminal 2 and 3 of sensor harness connector.
  Specification: infinite

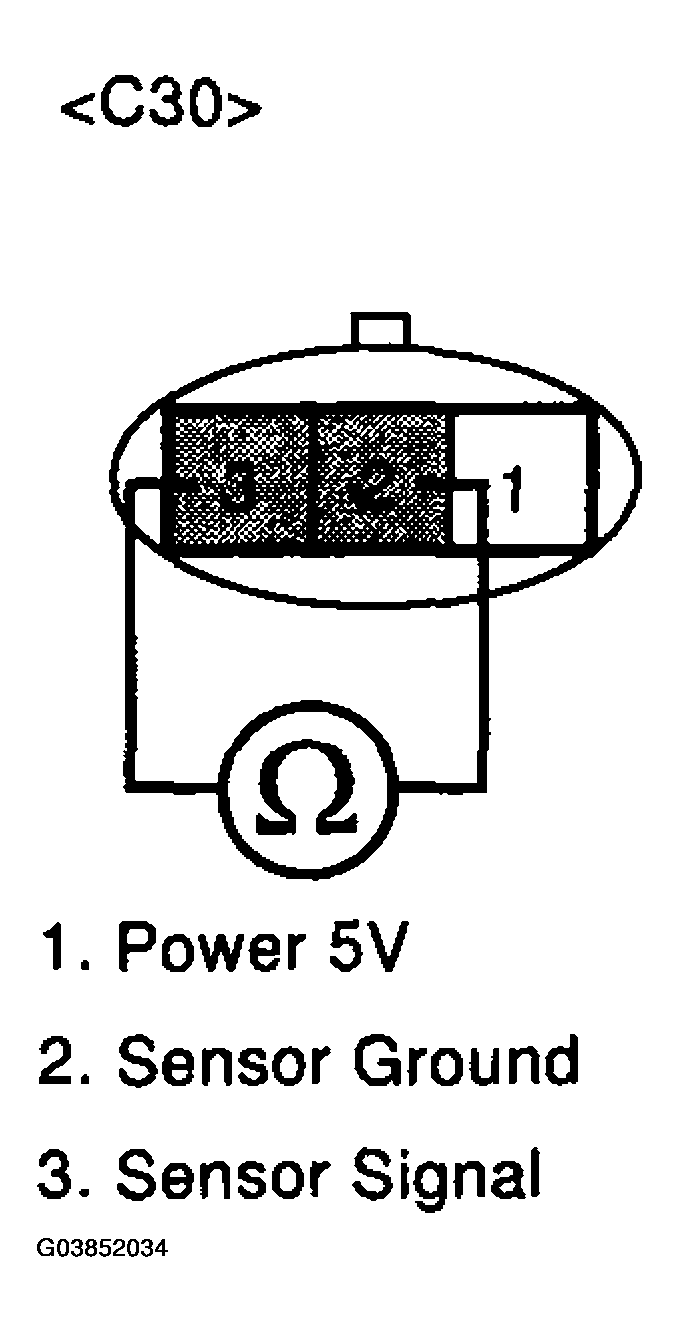

  Fig 1: Measuring Resistance Between Terminal 2 And 3 Of Sensor Harness Connector
  Courtesy of HYUNDAI MOTOR CO.
5. Is measure resistance within Specification?
  YES
  - Substitute with a known-good Acceleration sensor and check for proper operation. If the problem is corrected, replace Acceleration sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Open circuit or short circuit to chassis ground between Acceleration sensor harness connector and signal circuit.
  - Open circuit between Acceleration sensor harness connector and PCM harness connector.
  - Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NOTE:
  In case, when acceleration sensor connector is disconnected, the voltage at terminal 3 is 0V.
  - Possible cause: Open or short circuit in harness between terminal 60 of PCM and terminal 3 of acceleration sensor or PCM
