Removal & Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the 2 screws and 2 bolts holding the driver's crash pad lower panel.
    Fig 1: Removing Lower Crash Panel
    G01100038Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the hood release cable and the data link connector from beneath the driver's crash pad lower panel.

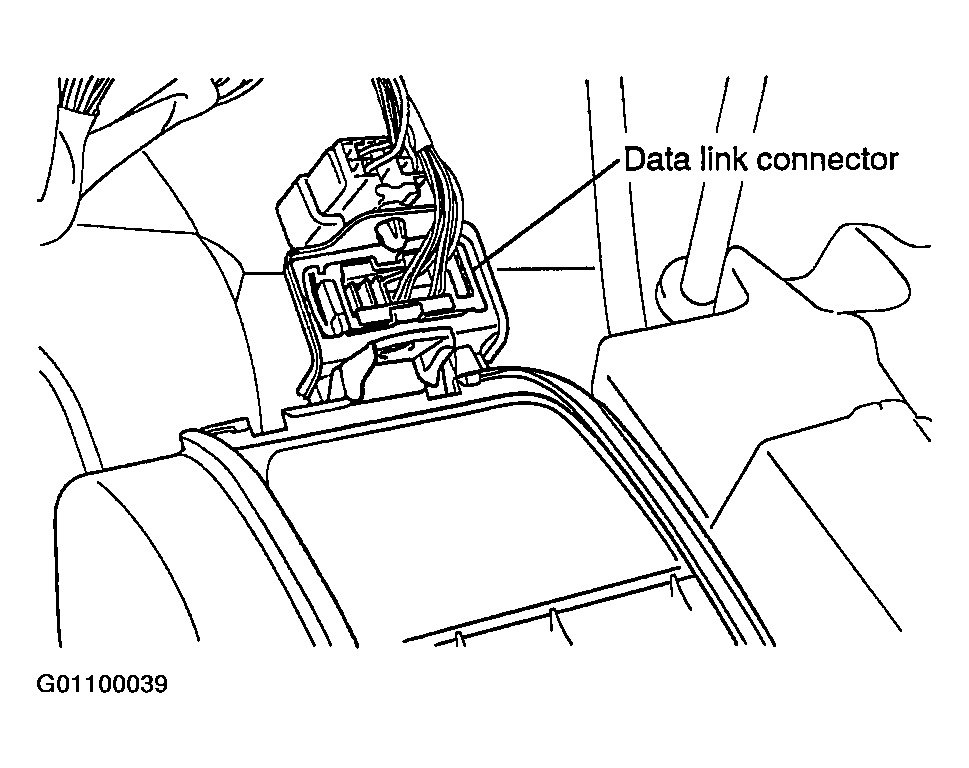

    Fig 2: Removing Data Link Connector
    G01100039Courtesy of HYUNDAI MOTOR CO.
  4. Remove the ETACS module from the bracket after removing bolts.

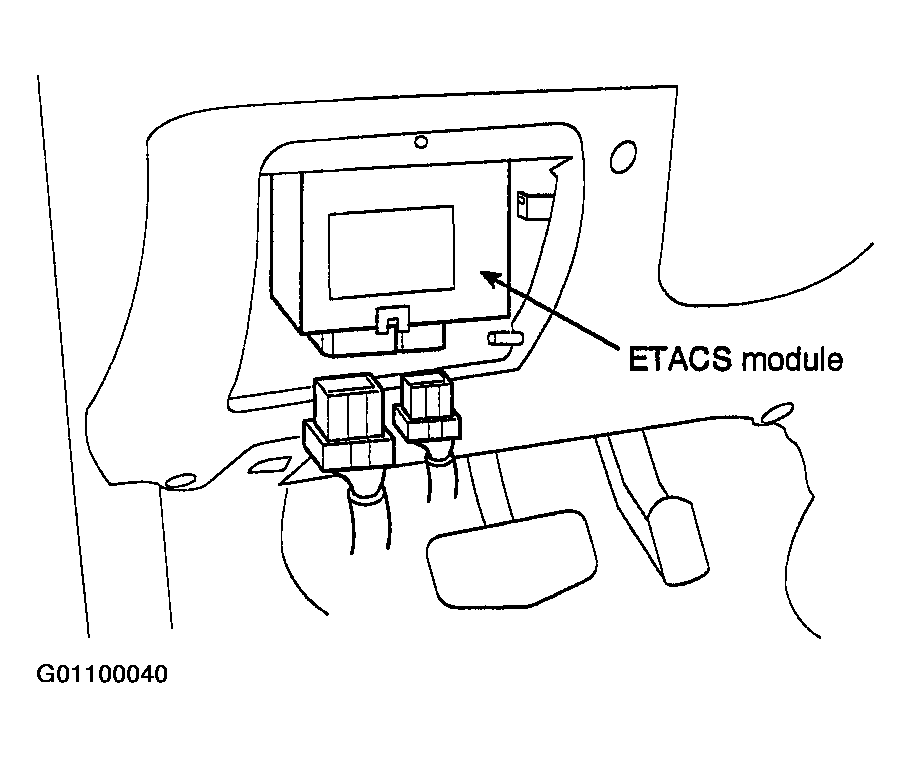

    Fig 3: Removing ETACS Module
    G01100040Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
