Power Window

  1. No windows operate from the main switch on the driver's door.
    Fig 1: All Windows Inoperative From Drivers Door Switch Flow Chart
    G01099945Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate. See Fig 2 .
  3. Passenger's side window does not operate.

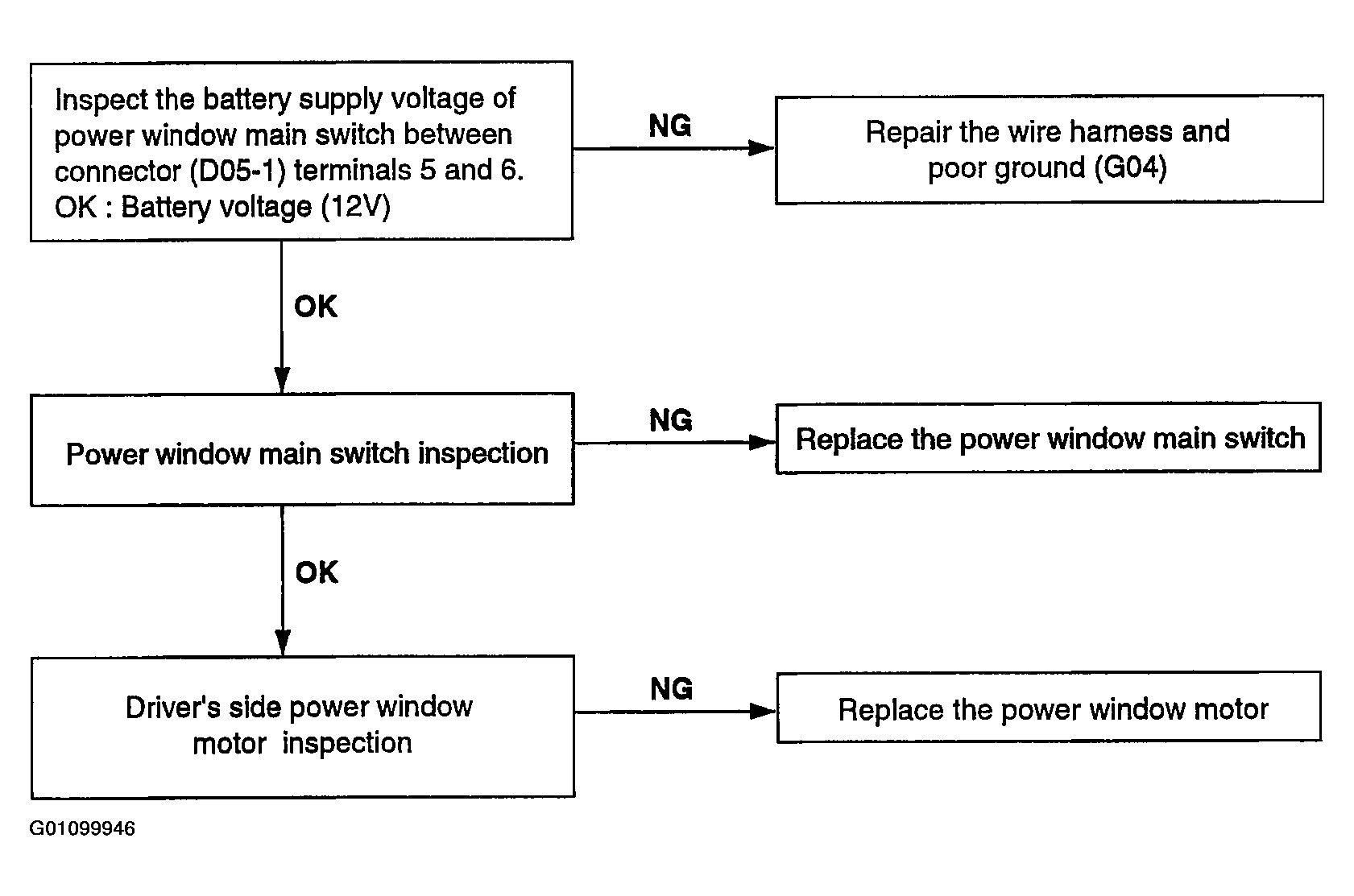

Fig 2: Driver's Window Inoperative Flow Chart
G01099946Courtesy of HYUNDAI MOTOR CO.

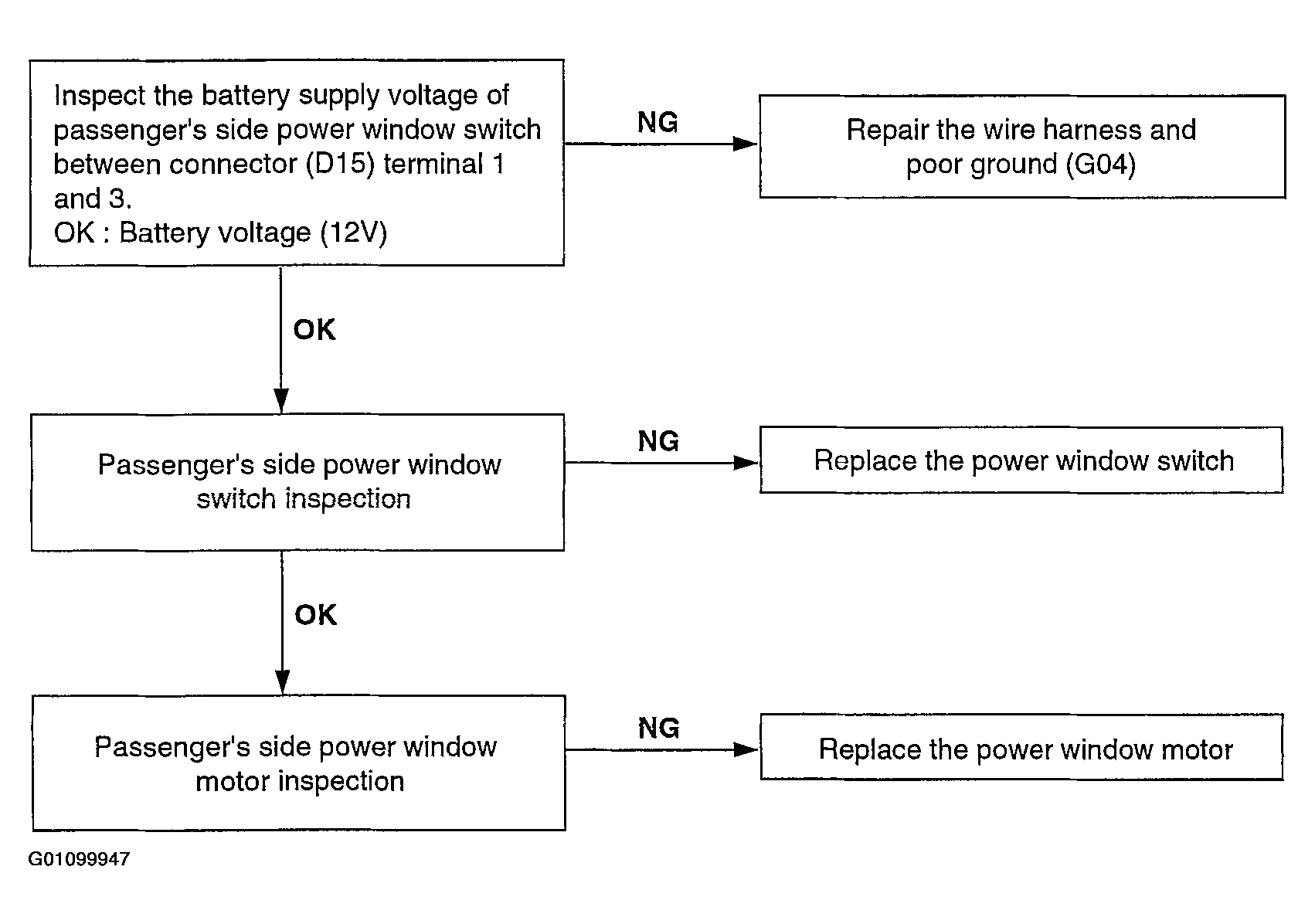

Fig 3: Passenger's Window Inoperative Flow Chart
G01099947Courtesy of HYUNDAI MOTOR CO.
