Signal Wave Form & Data

When checking TPS wave form, it is strongly recommended to examine wave form with MAP sensor wave form.

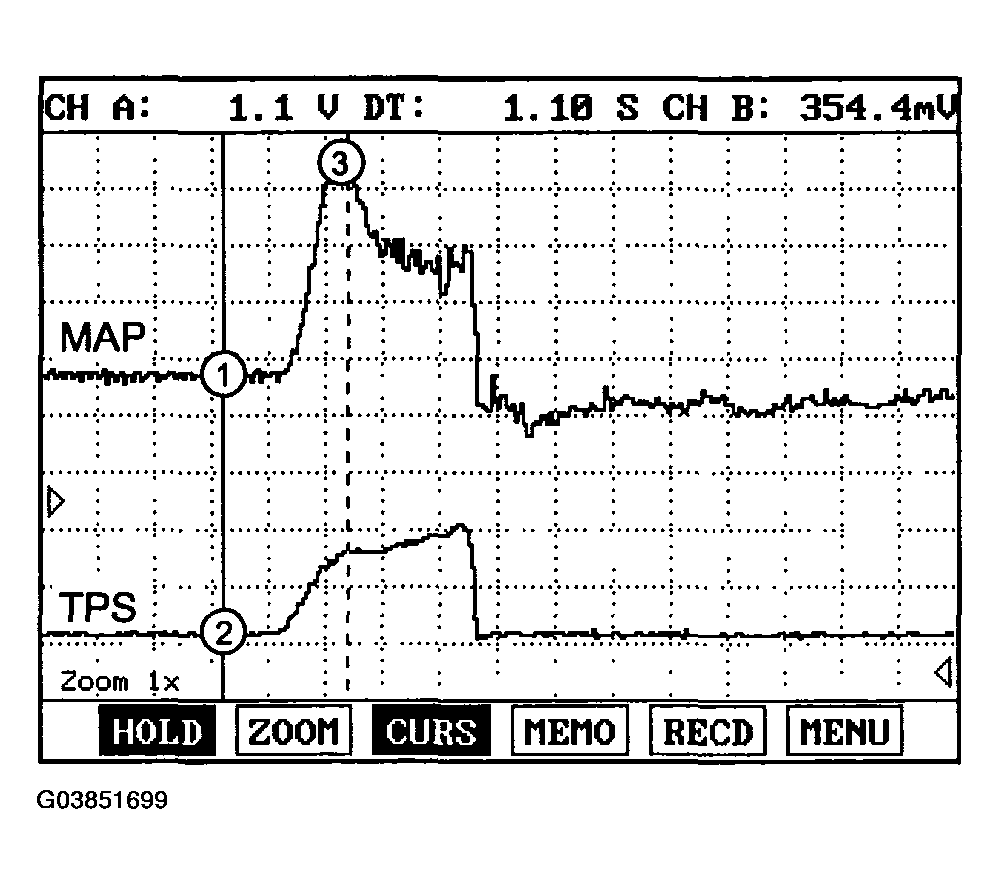

Fig 1: Identifying Signal WAVE FORM

Courtesy of HYUNDAI MOTOR CO.

1. Period (1) is the voltage of MAP in idling and 0.8~1.2V, and there must be a little fluctuation in wave form.
2. The voltage in Period (2) is 0.3~1.0V in average.
3. Period (3) is in W.O.T and the voltage there is 4.3V, and MAP sensor voltage is about 4.3V.
