Power Circuit Inspection

Checking the circuit of MAP power line is to find whether there is open or short circuit in MAP harness.

Ignition "OFF"
Disconnect MAP sensor connector.
Ignition "ON" & Engine "OFF"
Measure voltage between terminal 2 of sensor harness connector and chassis ground.
Specification: approximately 5V

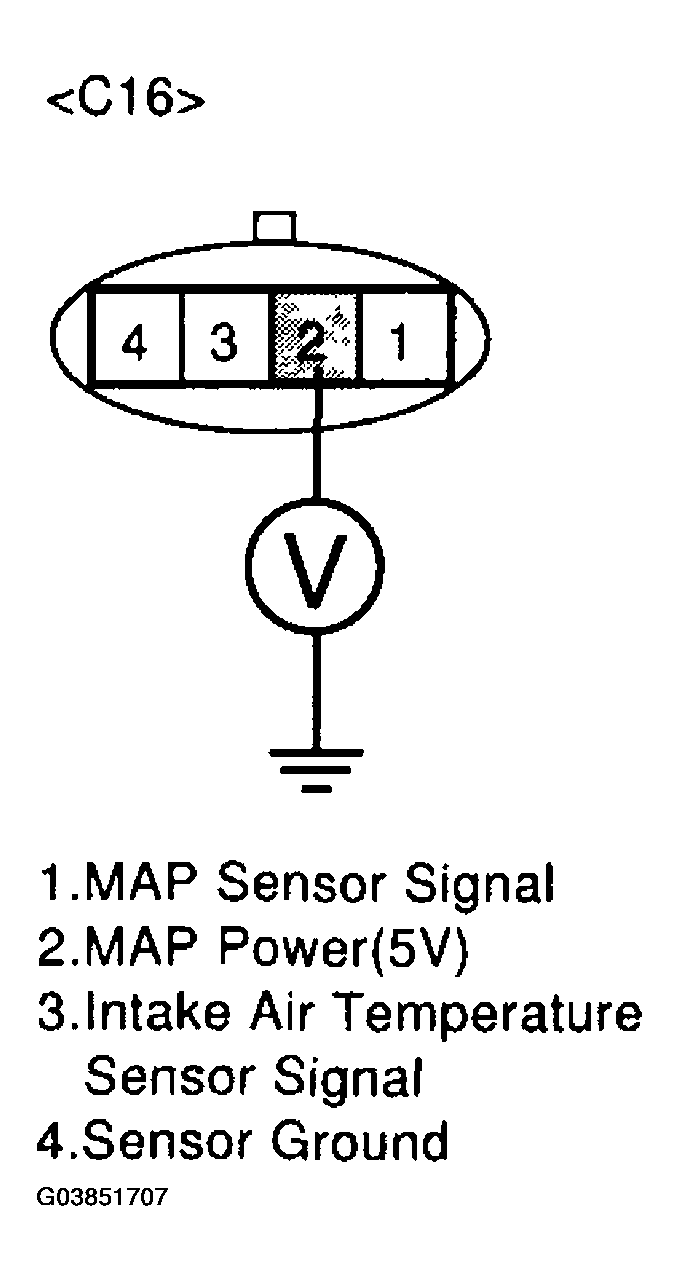

Fig 1: Measuring Voltage Between Terminal 2 Of Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is measure voltage within Specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Open circuit or short circuit to chassis ground between MAP harness connector and reference voltage.
- Open circuit or short circuit to chassis ground between MAP harness connector and ECM connector.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure

NOTE:

In case, when MAP connector is disconnected, the voltage of MAP terminal 2 is 0 V.
- Possible cause: Open or short between terminal 33 of PCM and Terminal 2 of MAP
