Schematic Diagram

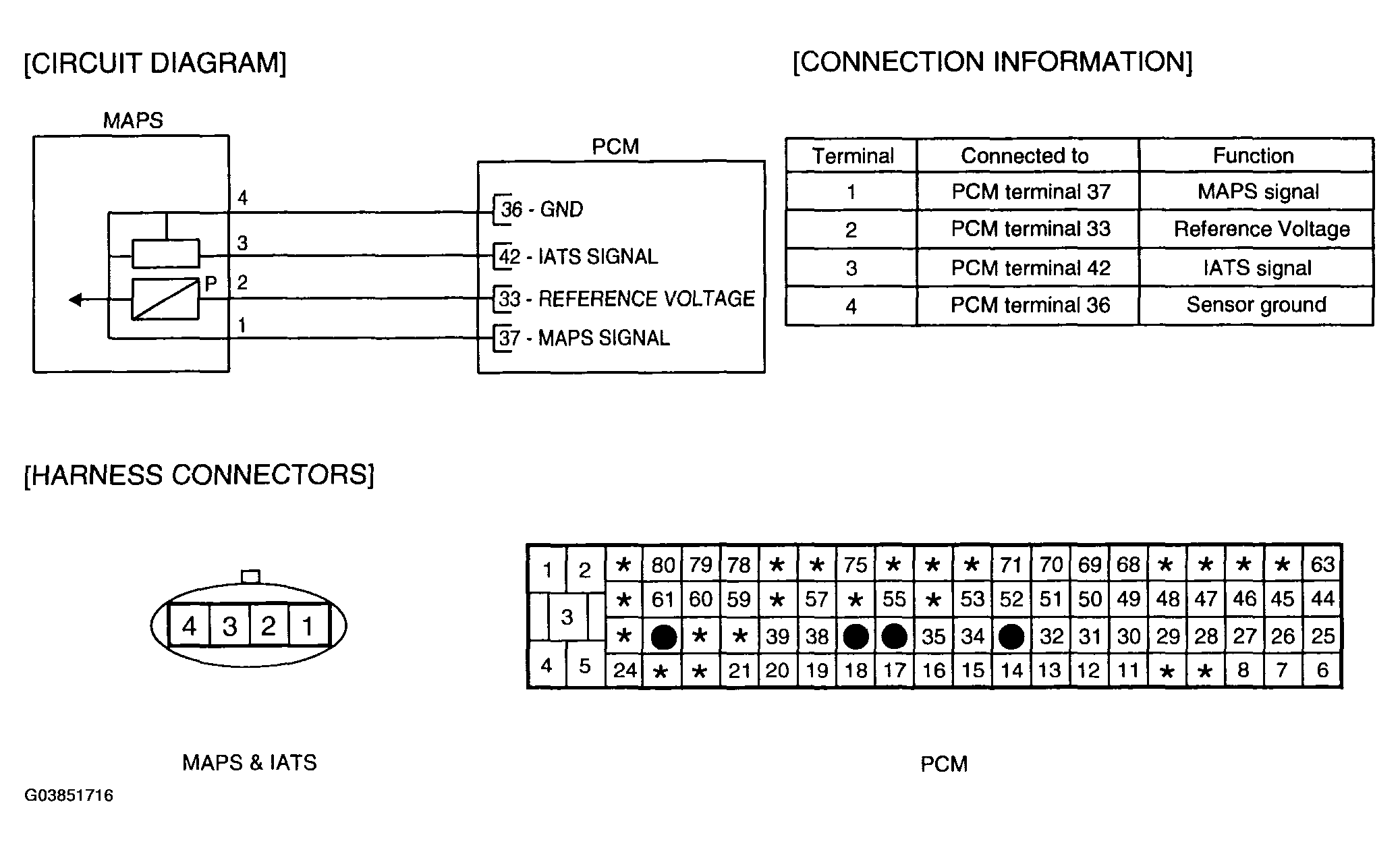

Fig 1: Schematic Diagram - DTC P0111 Intake Air Temperature Sensor 1 Circuit Range/Performance
G03851716Courtesy of HYUNDAI MOTOR CO.
