Ground Circuit Inspection

Ignition "OFF"
Disconnect TPS sensor connector.
Ignition "ON" & Engine "OFF"
Measure voltage or resistance between terminal 2 of sensor harness connector and chassis ground.
Specification: below 0.5V or below 1Ω

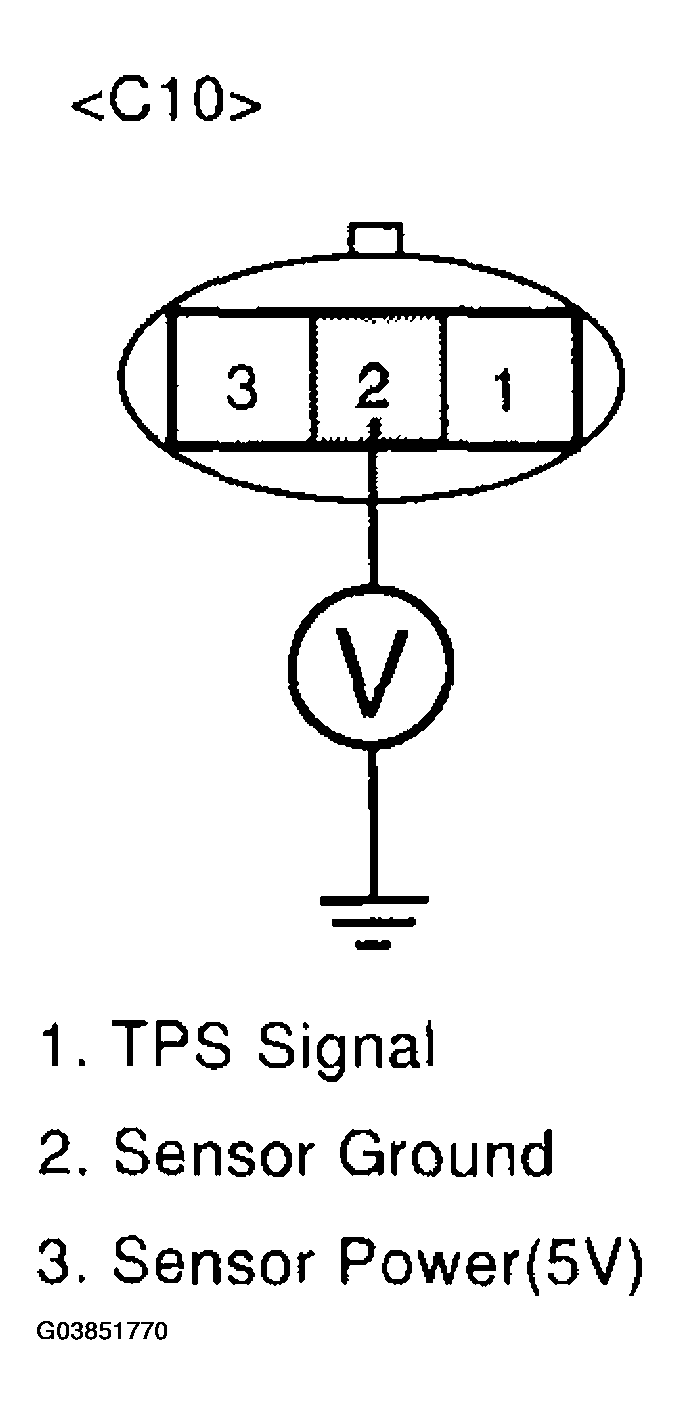

Fig 1: Measuring Voltage Between Terminal 2 Of Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is measure voltage or resistance within Specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Open circuit between TPS harness connector and PCM harness connector.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NOTE:
  In case, when the TPS connector is disconnected, the voltage of TPS terminal 3 is infinite.
  - Possible cause: Open circuit between terminal 17 of PCM and Terminal 3 of TPS
