Engine Control System Diagnosis (1 Of 2)
>>
DTC Troubleshooting Procedures
>>
DTC P0130: O2 Sensor Circuit (Bank1/Sens0R1)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

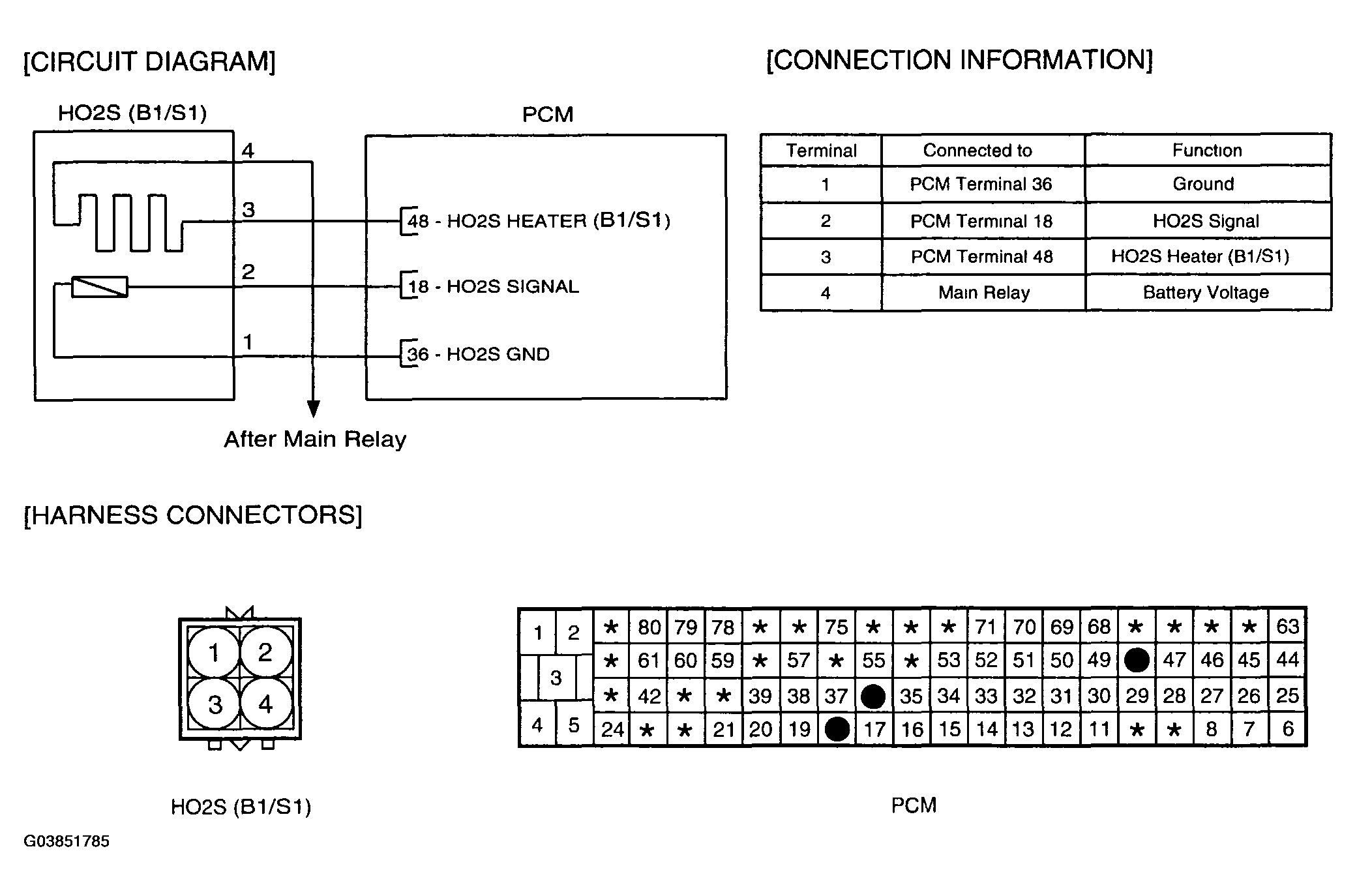

Fig 1: Schematic Diagram - DTC P0130 O2 Sensor Circuit (Bank1/Sensor1)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
