Component Location

NOTE: For additional information regarding fuel filter location, please refer to the following Technical Service Bulletin from Hyundai: 2003 - 2005 ACCENT FUEL FILTER LOCATION - SHOP MANUAL CORRECTION .

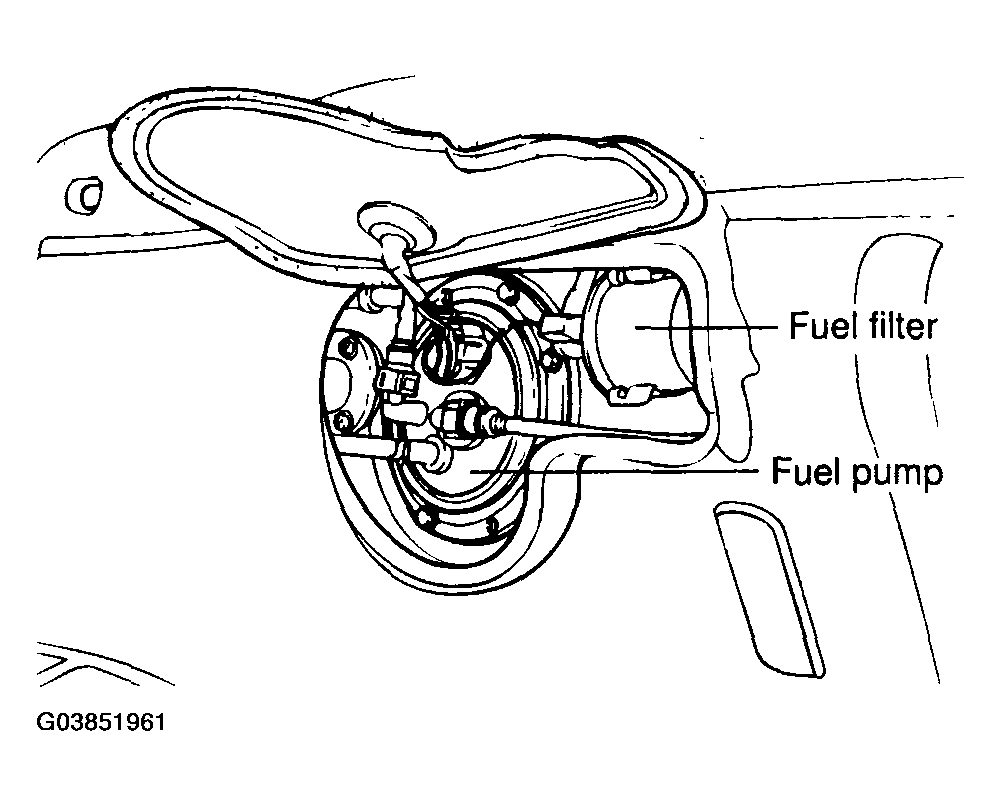

Fig 1: Identifying Fuel Filter And Pump Location
G03851961Courtesy of HYUNDAI MOTOR CO.
