Signal Wave Form & Data

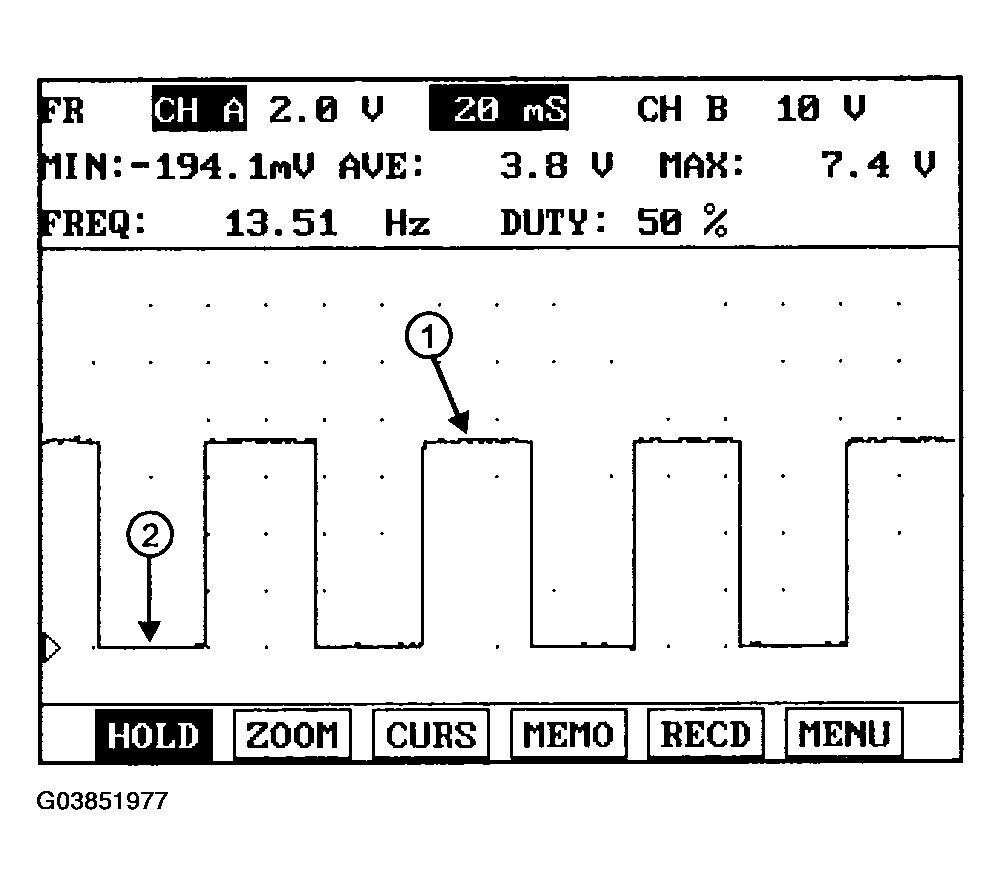

This is the wave form of vehicle sensor when it drives 40Km/h.
Courtesy of HYUNDAI MOTOR CO.
- The voltage at point (1) should be below 0.8V and at point (2) should be above 7V.
- The frequency of vehicle sensor must increase as the RPM increases
