Ground Circuit Inspection

The purpose of checking terminal 2 after disconnecting VSS connector is to check open or short circuit of ground.

1. Ignition "OFF"
2. Disconnect VSS sensor connector.
3. 3 Ignition "ON" & Engine "OFF"
4. Measure voltage or resistance between terminal 1 of sensor harness connector and chassis ground.

   Specification: below 0.5V or below 1Ω

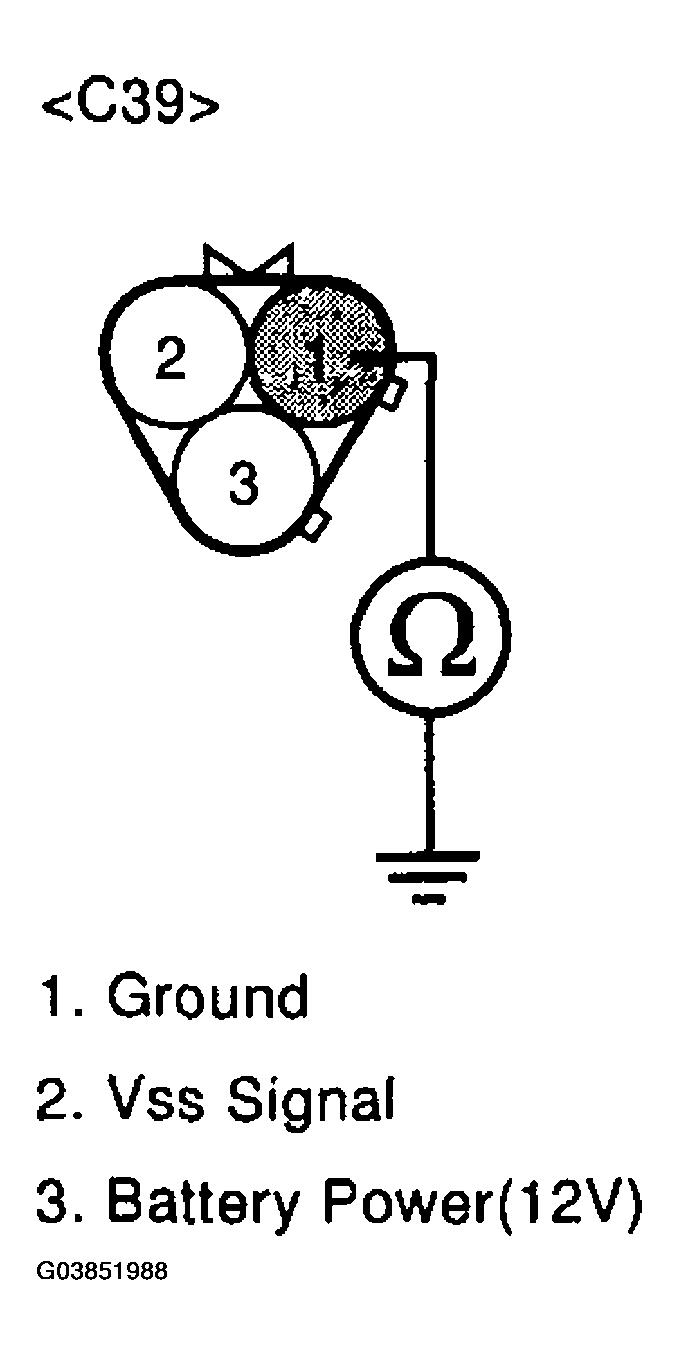

   Fig 1: Measuring Resistance Between Terminal 1 Of Sensor Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR CO.
5. Is measure voltage or resistance within Specification?

   YES

   • Go to "COMPONENT INSPECTION " procedure.

   NO

   • Open circuit between VSS harness connector and Chassis ground.
   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
