Power Circuit Inspection

Check for open in harness
1. Ignition "OFF"
2. Disconnect A/C Relay.
3. Ignition "ON" & Engine "OFF"
4. Measure voltage between terminal 1 and 5 of A/C Relay harness connector and chassis ground.
  Specification: approximately B+

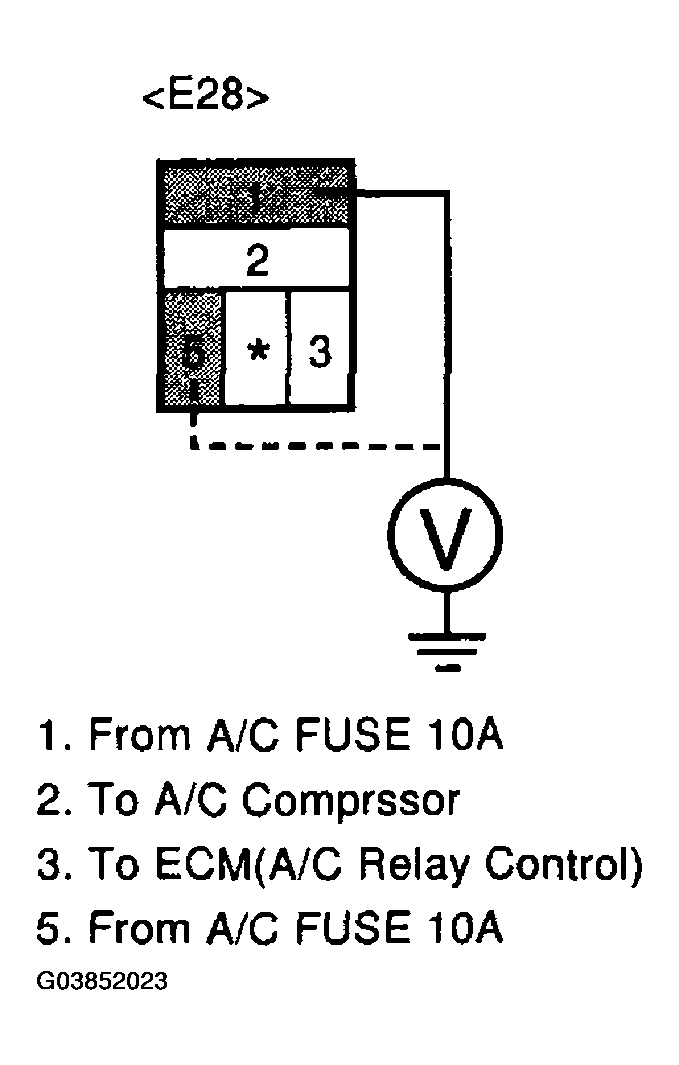

  Fig 1: Measuring Voltage Between Terminal 1 And 5 Of A/C Relay Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
5. Is measure voltage within Specification?
  YES
  - Go to "CONTROL CIRCUIT INSPECTION " procedure.
  NO
  - Open circuit or short circuit to chassis ground between A/C Relay harness connector and A/C FUSE 10A
  - Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
