Signal Wave Form & Data

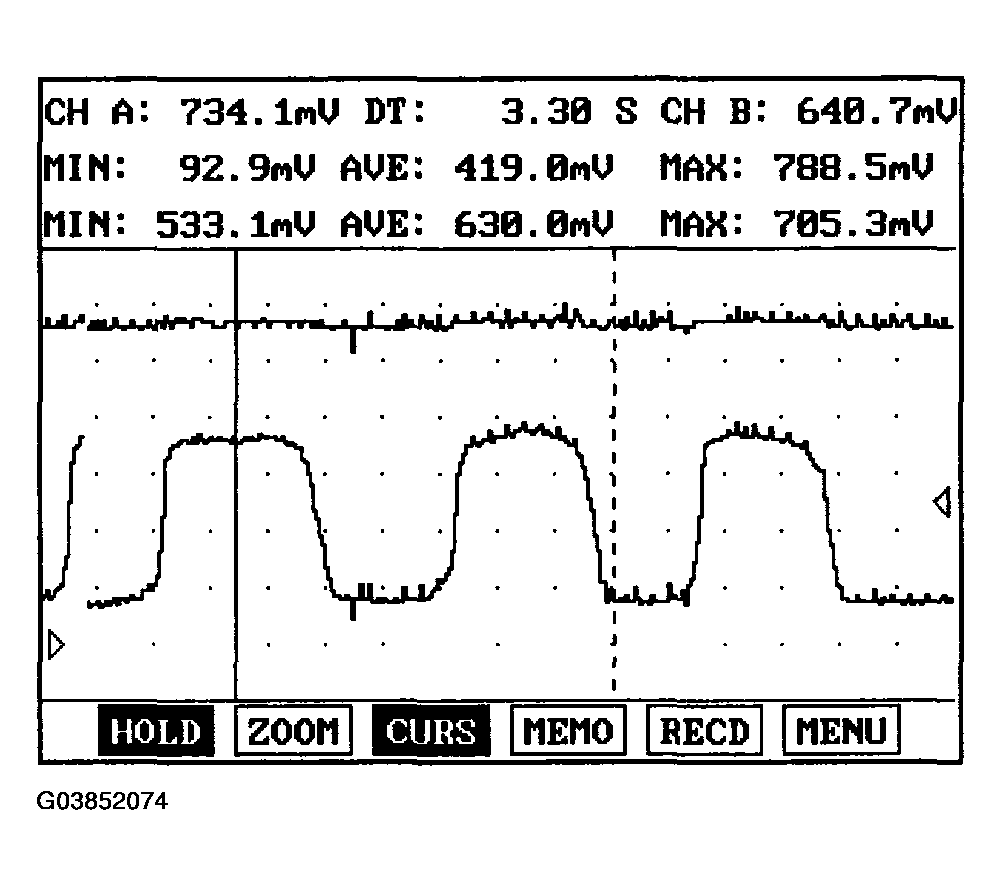

Fig 1: Identifying HO2S Signal WAVE FORM

Courtesy of HYUNDAI MOTOR CO.

The HO2S (B1/S2) shows linear signal voltage because it detects emission gas purified by catalytic converter.
