Control Circuit Inspection

Ignition "OFF"
Disconnect DM-TL connector.
Ignition "ON" & Engine "OFF"
Measure voltage between terminal 2 of DM-TL harness connector and chassis ground.
Specification: approximately 3.7V

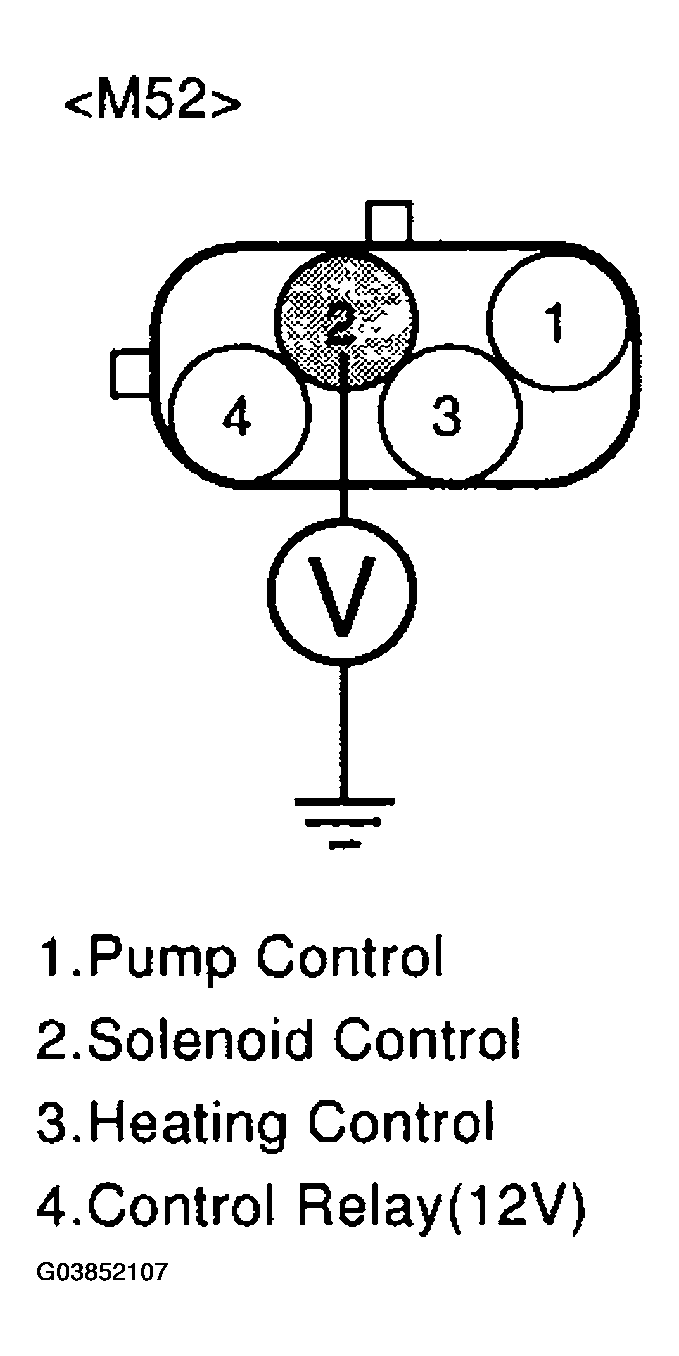

Fig 1: Measuring Voltage Between Terminal 2 Of DM-TL Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is measure voltage within Specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Open or short in Solenoid Control harness.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
