Automatic Transaxle Shift Control: Components

WARNING: This page is about a different variant/trim than selected.

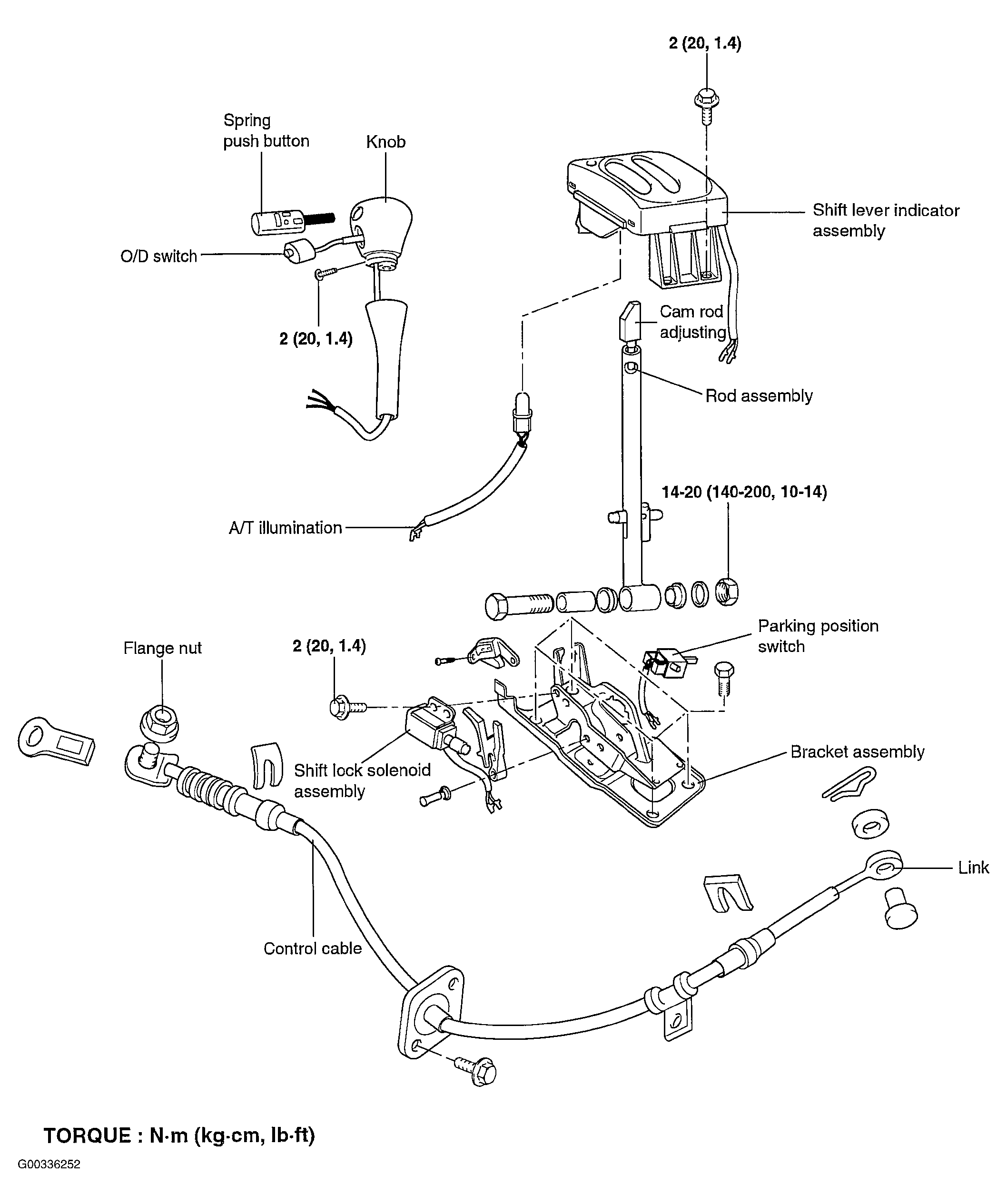

Fig 1: Identifying Automatic Transaxle Shift Control Components
G00336252Courtesy of HYUNDAI MOTOR CO.
