Automatic Transaxle Shift Control: Removal

WARNING: This page is about a different variant/trim than selected.

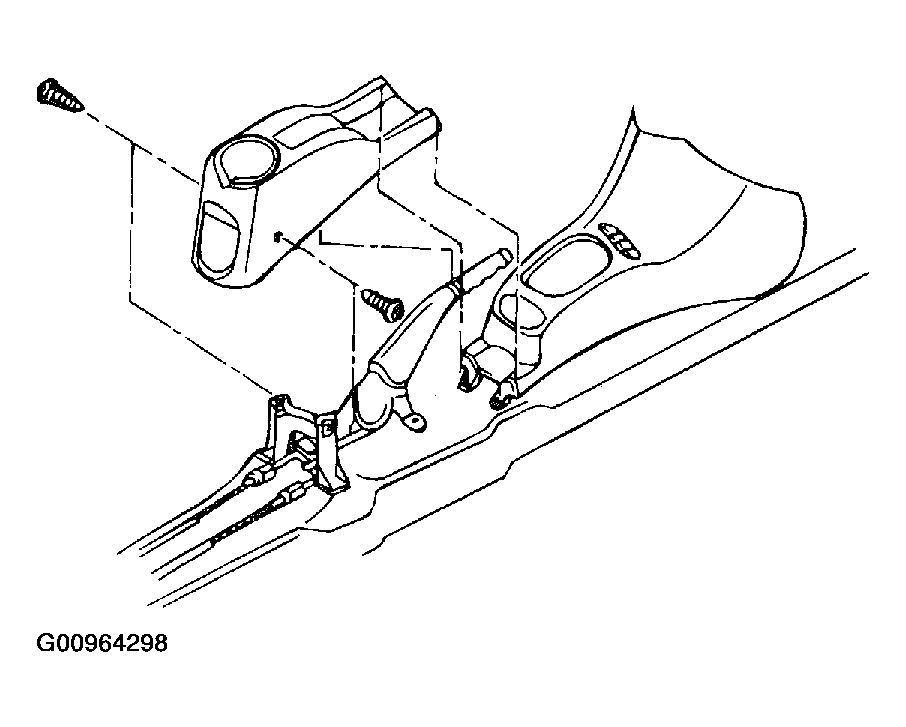

Remove the rear console.

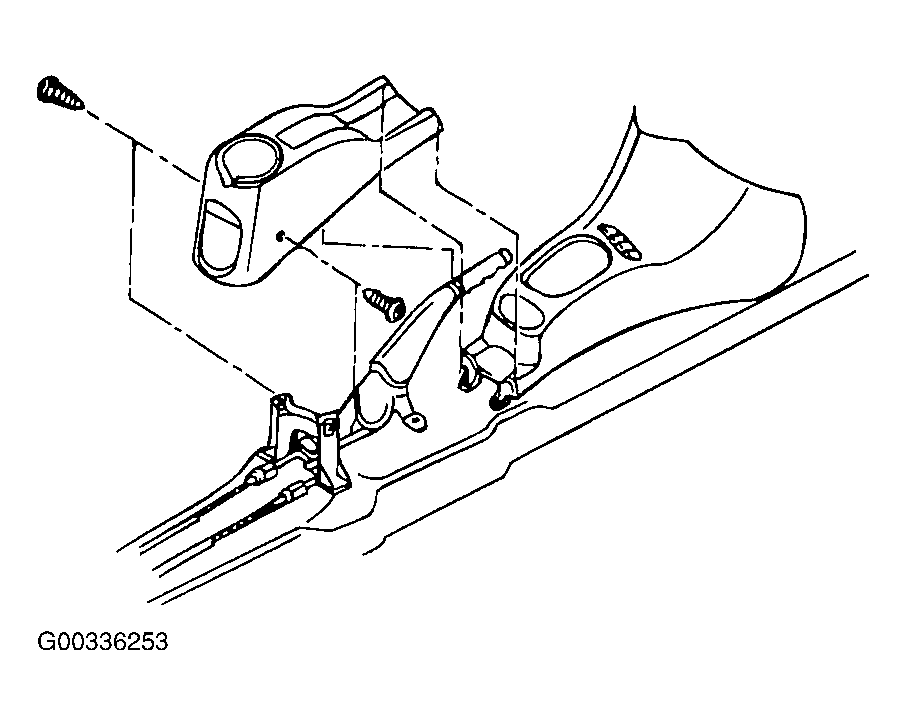

Fig 1: Removing Rear Console
Courtesy of HYUNDAI MOTOR CO.

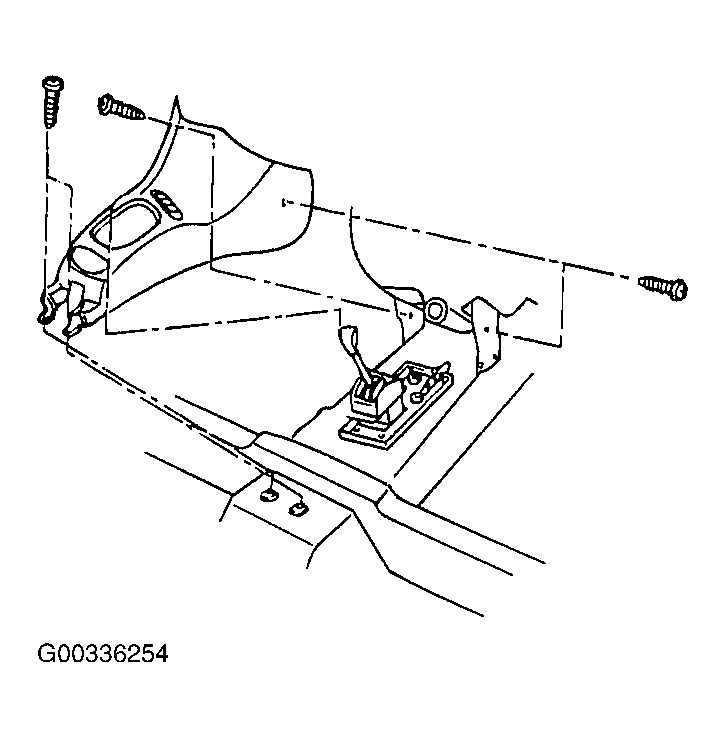

Remove the front console.

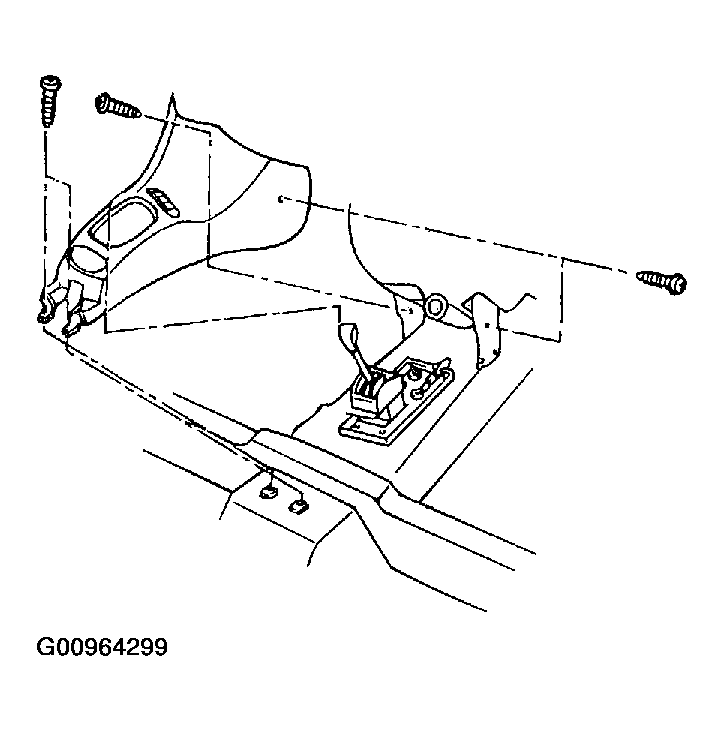

Fig 2: Removing Front Console
Courtesy of HYUNDAI MOTOR CO.
Remove the knob installation screws.
Disconnect the overdrive switch connector, remove the 3 connector pins from connector with small driver, and then remove selector knob assembly.

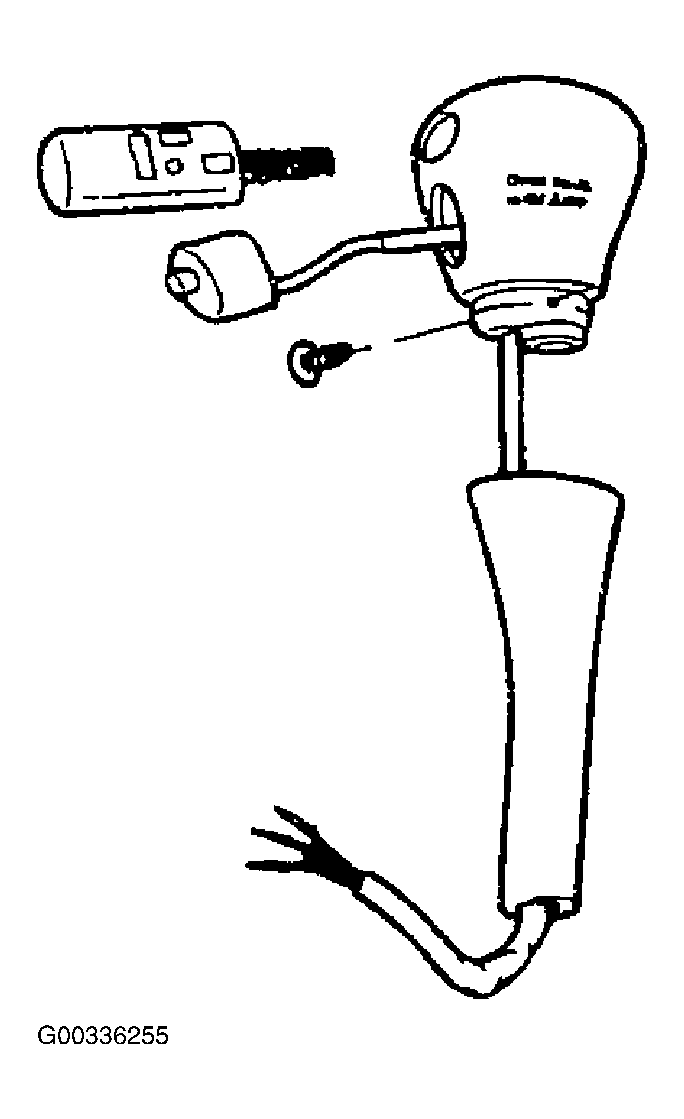

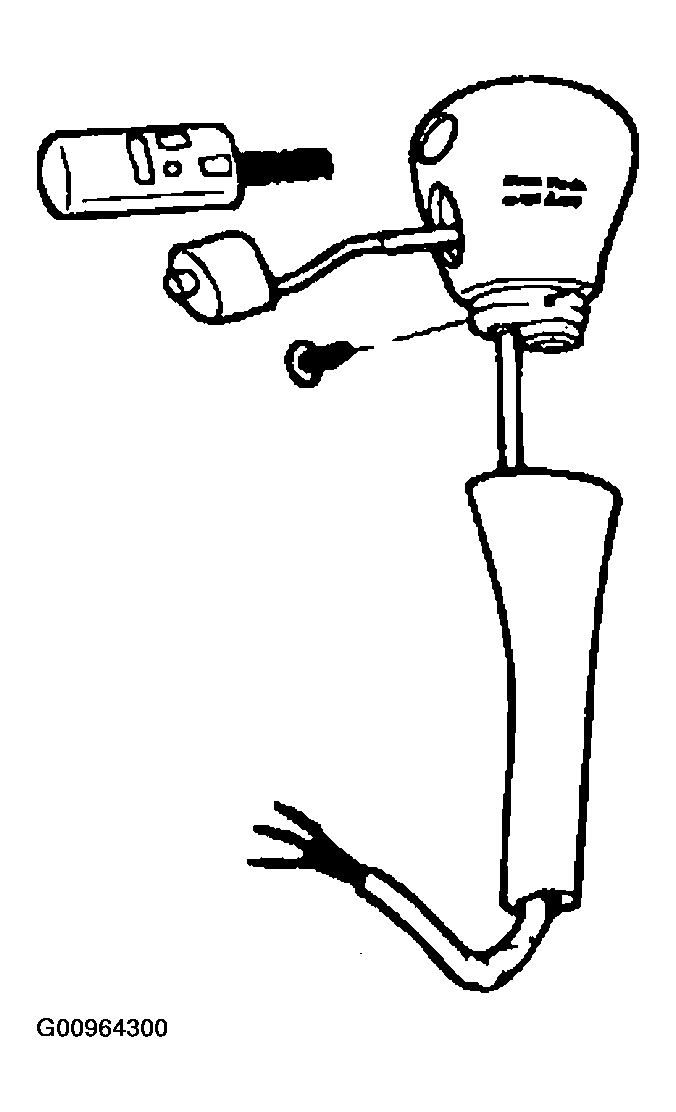

Fig 3: Disconnecting Overdrive Switch Connector & Selector Knob Assembly
Courtesy of HYUNDAI MOTOR CO.

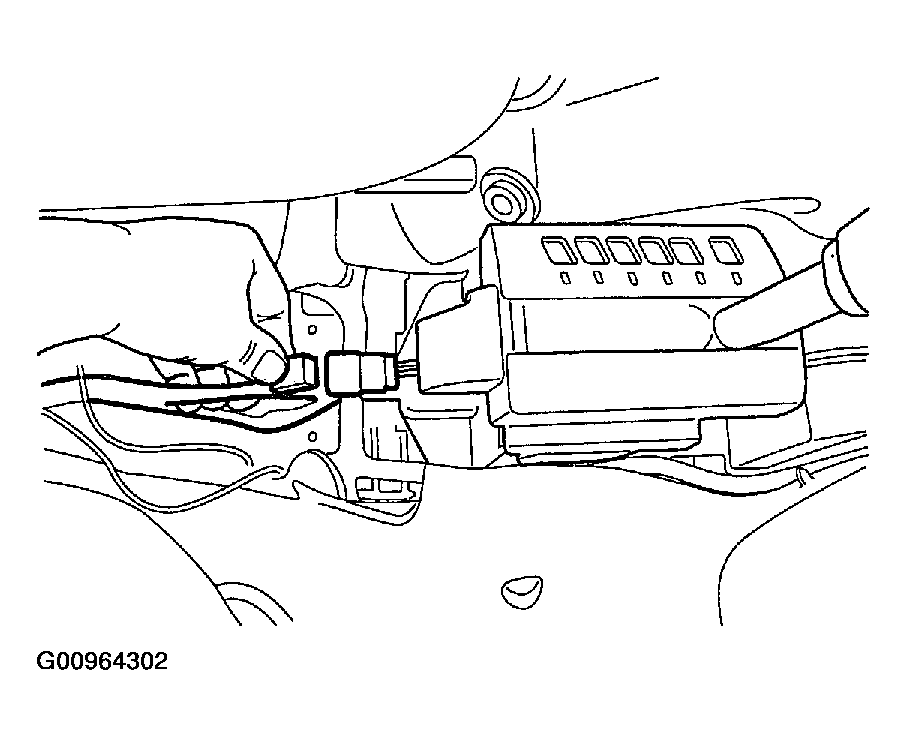

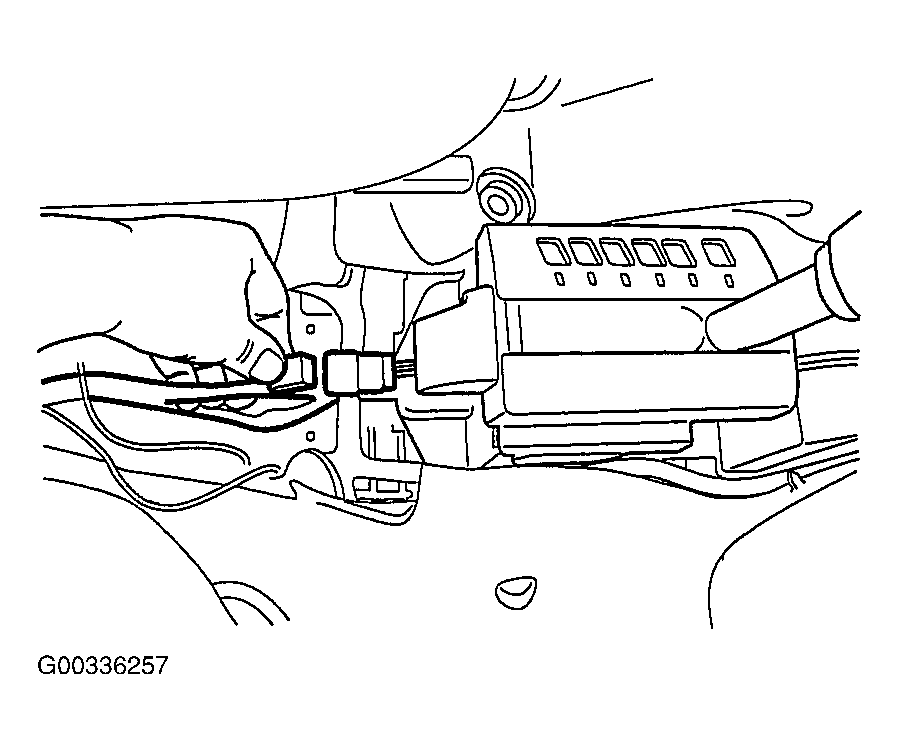

Disconnect the position indicator light connector.

Fig 4: Disconnecting Position Indicator Light Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever indicator assembly.

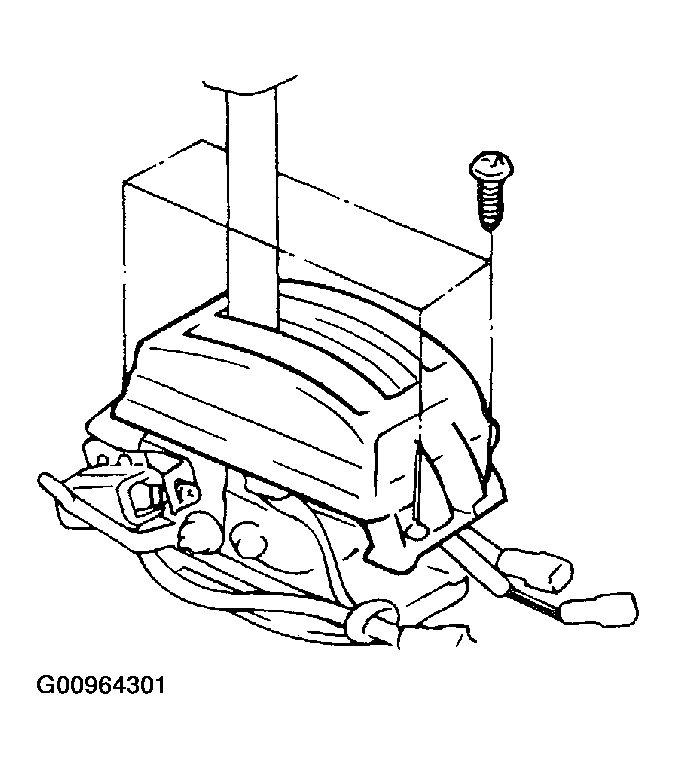

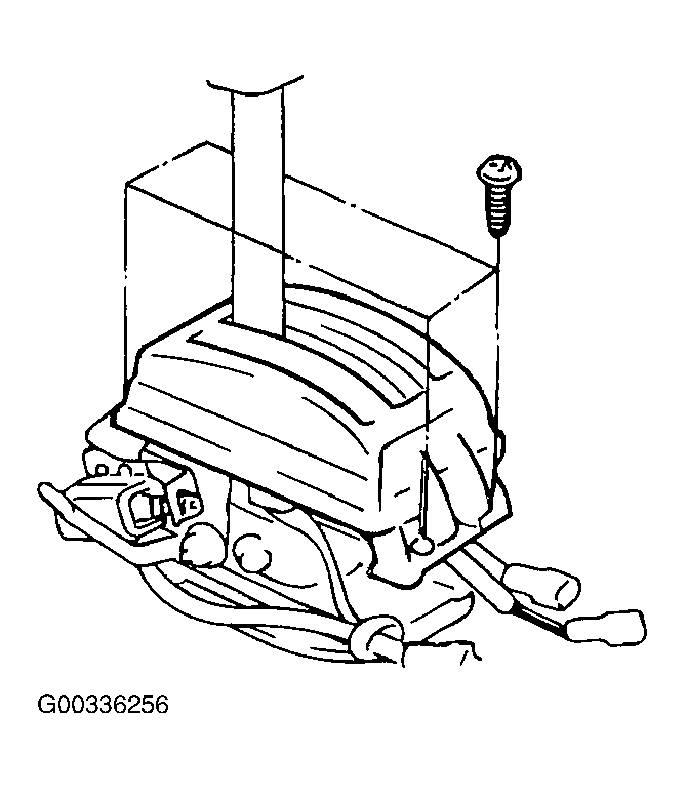

Fig 5: Removing Shift Lever Indicator Assembly
Courtesy of HYUNDAI MOTOR CO.

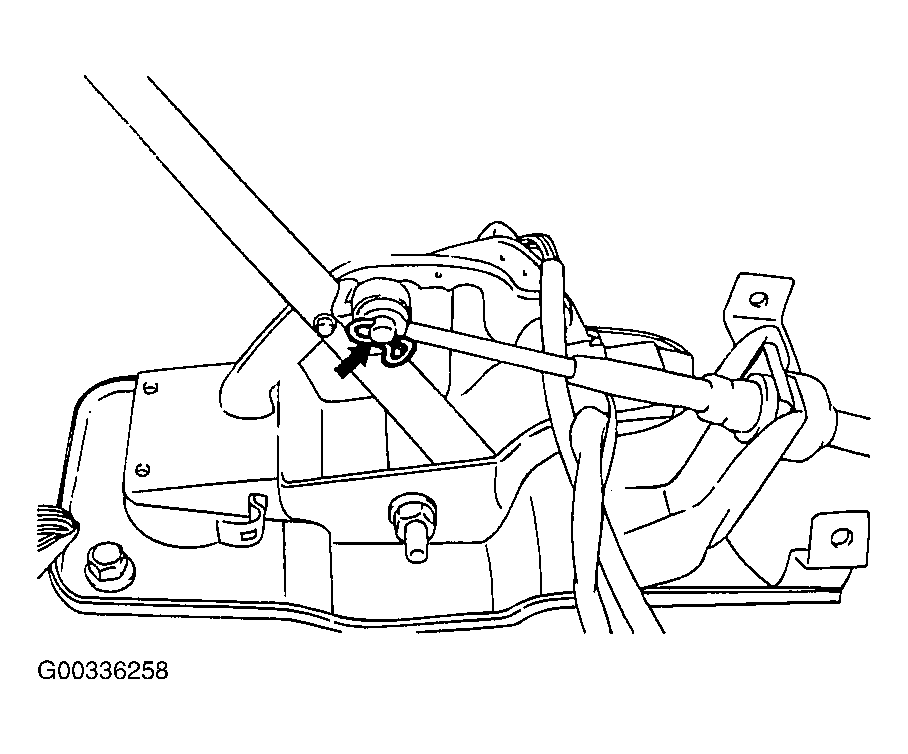

Remove the cotter pin.

Fig 6: Removing Cotter Pin
Courtesy of HYUNDAI MOTOR CO.
Remove the clip from the shift lever side.

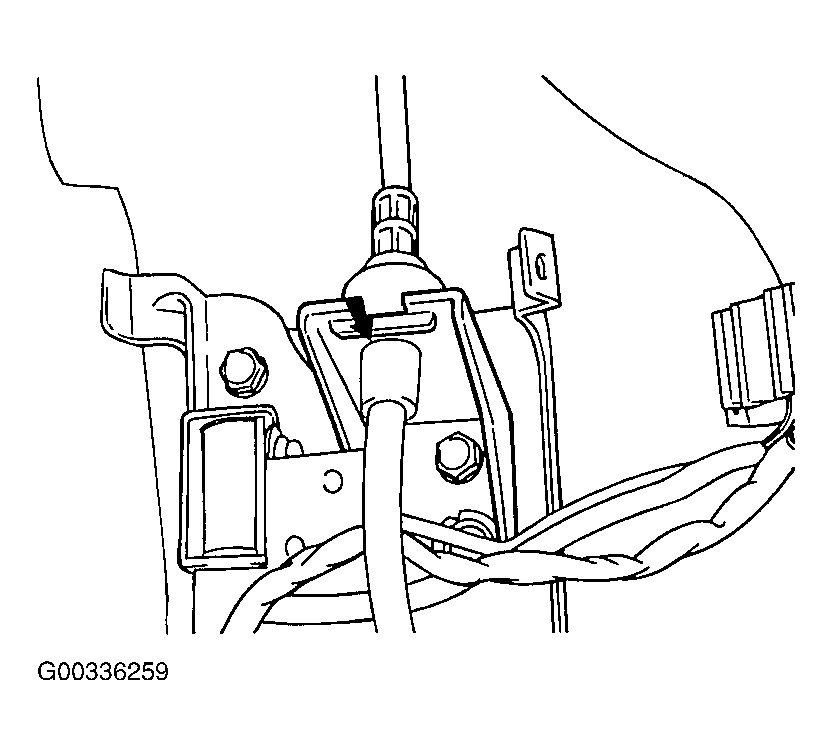

Fig 7: Removing Clip From Shift Lever Side
Courtesy of HYUNDAI MOTOR CO.

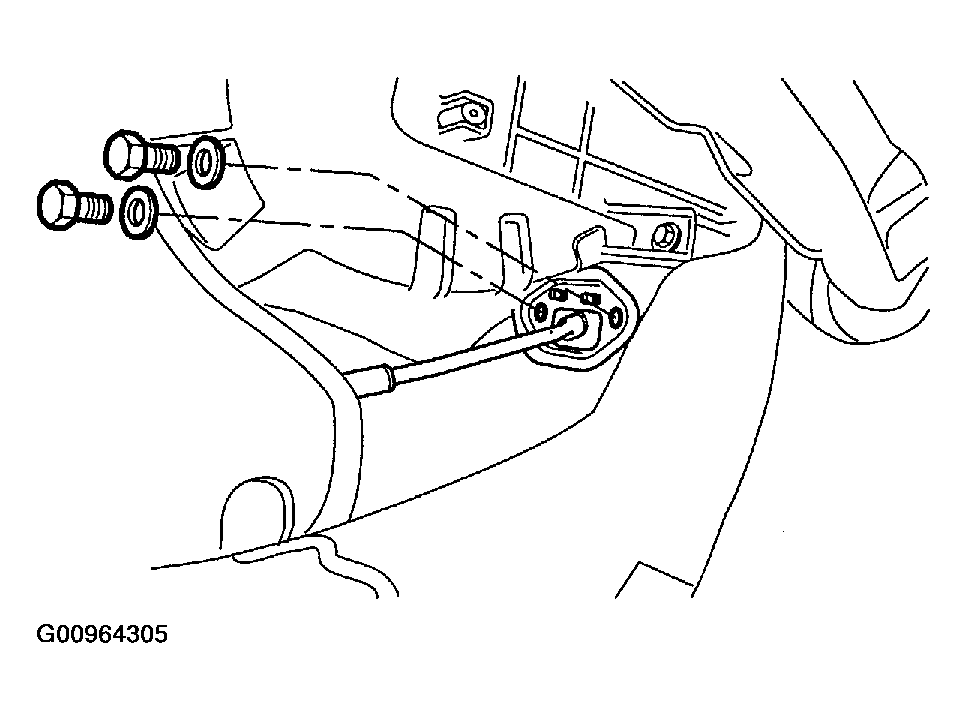

Remove the bolt-washer assembly located on dash panel.

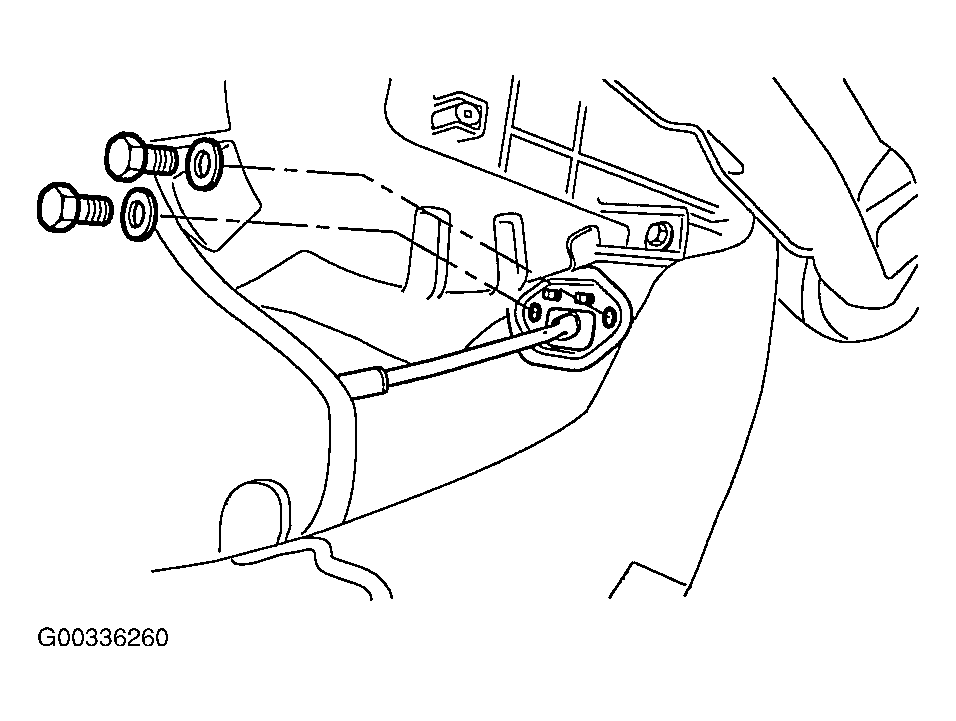

Fig 8: Removing Bolt-Washer Assembly Located On Dash Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly.

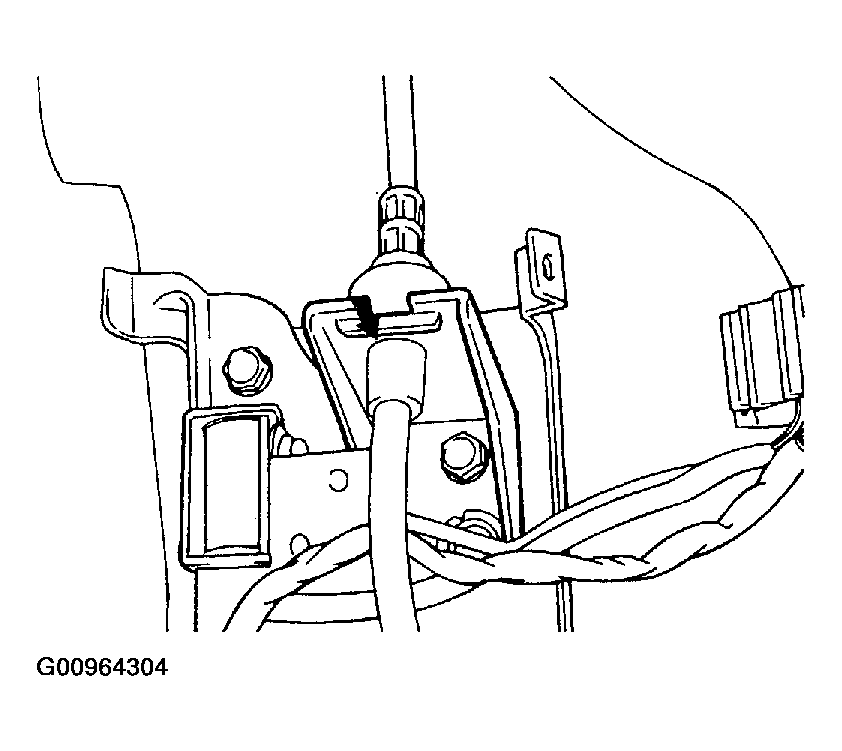

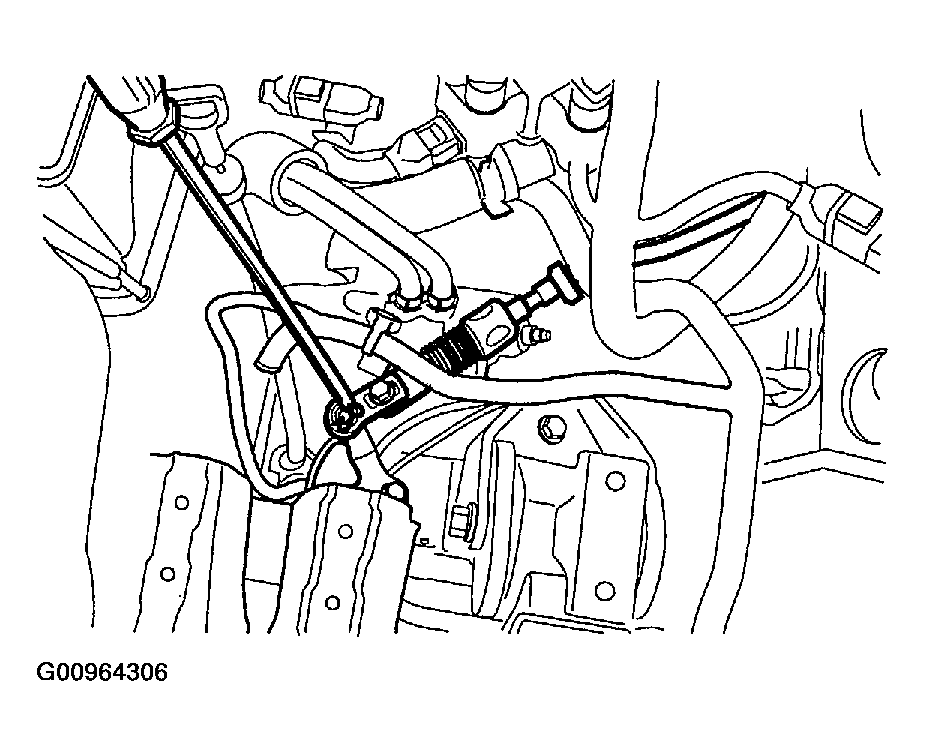

Remove the transaxle control cable assembly.

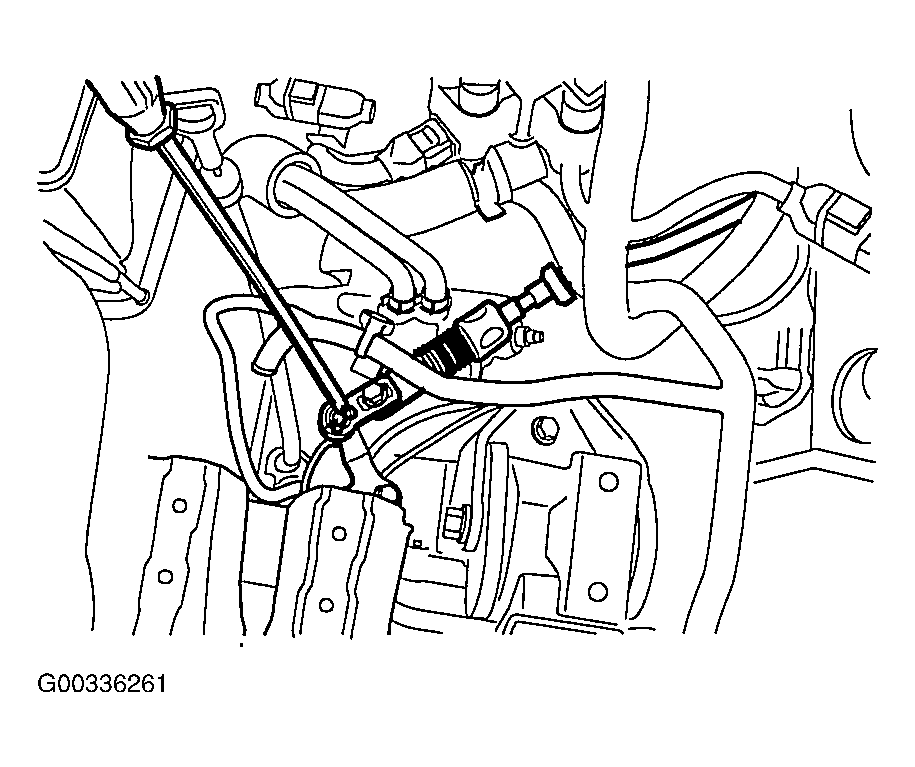

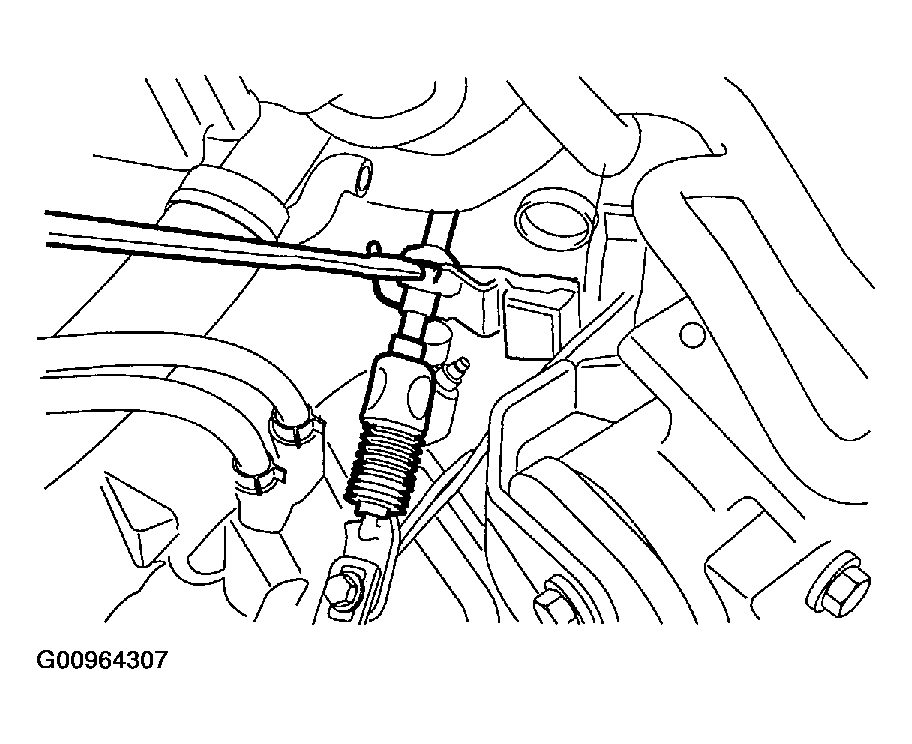

Fig 9: Removing Transaxle Control Cable Assembly (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

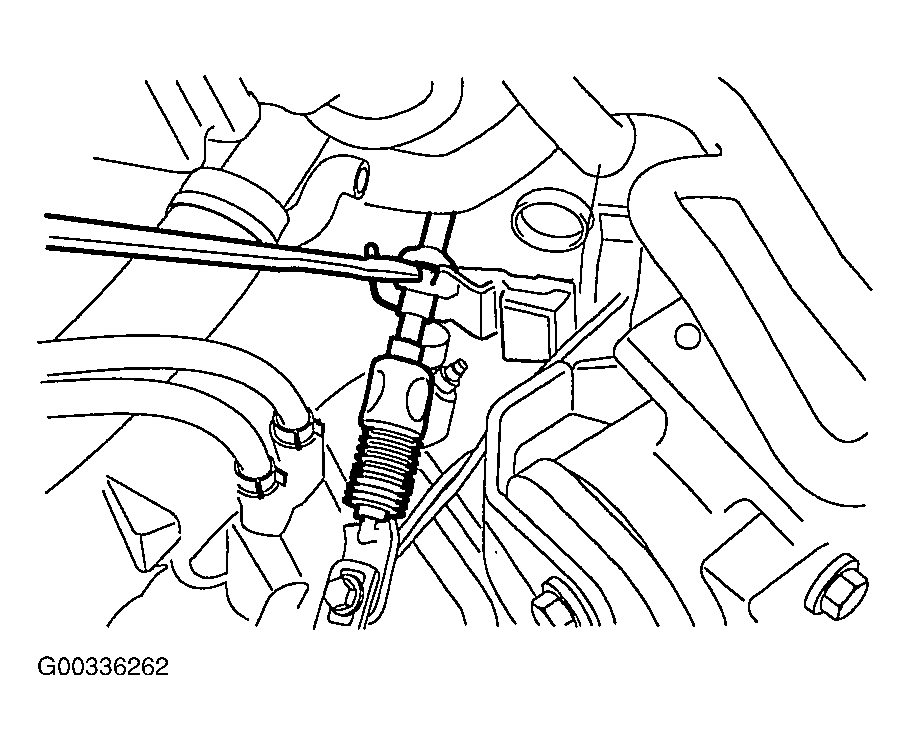

Fig 10: Removing Transaxle Control Cable Assembly (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
