Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

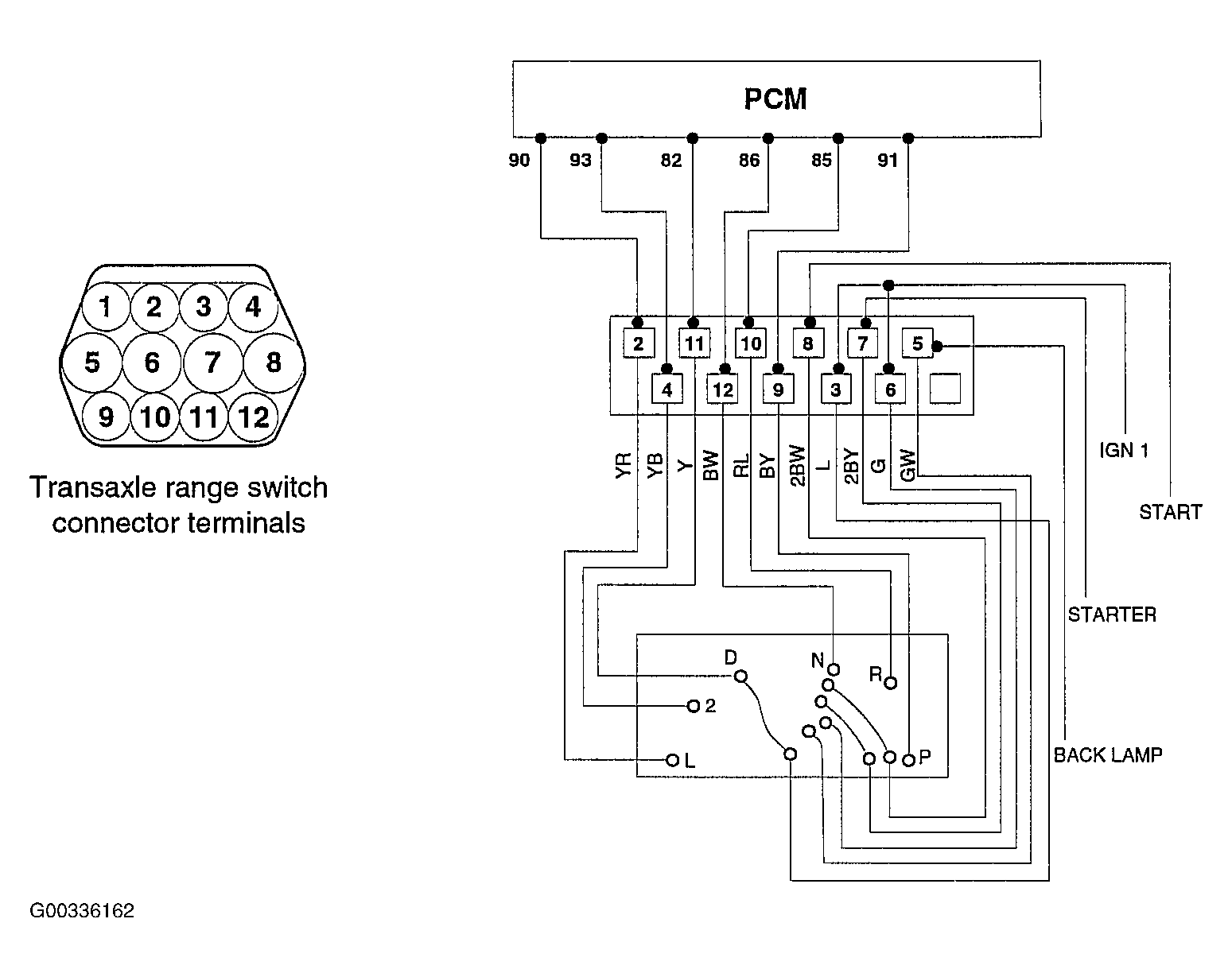

Fig 1: Circuit Diagram
G00336162Courtesy of HYUNDAI MOTOR CO.
Fig 2: Circuit Diagram Flow Chart
G00336163Courtesy of HYUNDAI MOTOR CO.
