Inspection Of Electronic Control System Components: Notes

WARNING: This page is about a different variant/trim than selected.

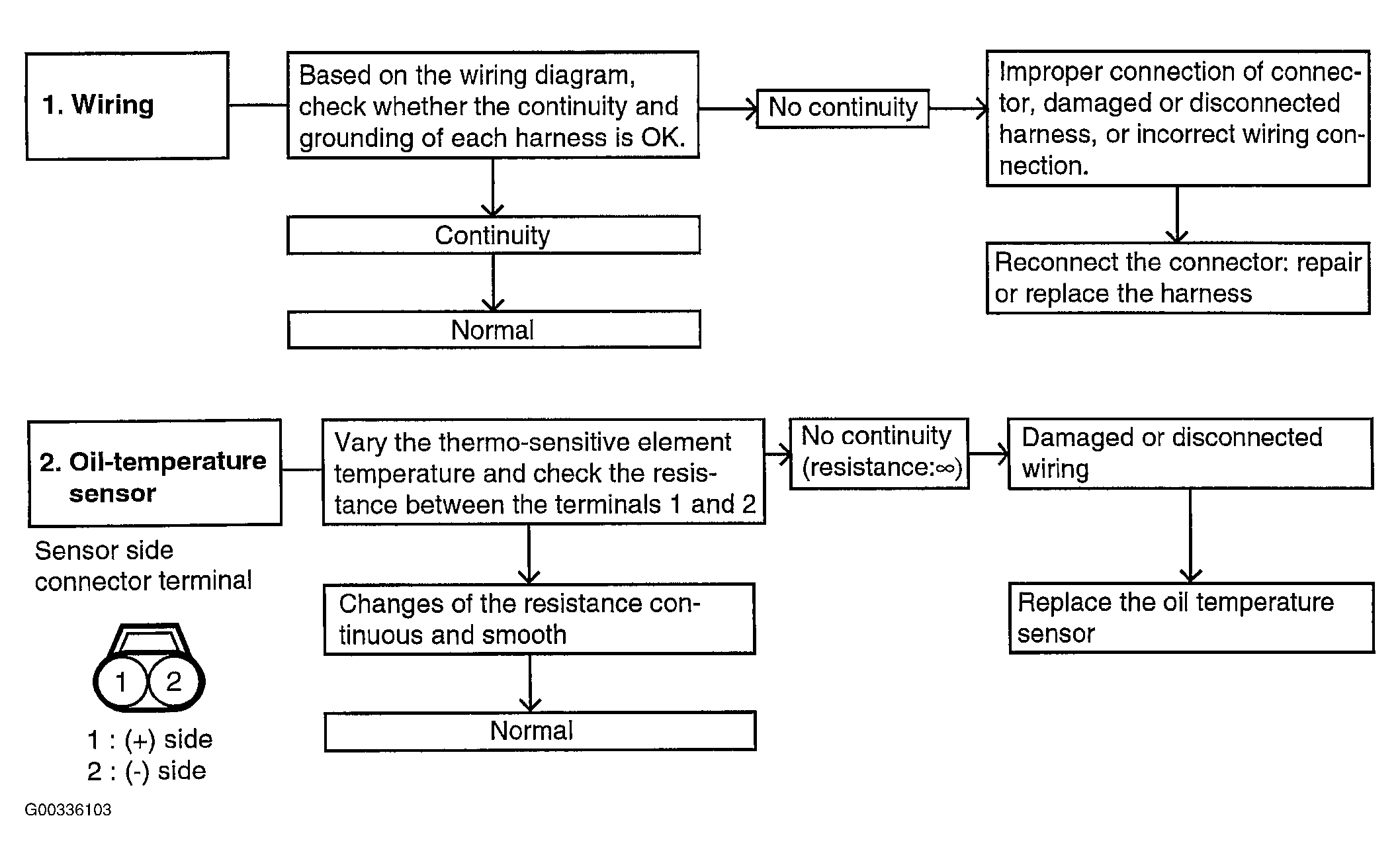

Fig 1: Inspecting Electronic Control System Components (1 Of 7)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Inspecting Electronic Control System Components (2 Of 7)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Inspecting Electronic Control System Components (3 Of 7)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Inspecting Electronic Control System Components (4 Of 7)

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Inspecting Electronic Control System Components (5 Of 7)

Courtesy of HYUNDAI MOTOR CO.

Fig 6: Inspecting Electronic Control System Components (6 Of 7)

Courtesy of HYUNDAI MOTOR CO.

Fig 7: Inspecting Electronic Control System Components (7 Of 7)

Courtesy of HYUNDAI MOTOR CO.
