Preliminary Steps If Oil Pressure Is Not Normal
WARNING:
This page is about a different variant/trim than selected.

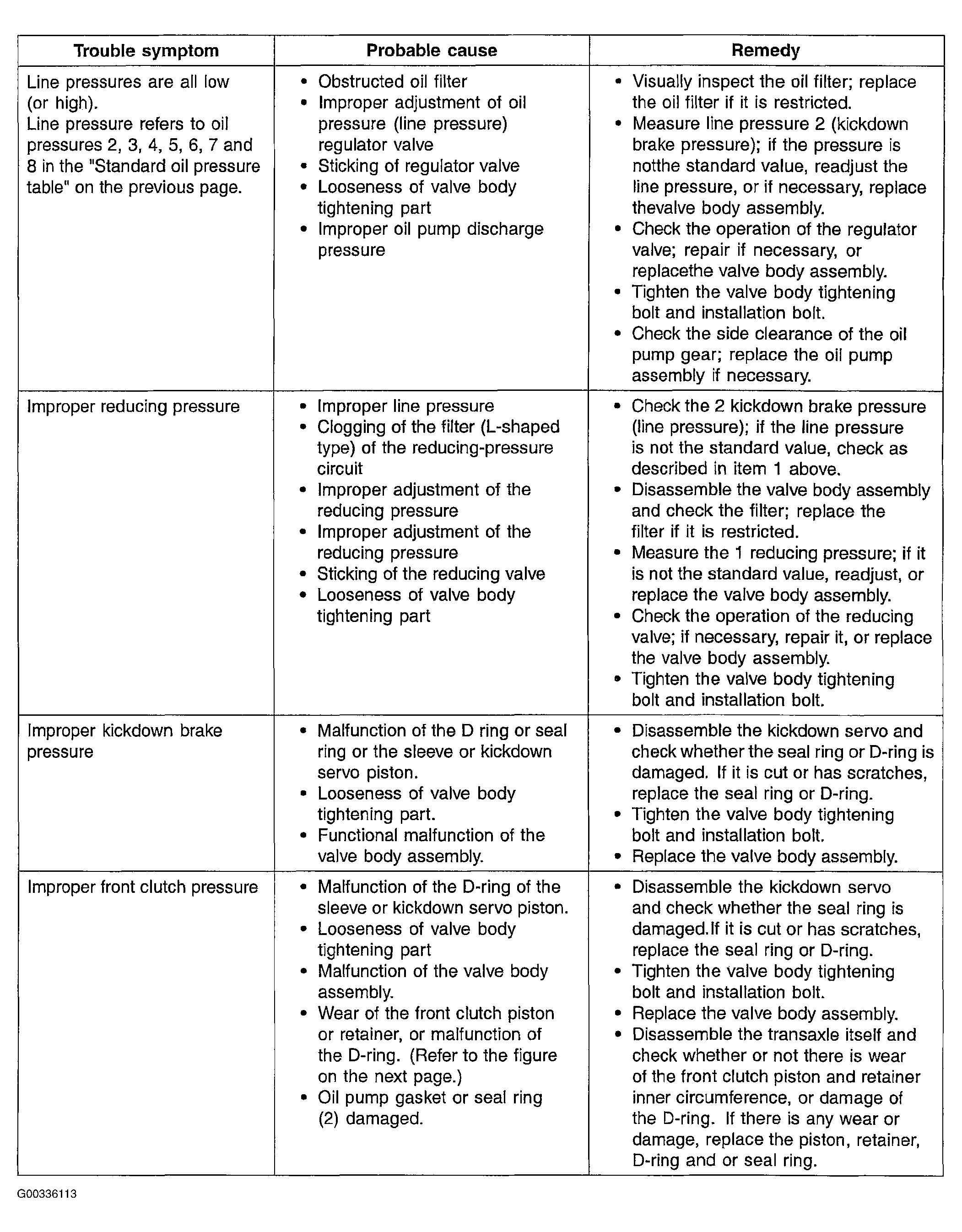

Fig 1: Preliminary Steps If Oil Pressure Is Not Normal (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

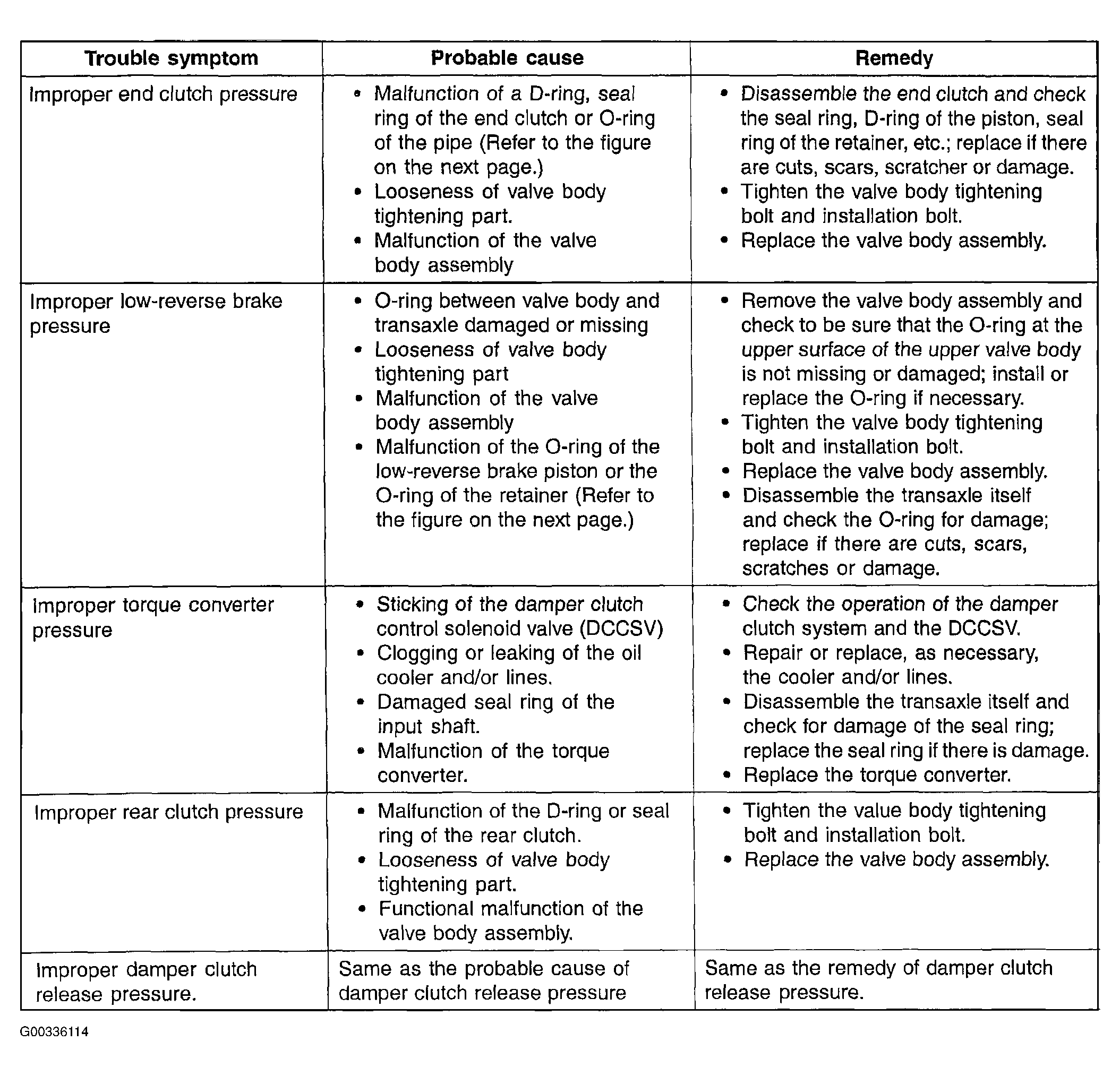

Fig 2: Preliminary Steps If Oil Pressure Is Not Normal (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
