Standard Oil Pressure Table

WARNING: This page is about a different variant/trim than selected.

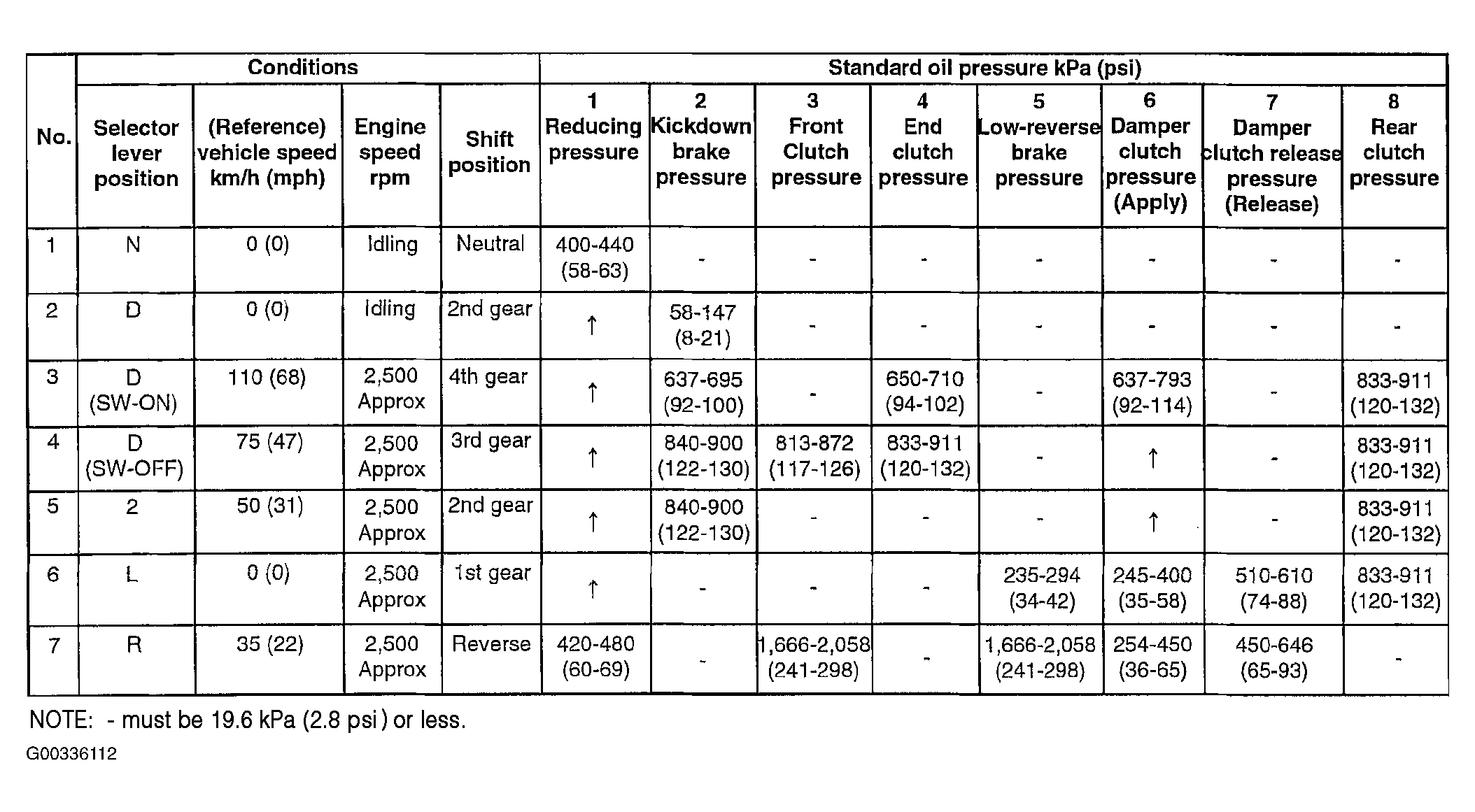

Fig 1: Standard Oil Pressure Table
G00336112Courtesy of HYUNDAI MOTOR CO.
NOTE:
  • must be 19.6 kPa (2.8 psi) or less.
