Checking Steering Angle

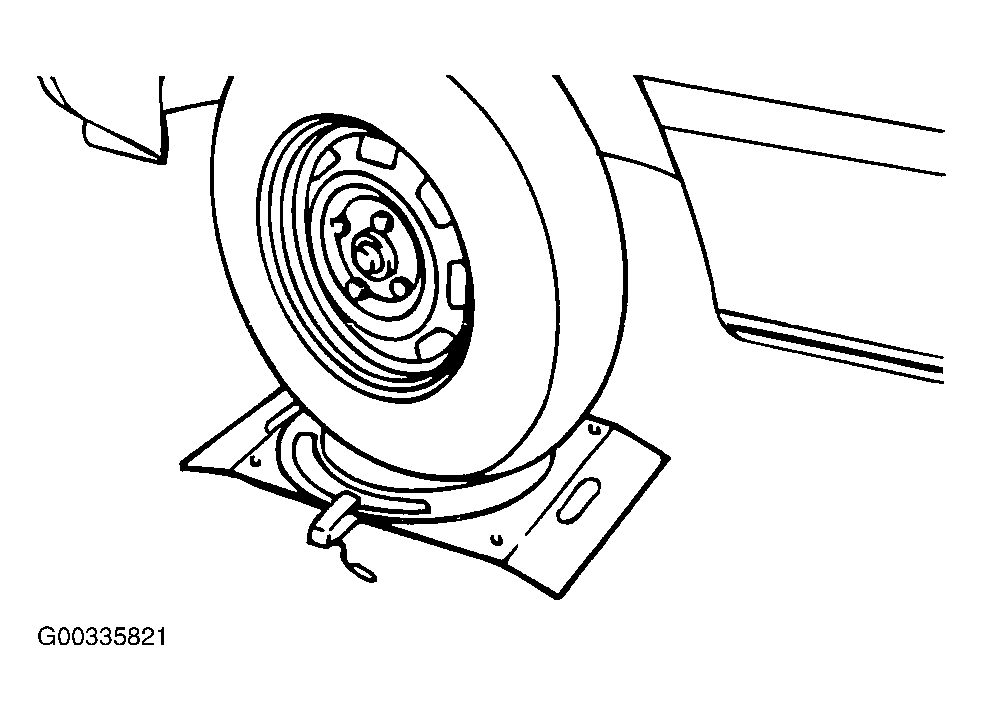

- Place the front wheel on a turning radius gauge and measure the steering angle.
Standard value
Wheel angle (Unladen state)
Inner wheel : 37°37' +/- 1°30'
Outer wheel : 31°51'
- If the measured value is not within the standard value, adjust the toe and inspect again.
