Manual Steering Gear Box: Installation

  1. Install the manual steering gear box assembly by inserting it from the right side.

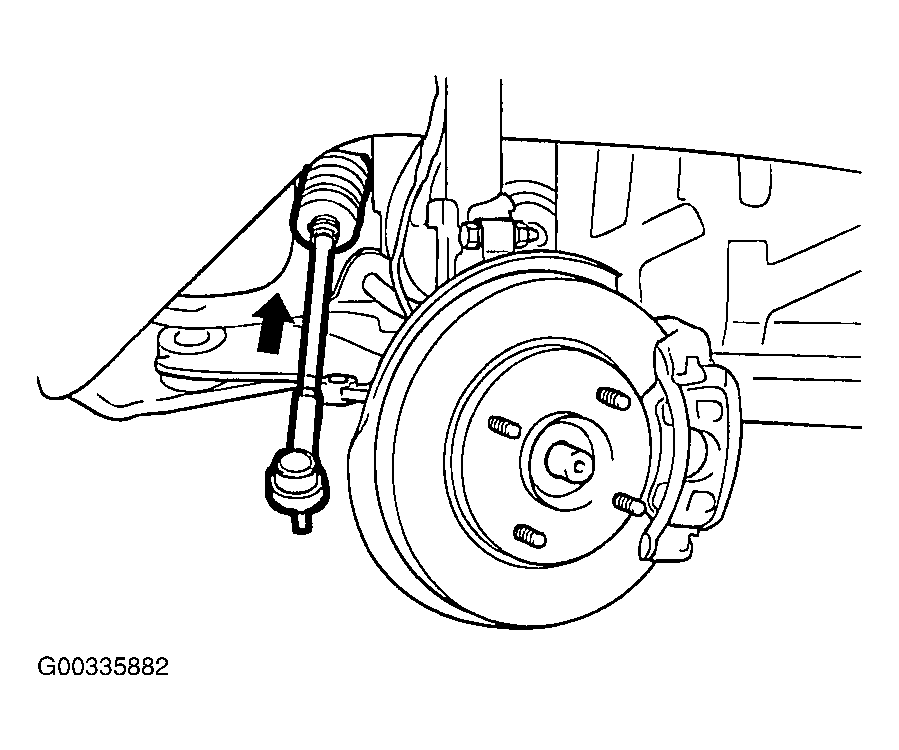

    Fig 1: Installing Manual Steering Gear Box Assembly By Inserting It From Right Side
    G00335882Courtesy of HYUNDAI MOTOR CO.
  2. Fix the manual steering gear box to the crossmember.

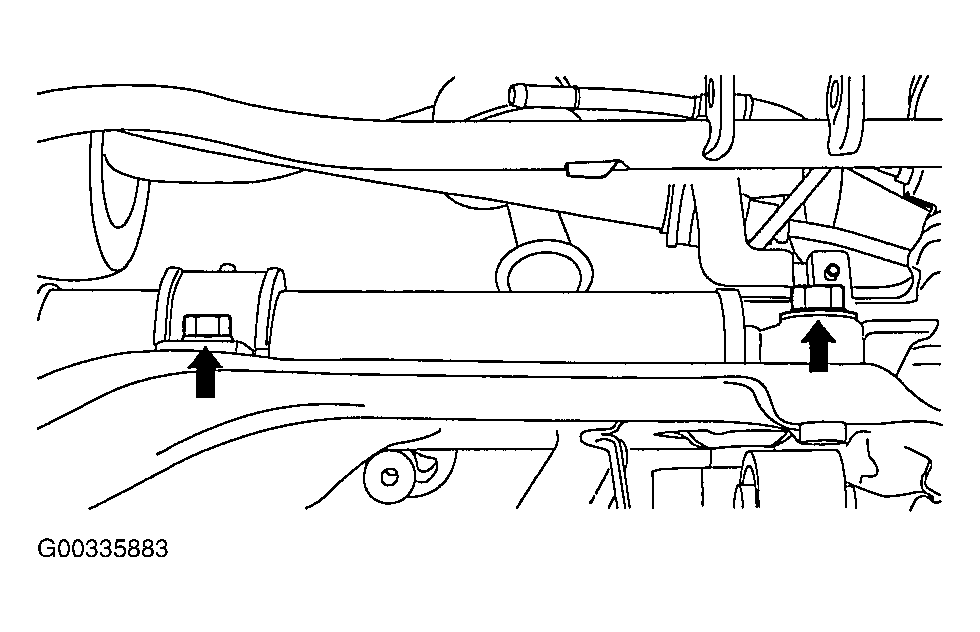

    Fig 2: Install Manual Steering Gear Box To Crossmember
    G00335883Courtesy of HYUNDAI MOTOR CO.
  3. Lower the vehicle.
  4. Connect the tie rod to the LH/RH knuckles.

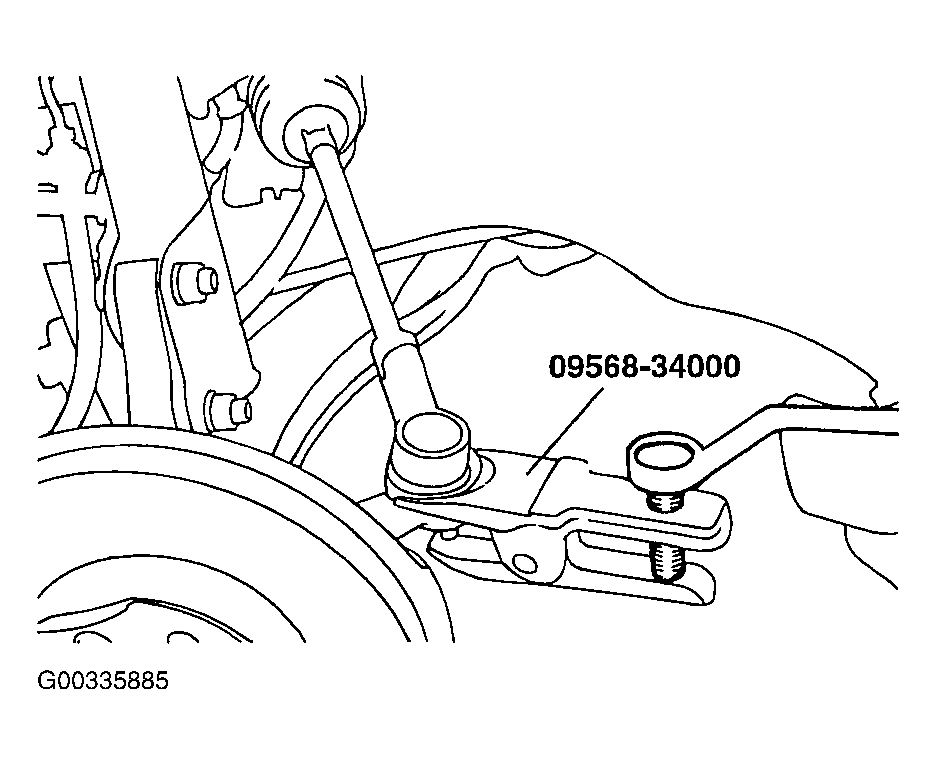

    Fig 3: Connecting Tie Rod To LH/RH Knuckles
    G00335885Courtesy of HYUNDAI MOTOR CO.
  5. Install the tires (LH/RH).
  6. Connect the steering shaft assembly to the gear box in the passenger compartment.

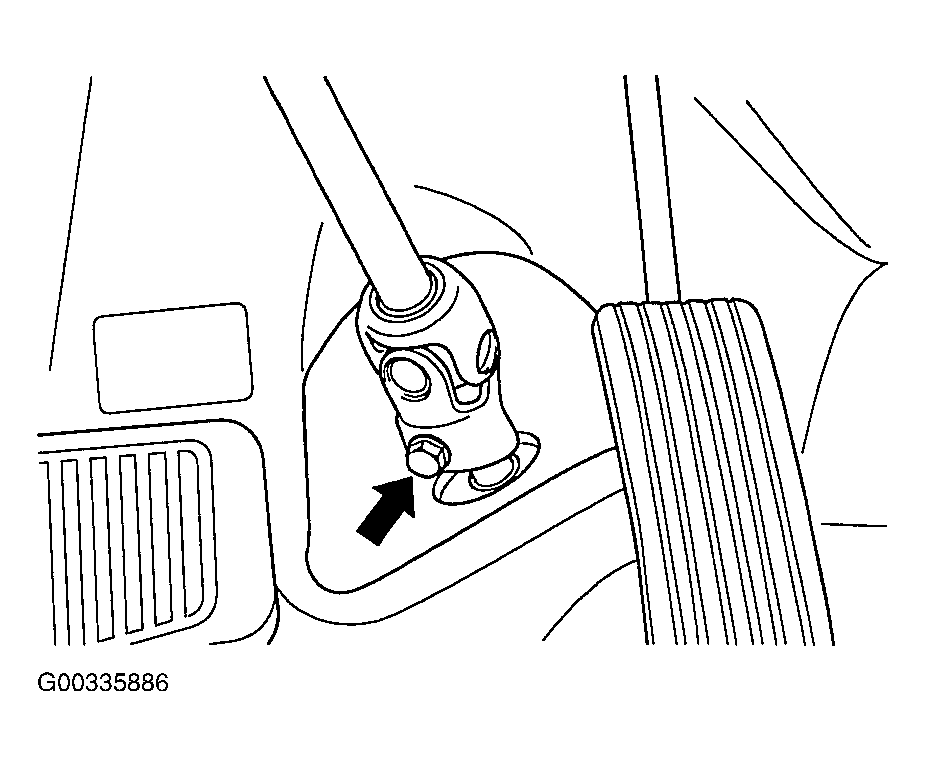

Fig 4: Connecting Steering Shaft Assembly To Gear Box In Passenger Compartment
G00335886Courtesy of HYUNDAI MOTOR CO.
