Power Steering Gear Box: Components

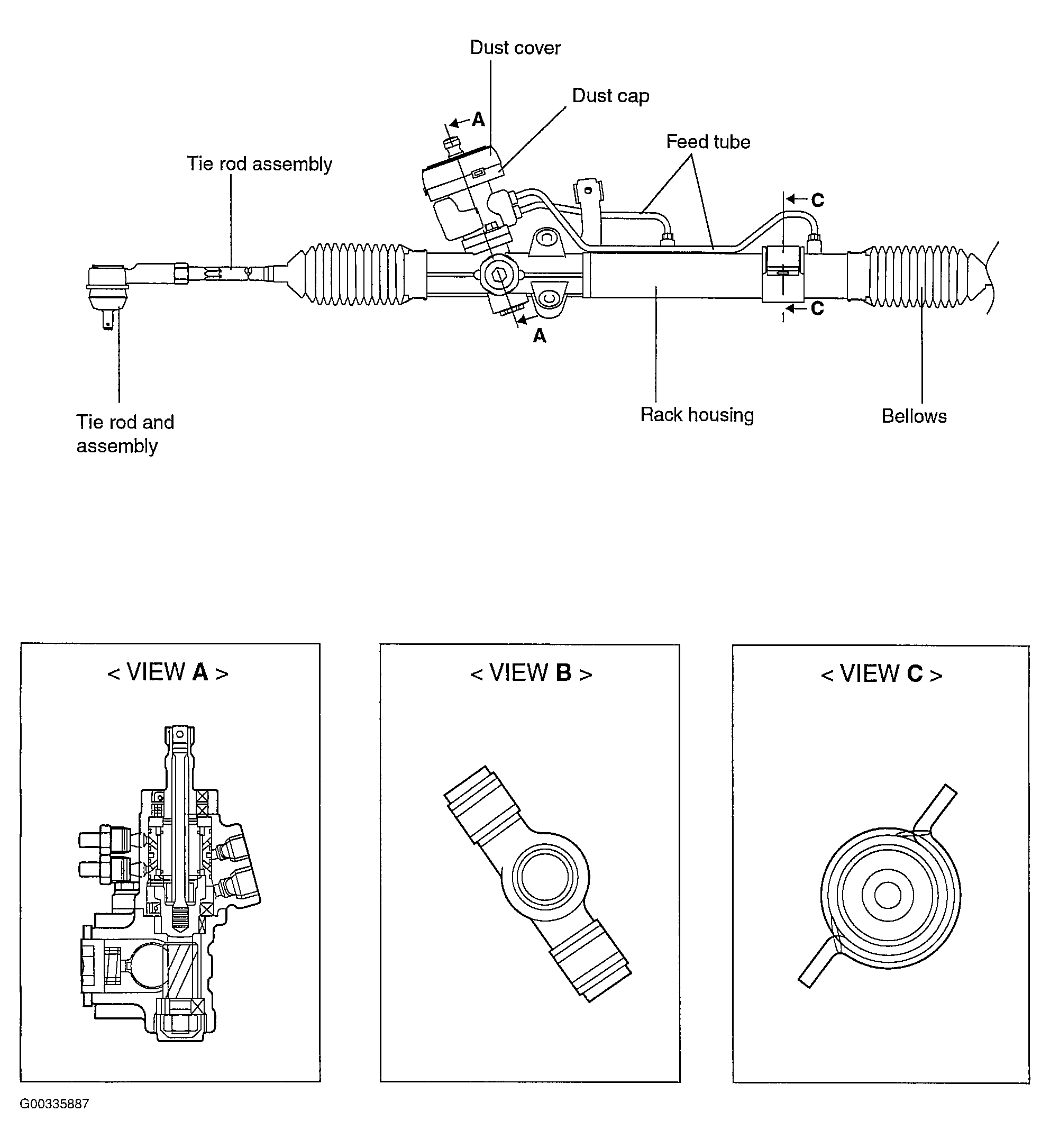

Fig 1: Identifying Power Steering Gear Box Components (1 Of 2)
G00335887Courtesy of HYUNDAI MOTOR CO.

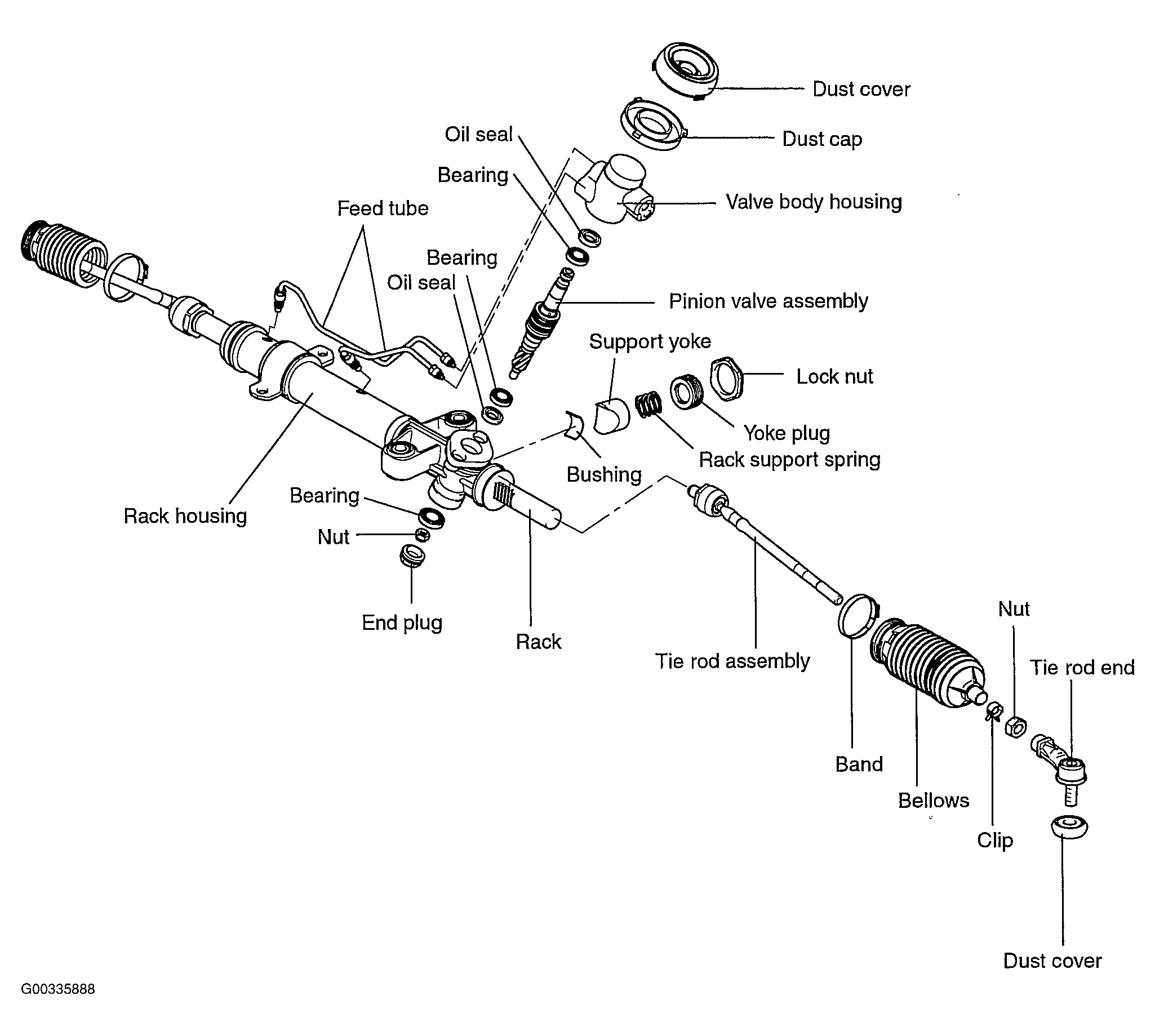

Fig 2: Identifying Power Steering Gear Box Components (2 Of 2)
G00335888Courtesy of HYUNDAI MOTOR CO.
