Power Steering Gear Box: Installation

  1. Push in the power steering gear box assembly in the right side of the vehicle.

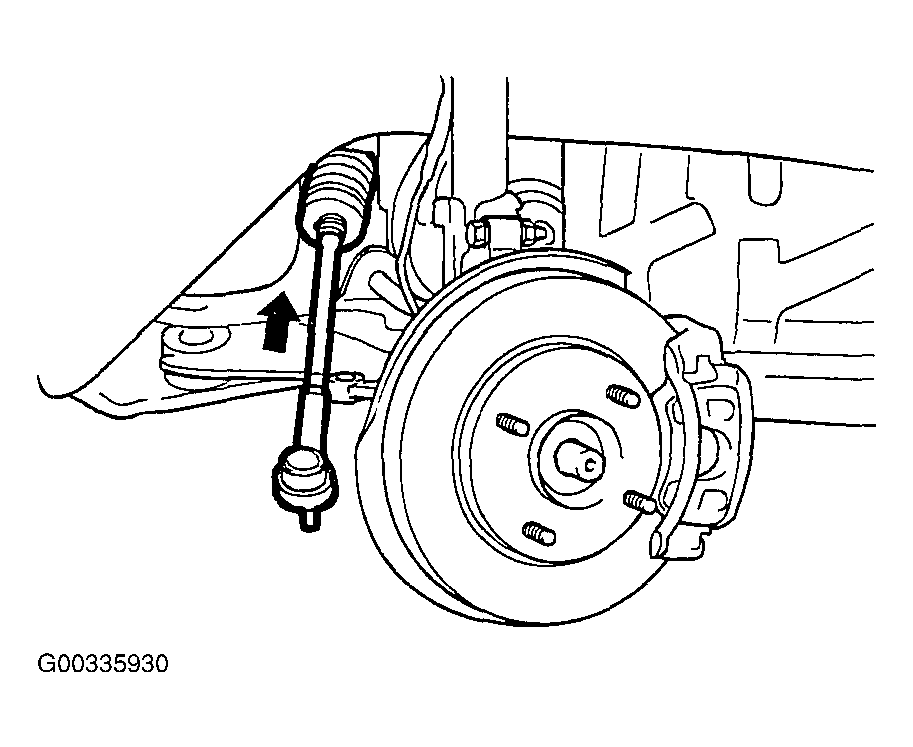

    Fig 1: Pushing In Power Steering Gear Box Assembly In Right Side Of Vehicle
    G00335930Courtesy of HYUNDAI MOTOR CO.
  2. Fix the power steering gear box to the crossmember.

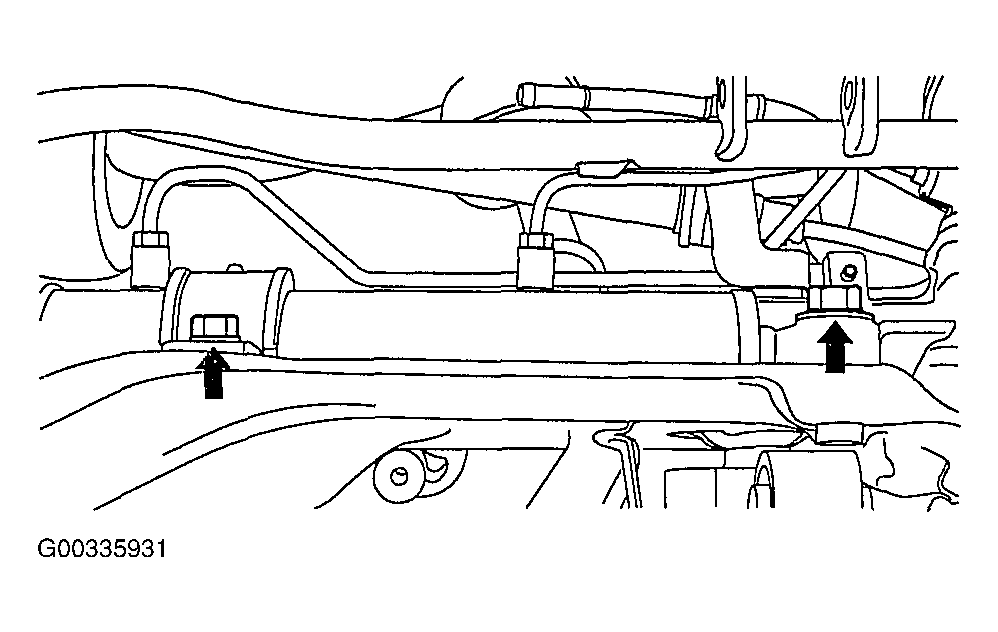

    Fig 2: Installing Power Steering Gear Box To Crossmember
    G00335931Courtesy of HYUNDAI MOTOR CO.
  3. Install the pressure tube and return tube fitting to the power steering gear box.

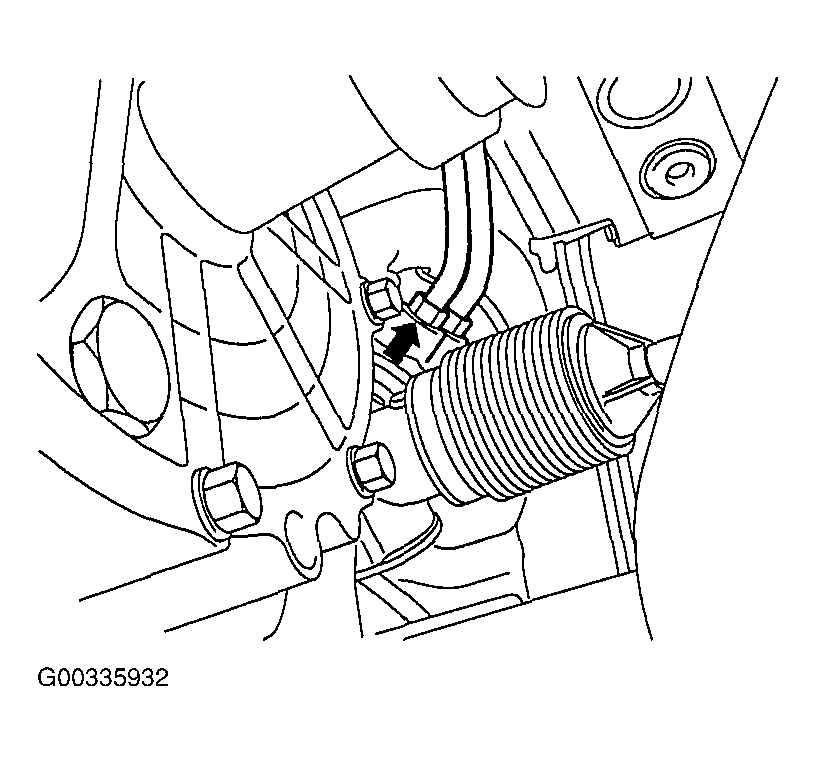

    Fig 3: Installing Pressure Tube & Return Tube Fitting To Power Steering Gear Box
    G00335932Courtesy of HYUNDAI MOTOR CO.
  4. Fix the power steering pressure hose and return tube mounting clamp with the bolt.

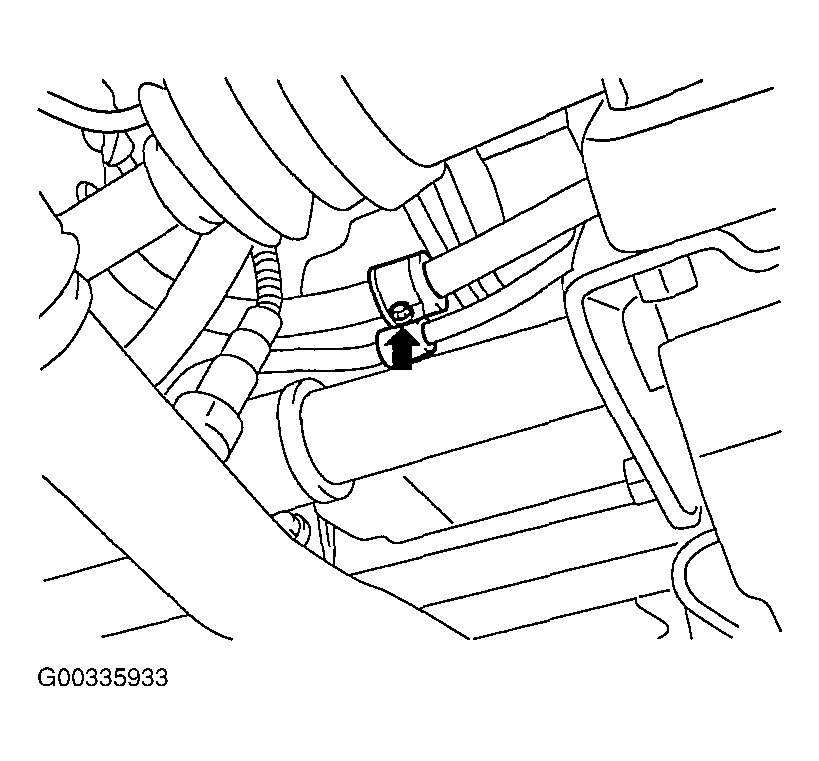

    Fig 4: Installing Power Steering Pressure Hose & Return Tube Mounting Clamp With Bolt
    G00335933Courtesy of HYUNDAI MOTOR CO.
  5. Slowly lower the vehicle.
  6. Connect the tie rod to the knuckles (RH/LH)

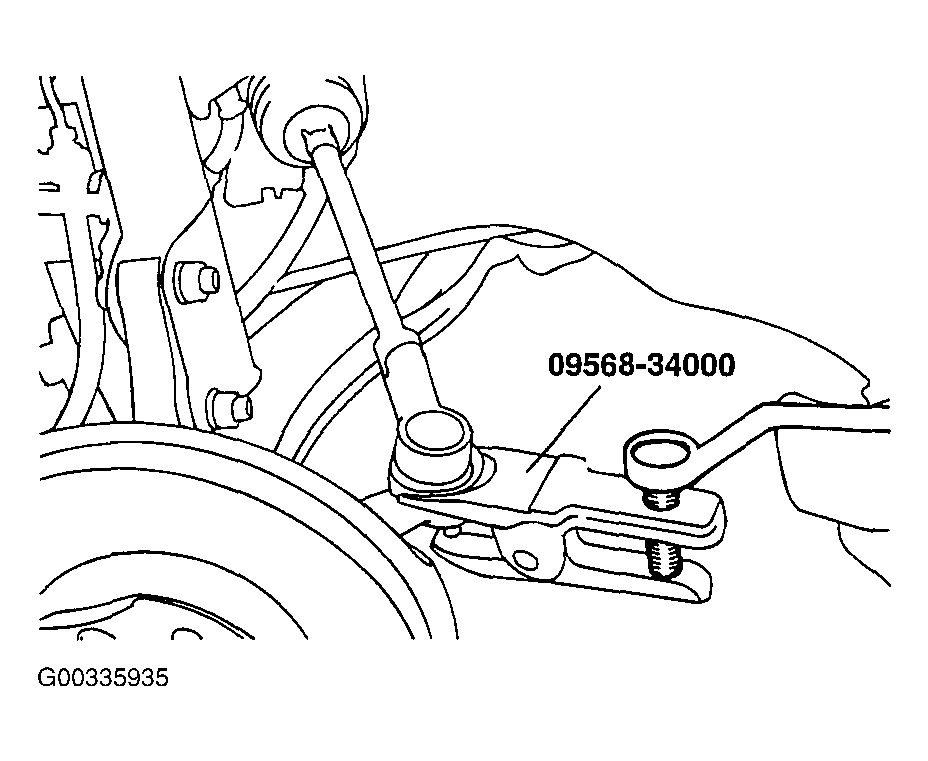

    Fig 5: Connecting Tie Rod To Knuckles
    G00335935Courtesy of HYUNDAI MOTOR CO.
  7. Install the tires (RH/LH)
  8. Connect the steering shaft to the driver side gear box.

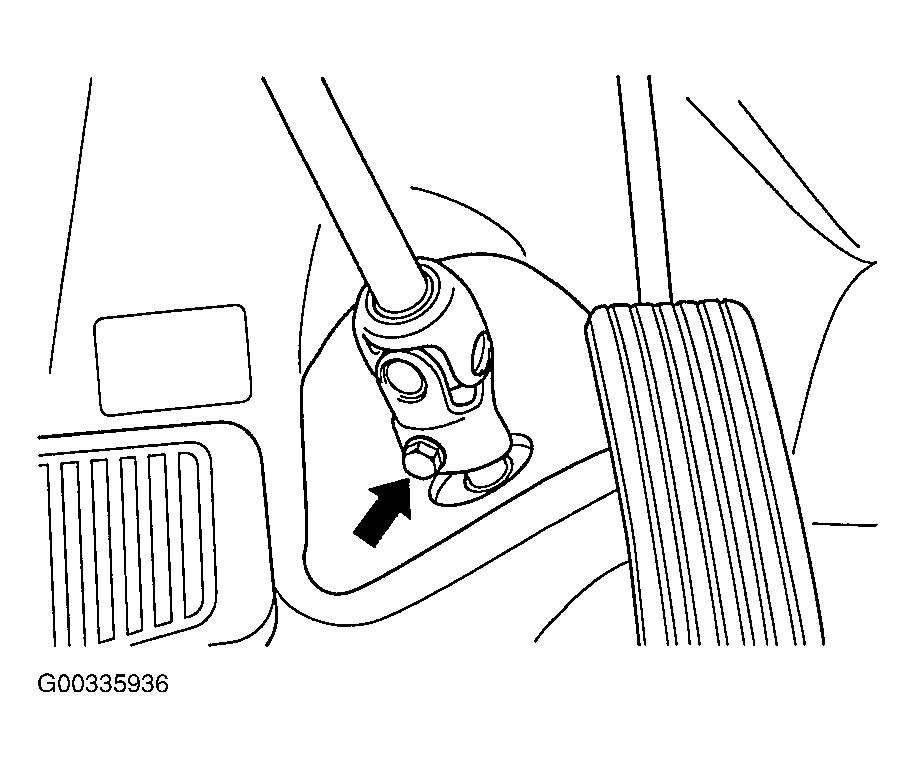

    Fig 6: Connecting Steering Shaft To Driver Side Gear Box
    G00335936Courtesy of HYUNDAI MOTOR CO.
  9. Apply the power steering fluid.
  10. Bleed the air.
