Steering Column/Shaft: Components

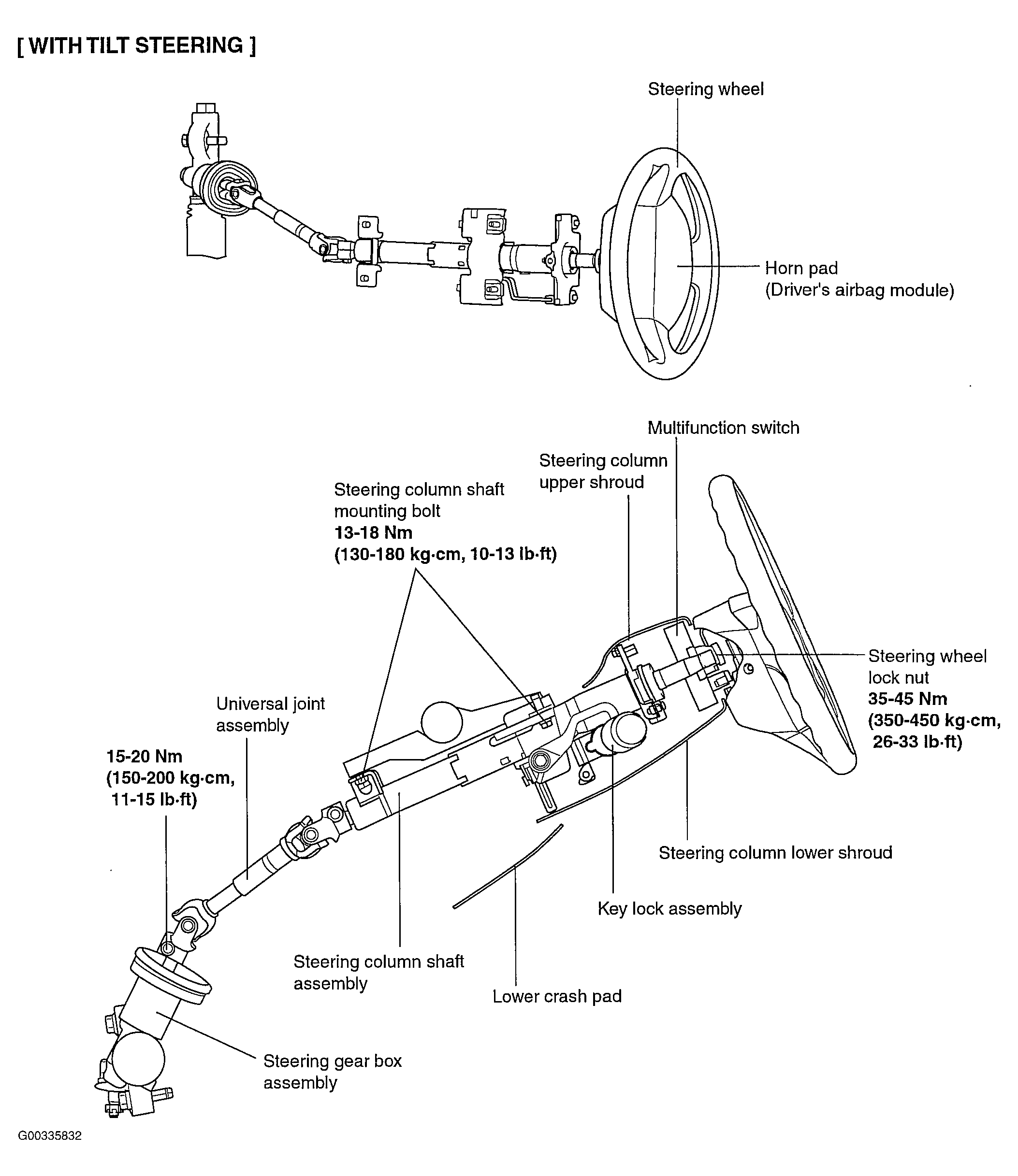

Fig 1: Identifying Steering Column/Shaft Components

G00335832

Courtesy of HYUNDAI MOTOR CO.
