Clutch System: General: Troubleshooting

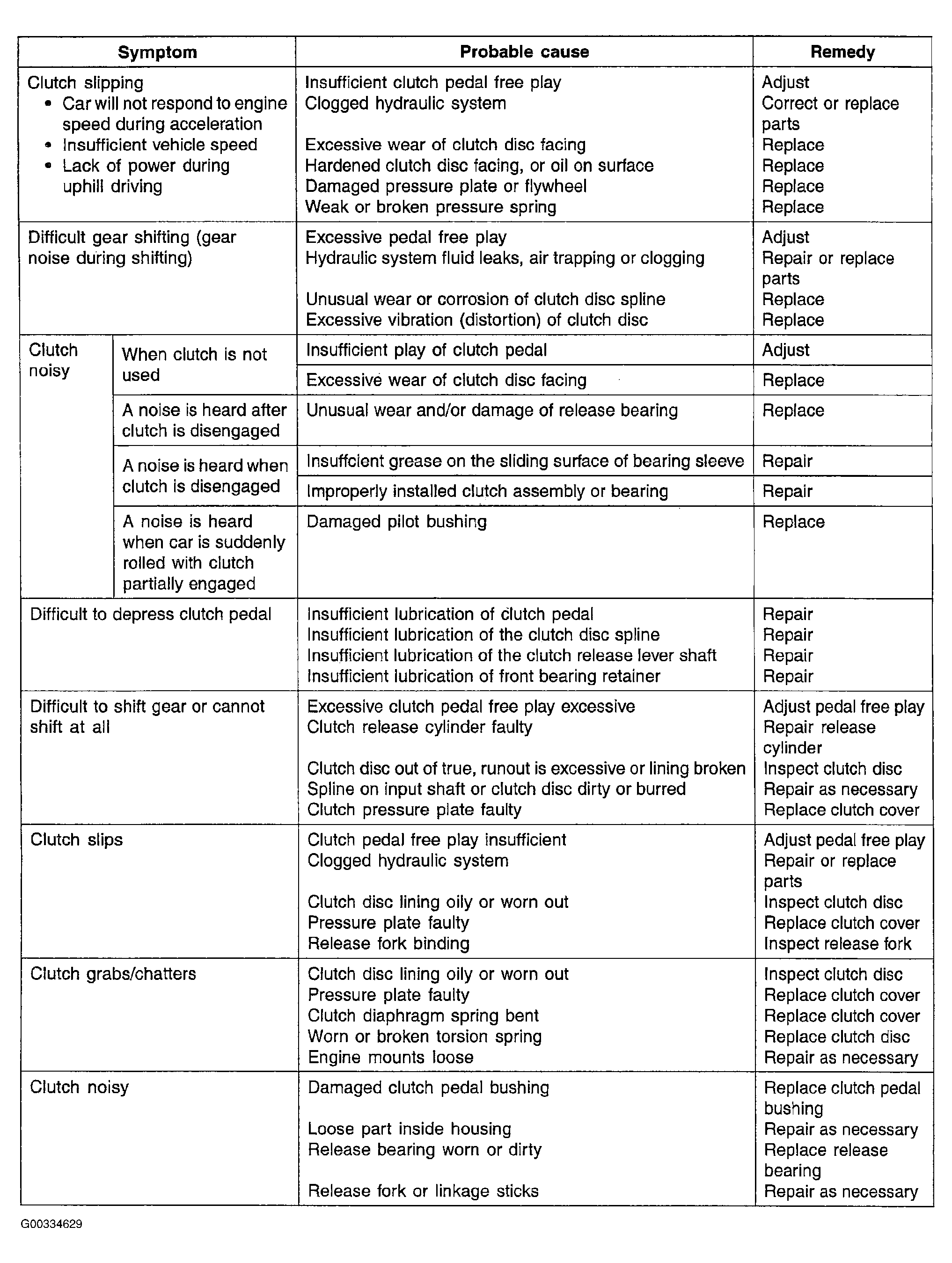

Fig 1: Clutch System Troubleshooting

G00334629

Courtesy of HYUNDAI MOTOR CO.
