Manual Transaxle Shift Control: Removal

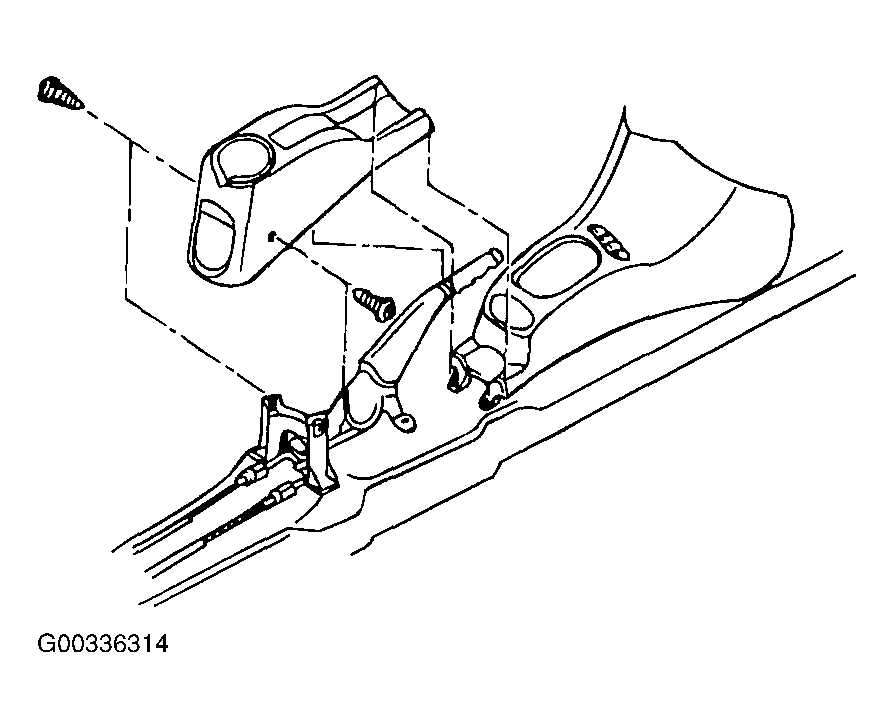

Remove the shift knob and the rear console.

Fig 1: Removing Shift Knob & Rear Console
Courtesy of HYUNDAI MOTOR CO.

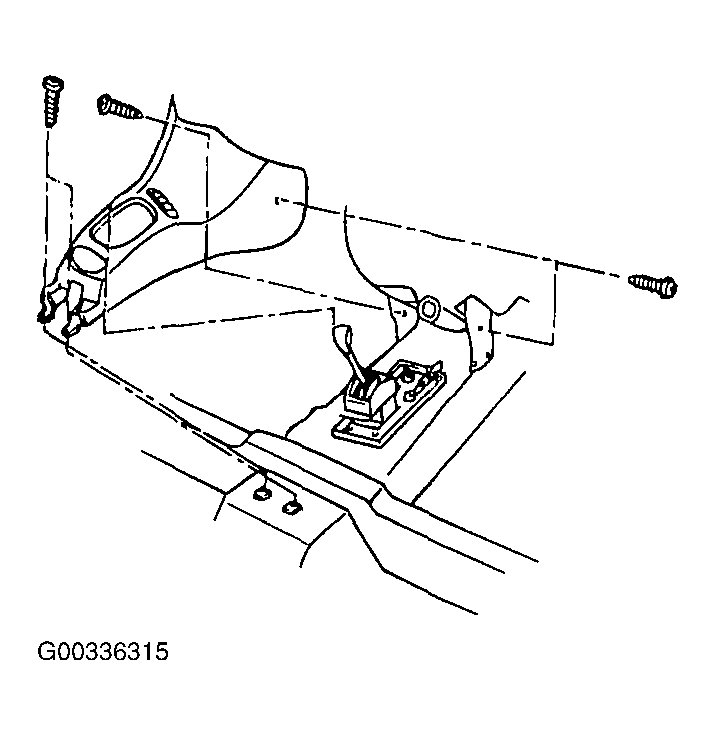

Remove the front console.

Fig 2: Removing Front Console
Courtesy of HYUNDAI MOTOR CO.

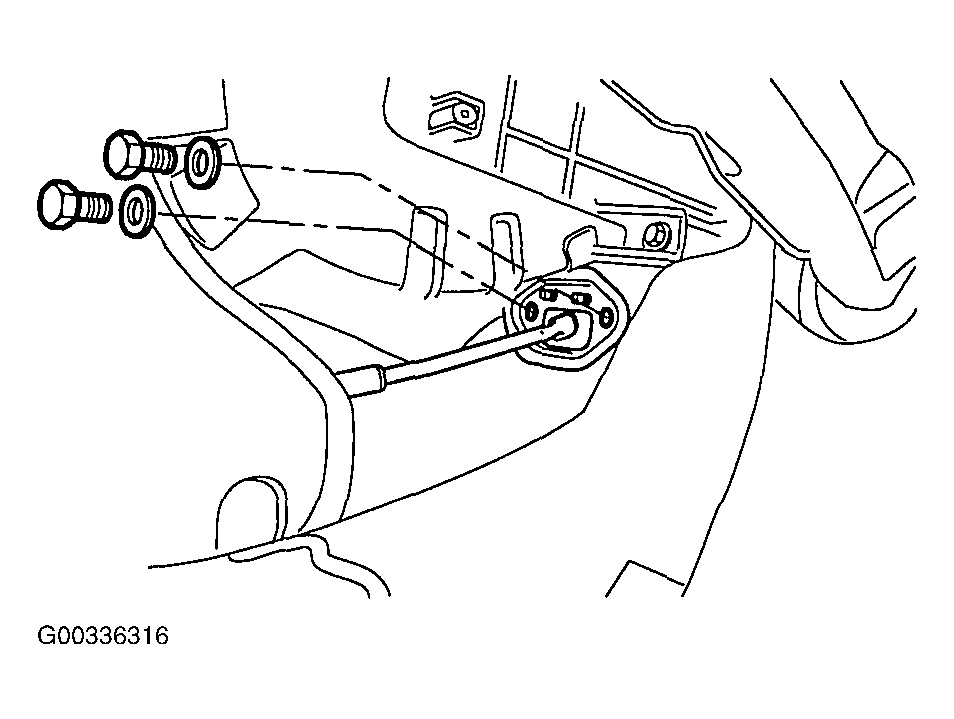

Remove the cable mounting bolts of the lower dash board.

Fig 3: Removing Cable Mounting Bolts Of Lower Dash Board
Courtesy of HYUNDAI MOTOR CO.

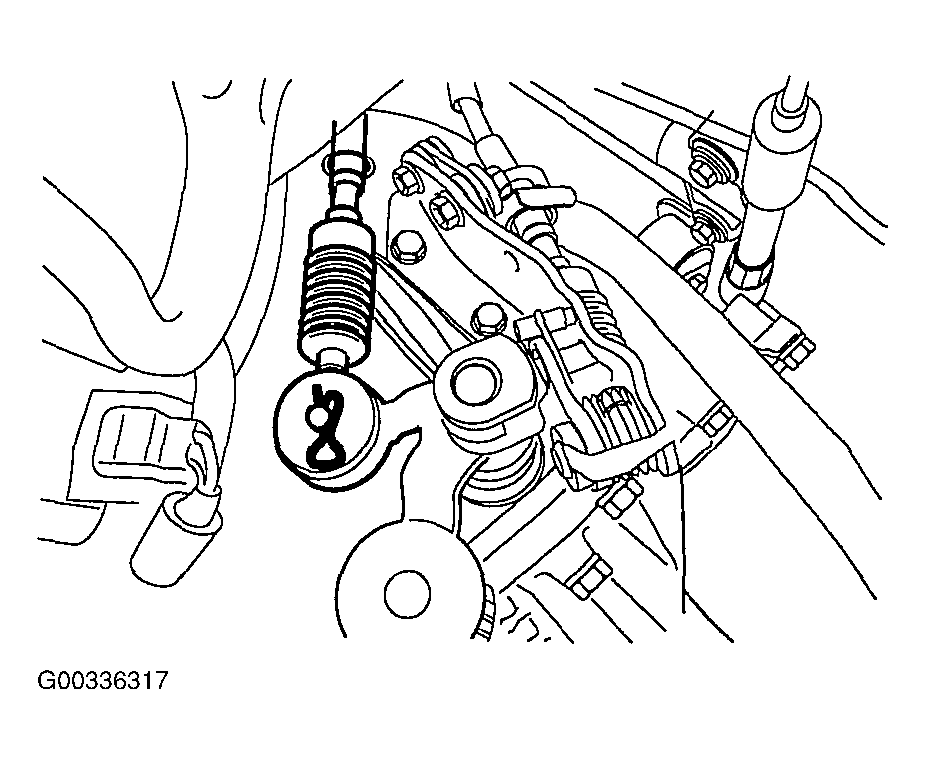

Remove the cotter pin of the shift cable.

Fig 4: Removing Cotter Pin Of Shift Cable
Courtesy of HYUNDAI MOTOR CO.

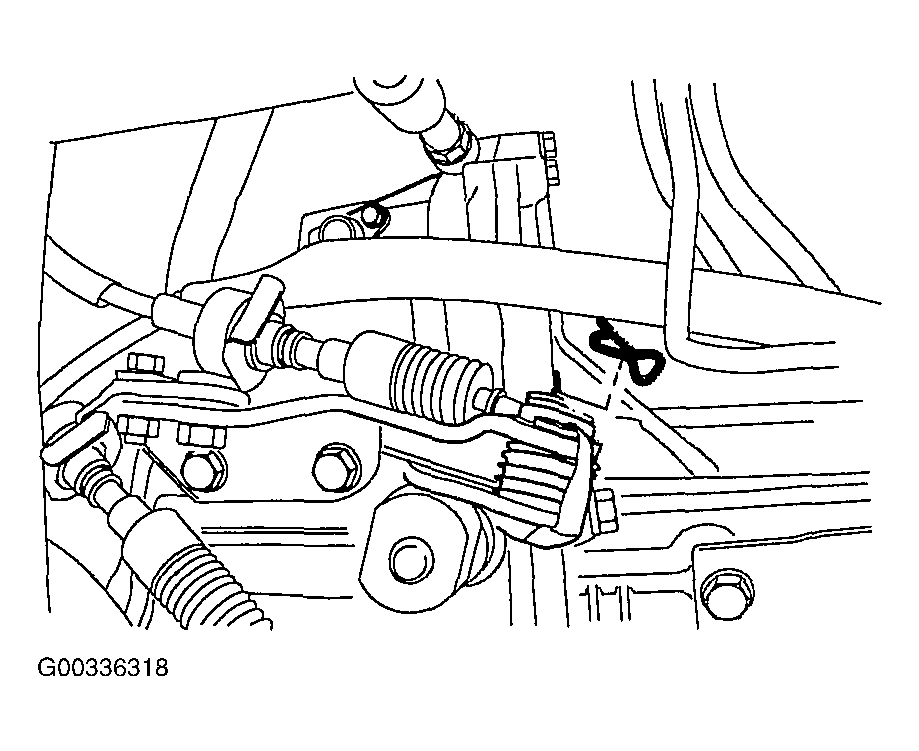

Remove the cotter pin of the selector cable.

Fig 5: Removing Cotter Pin Of Selector Cable
Courtesy of HYUNDAI MOTOR CO.

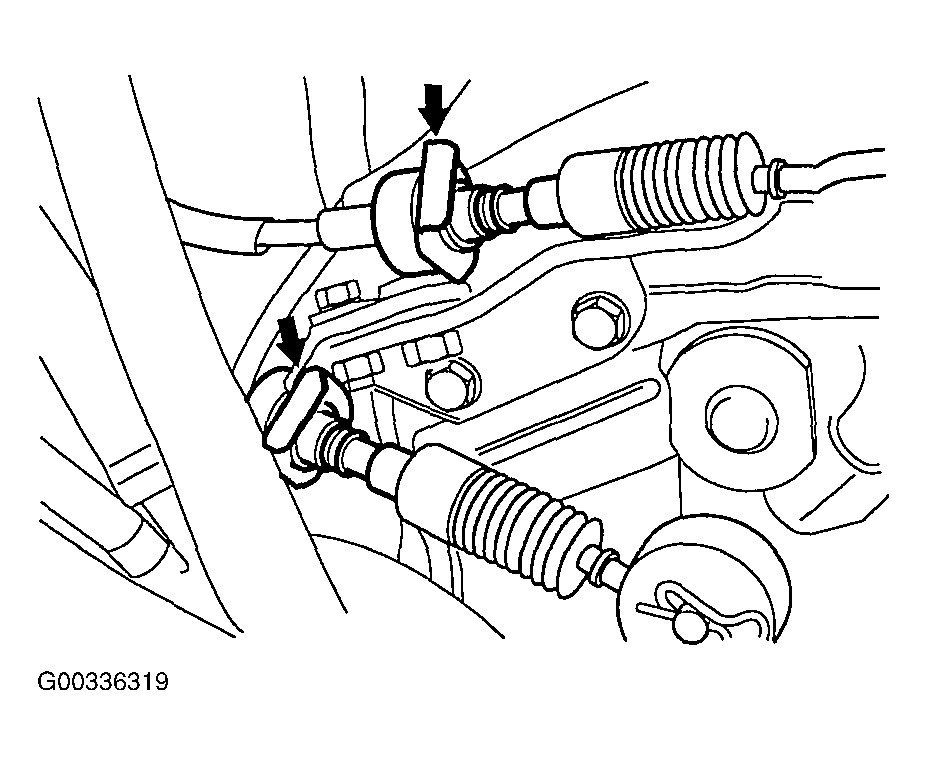

Remove the clip of the shift cable and the selector cable.

Fig 6: Removing Clip Of Shift Cable & Selector Cable.
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly.
