Shift Lever: Components

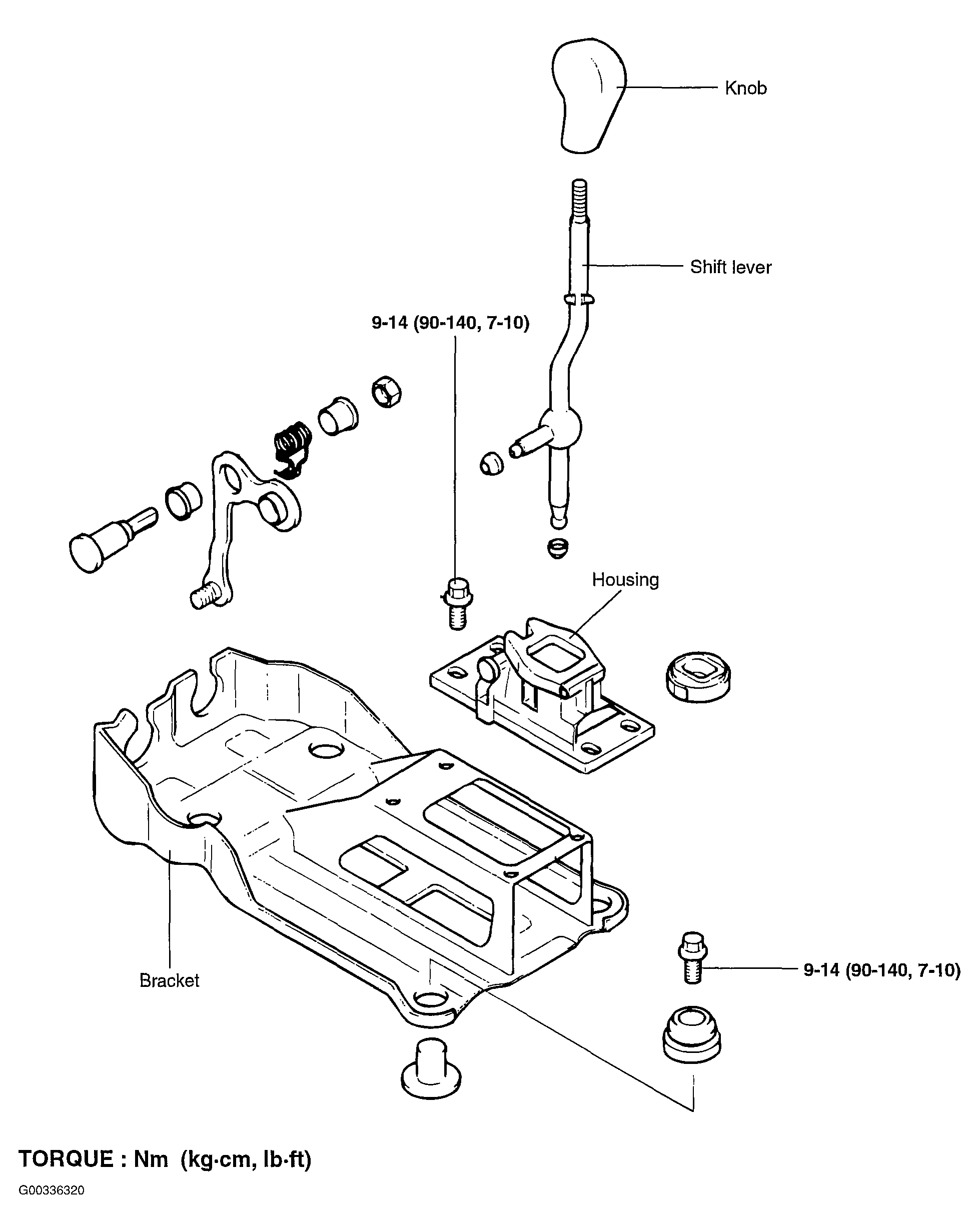

Fig 1: Identifying Shift Lever Components

G00336320

Courtesy of HYUNDAI MOTOR CO.
