Programming and Relearning

TRANSMITTER CODE REGISTRATION

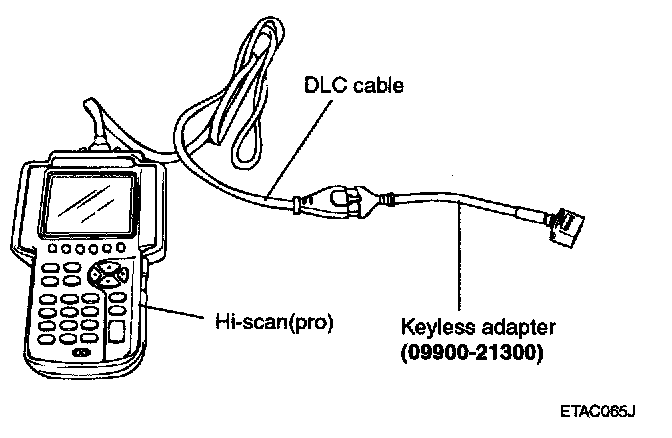

1. To register transmitter code, first connect key less adapter (09900-21300) to DLC (Data Link Connector) cable of hi-scan as shown in the illustration.

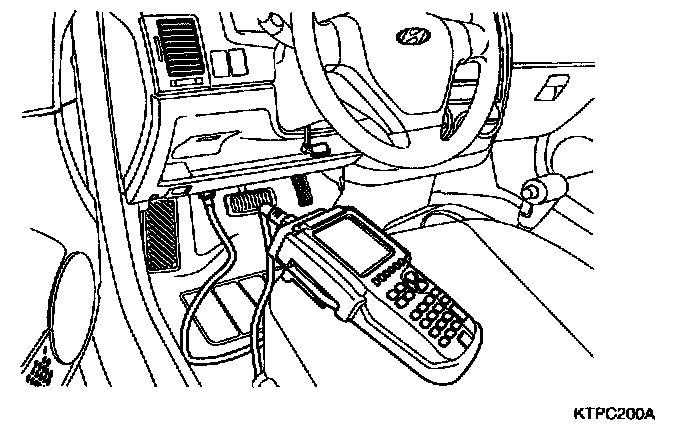

2. After connecting keyless adapter to the multi purpose check connector (10 pins) beside data link connector in driver side crash pad lower panel, turn the power on hi-scan.

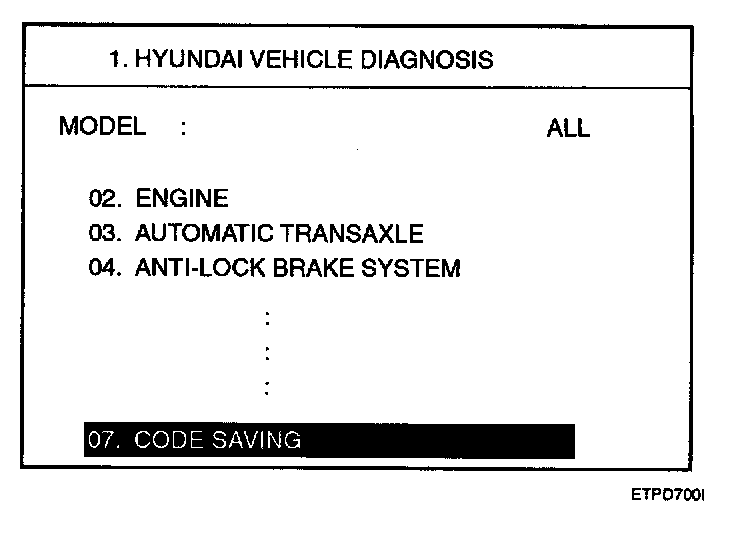

3. Select the vehicle model and then do "CODE SAVING".

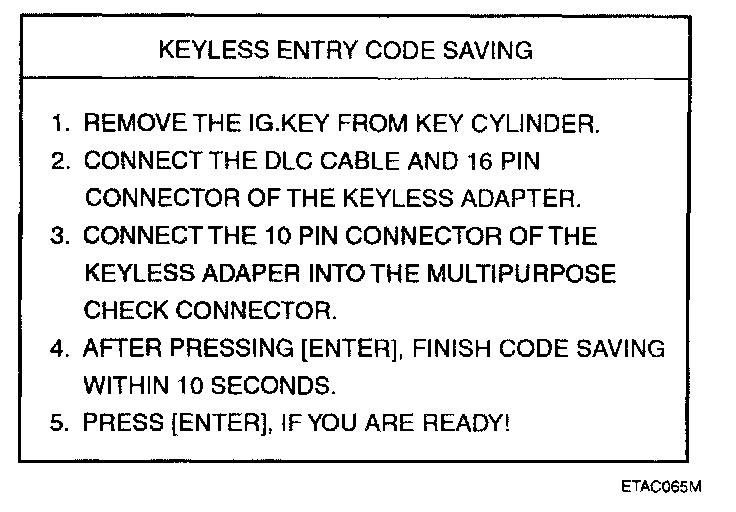

4. After selecting "CODE SAVING" menu, button 'ENTER" key, then the screen will be shown.

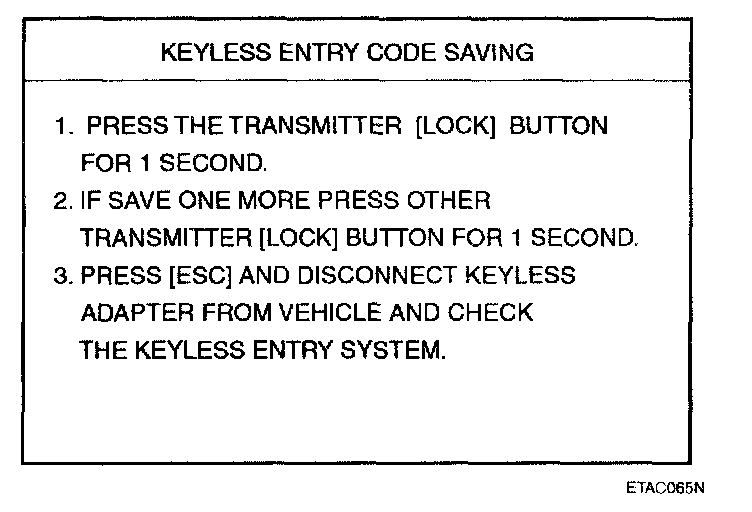

5. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.
6. Follow steps 1 to 3 and then code saving is completed.
7. Disconnect keyless adapter (09900-21300) from DLC cable and then proceed to self-diagnosis with DLC cable connected.
