Air Bag Control Module

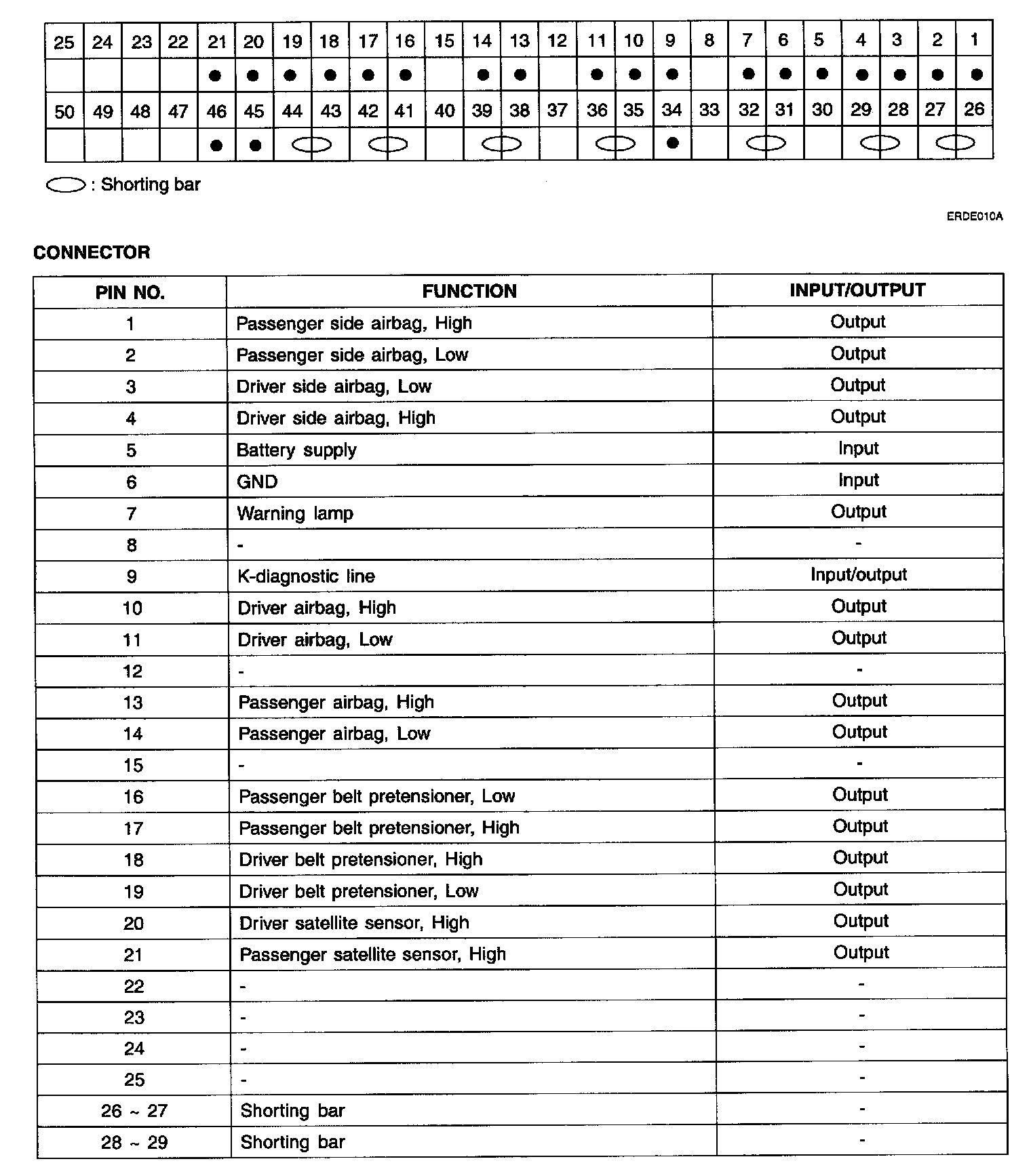

DAB+ PAB+SAB+BPT (SRE-LC) PIN No 1-29:

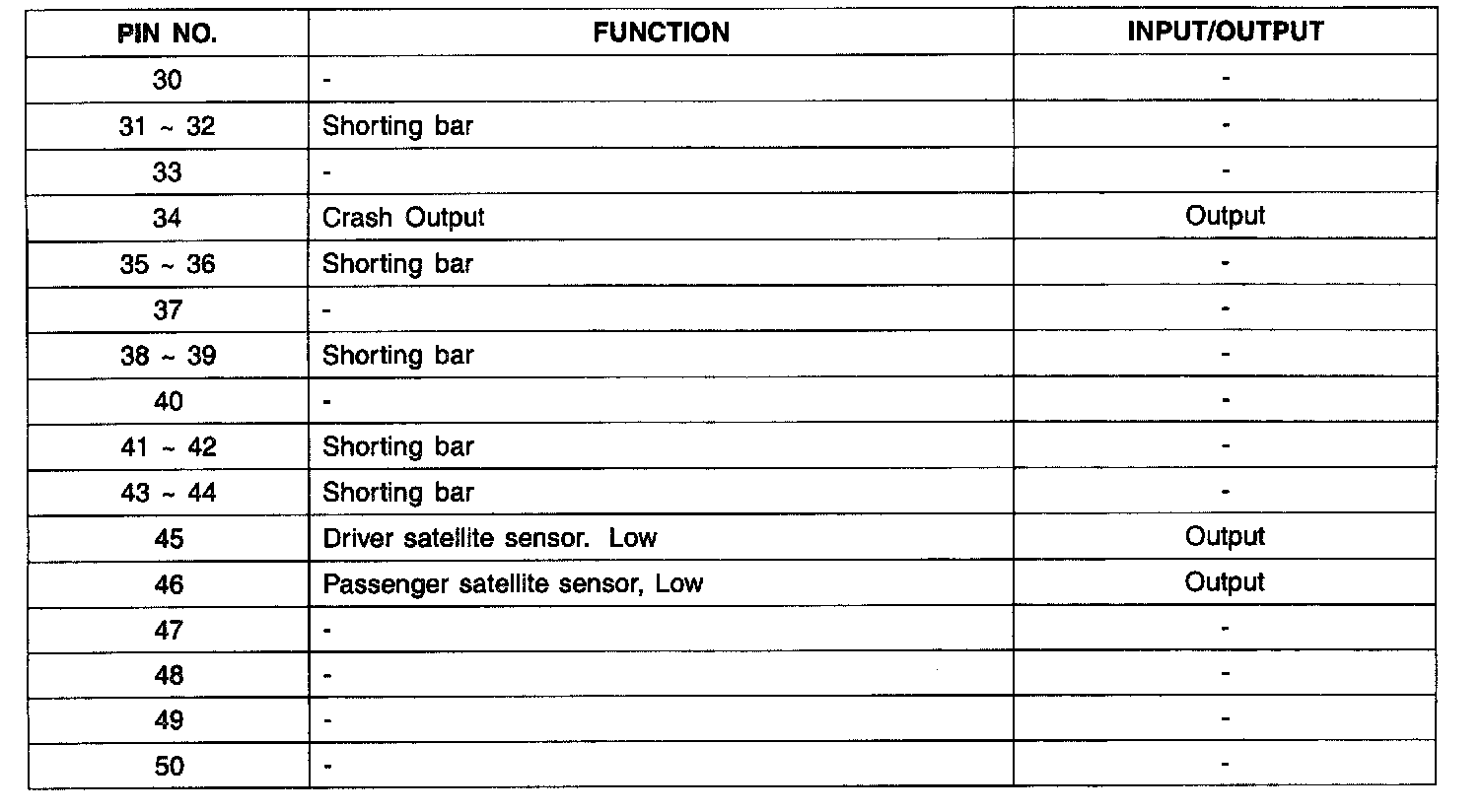

DAB+ PAB+SAB+BPT (SRE-LC) PIN No 30-50:

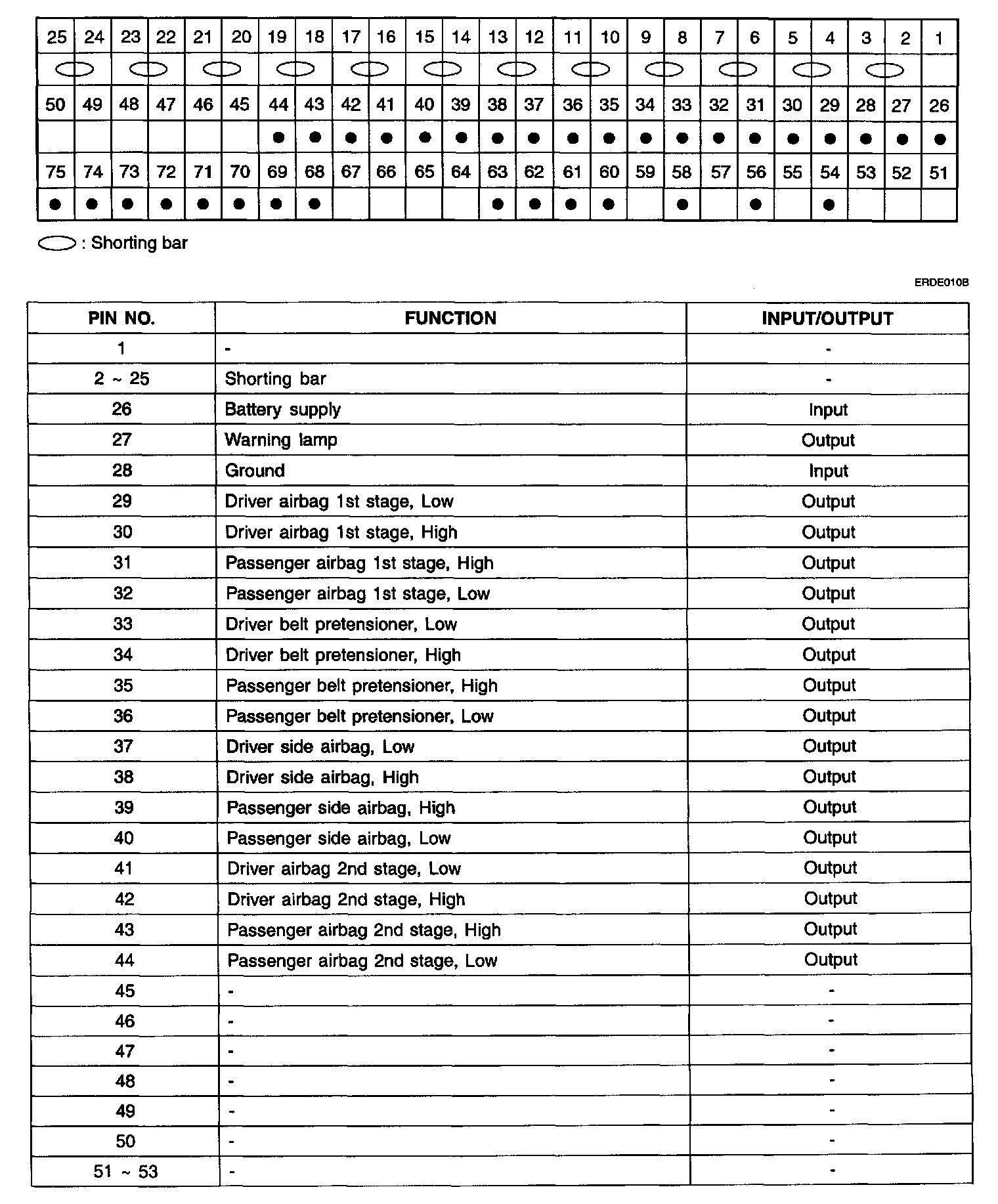

DAB+PAB+SAB+BPT (DUAL-STAGE AIRBAG) PIN No 1-53:

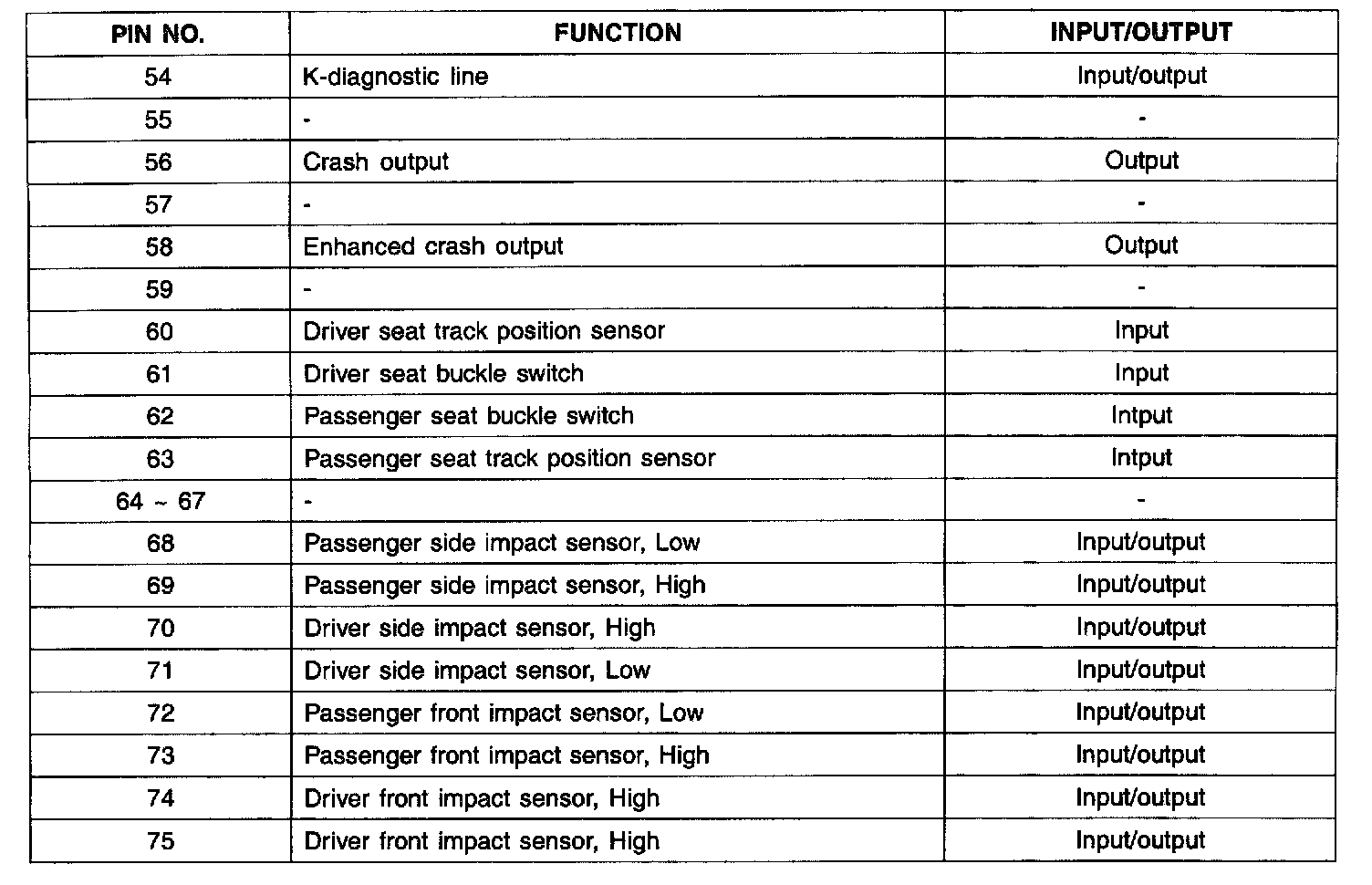

DAB+PAB+SAB+BPT (DUAL-STAGE AIRBAG) PIN No 54-75:
