Fuse Block

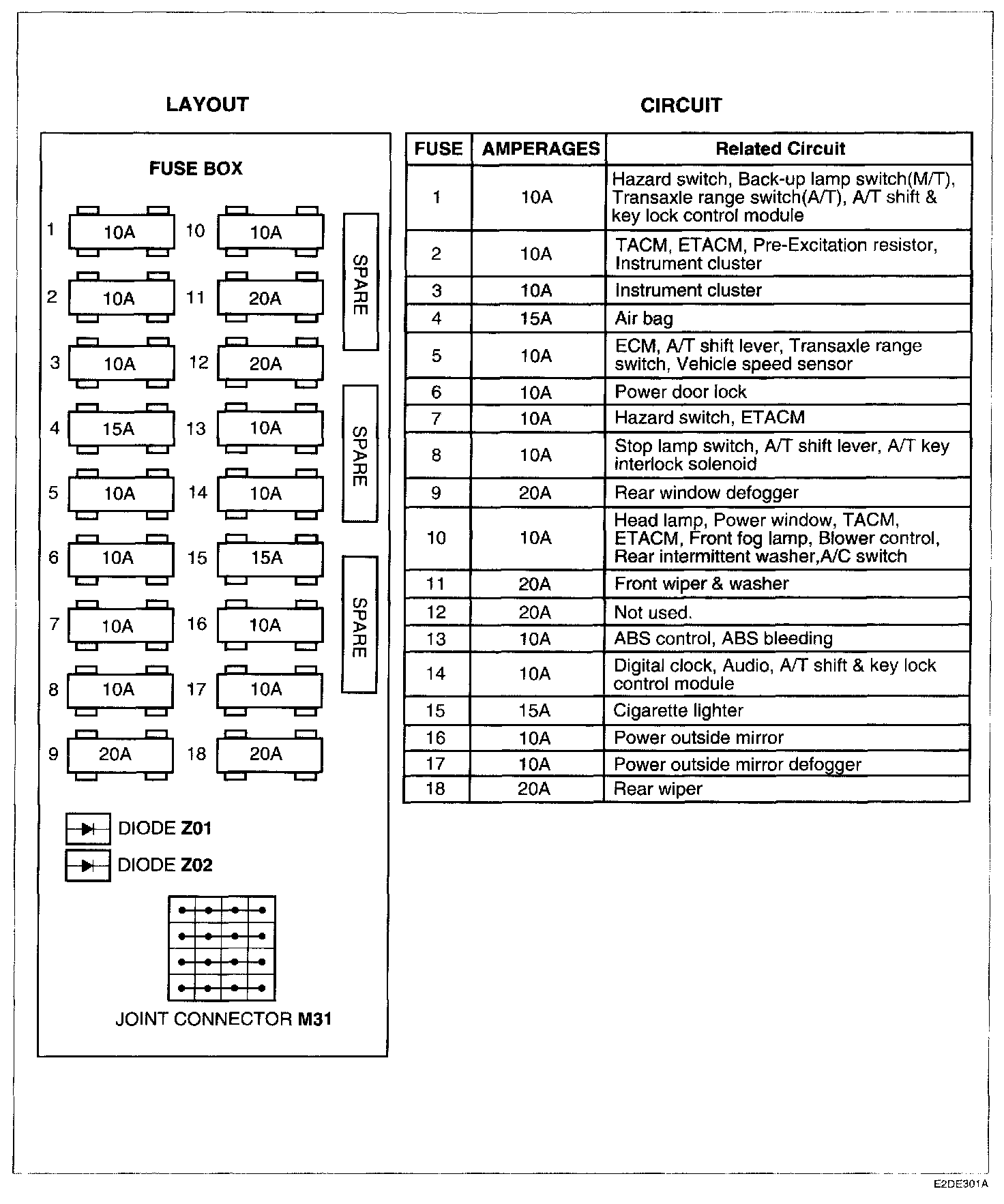

Dash Fuse Box:

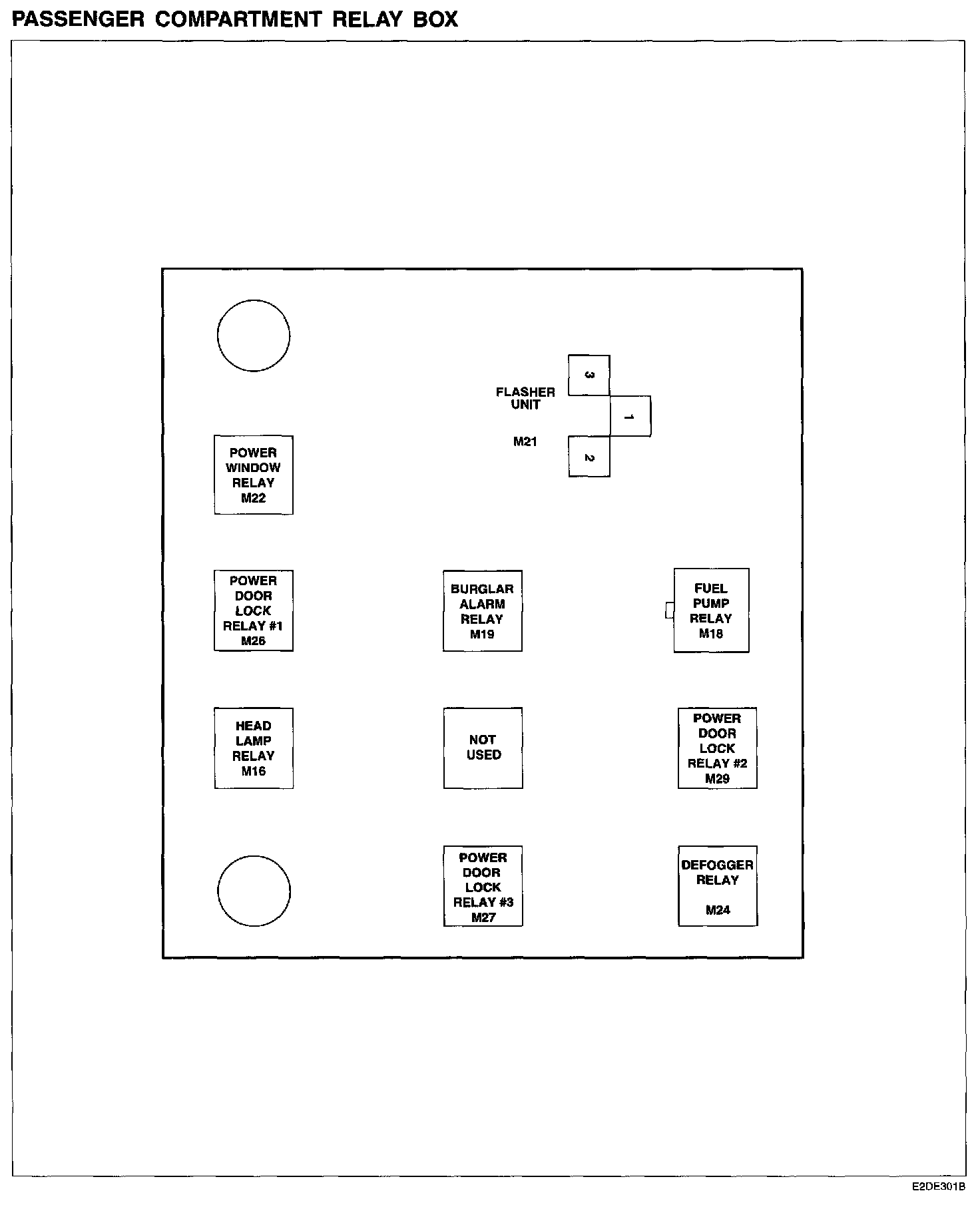

Passenger Compartment Relay Box:

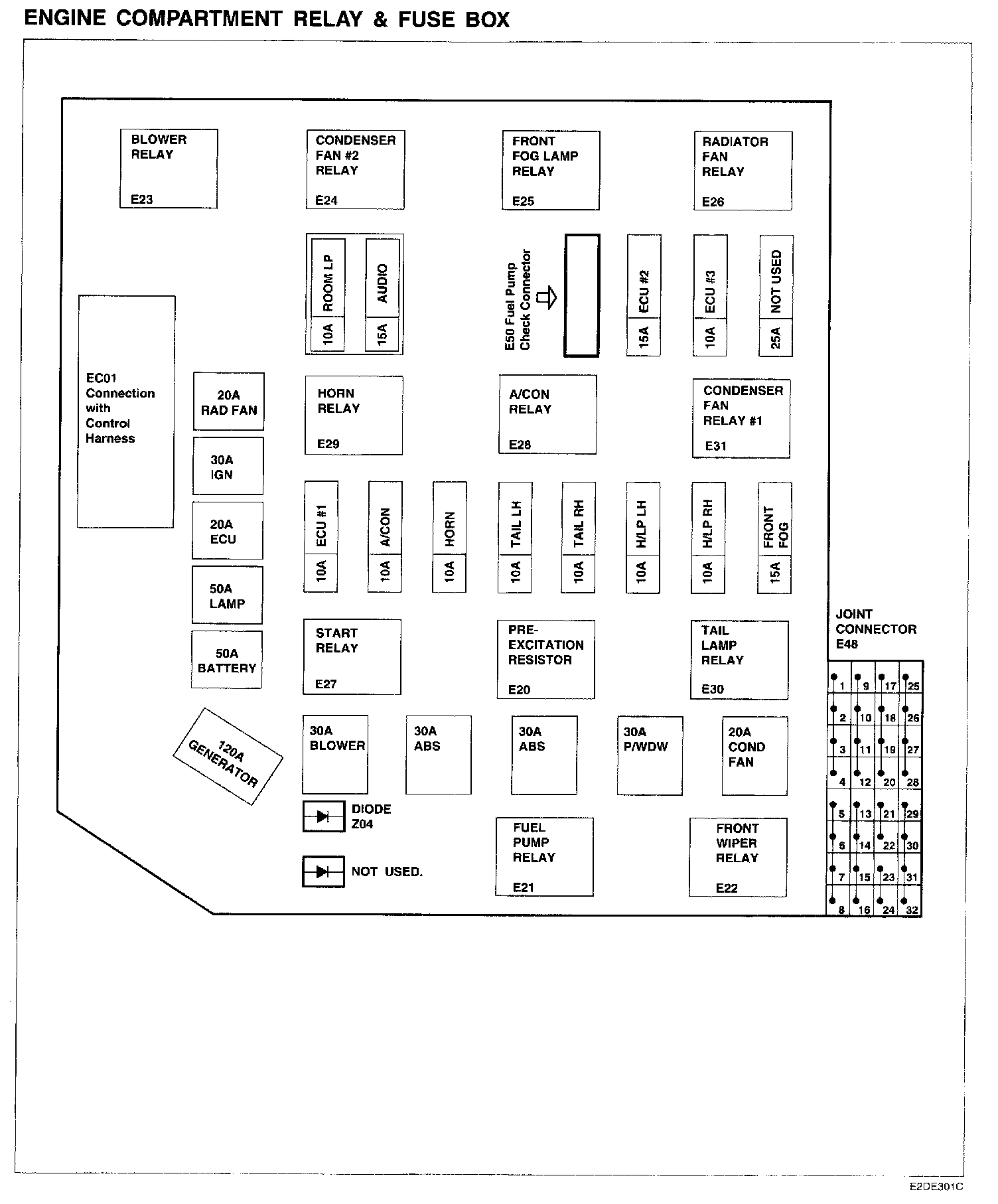

Engine Compartment Relay & Fuse Box Layout:

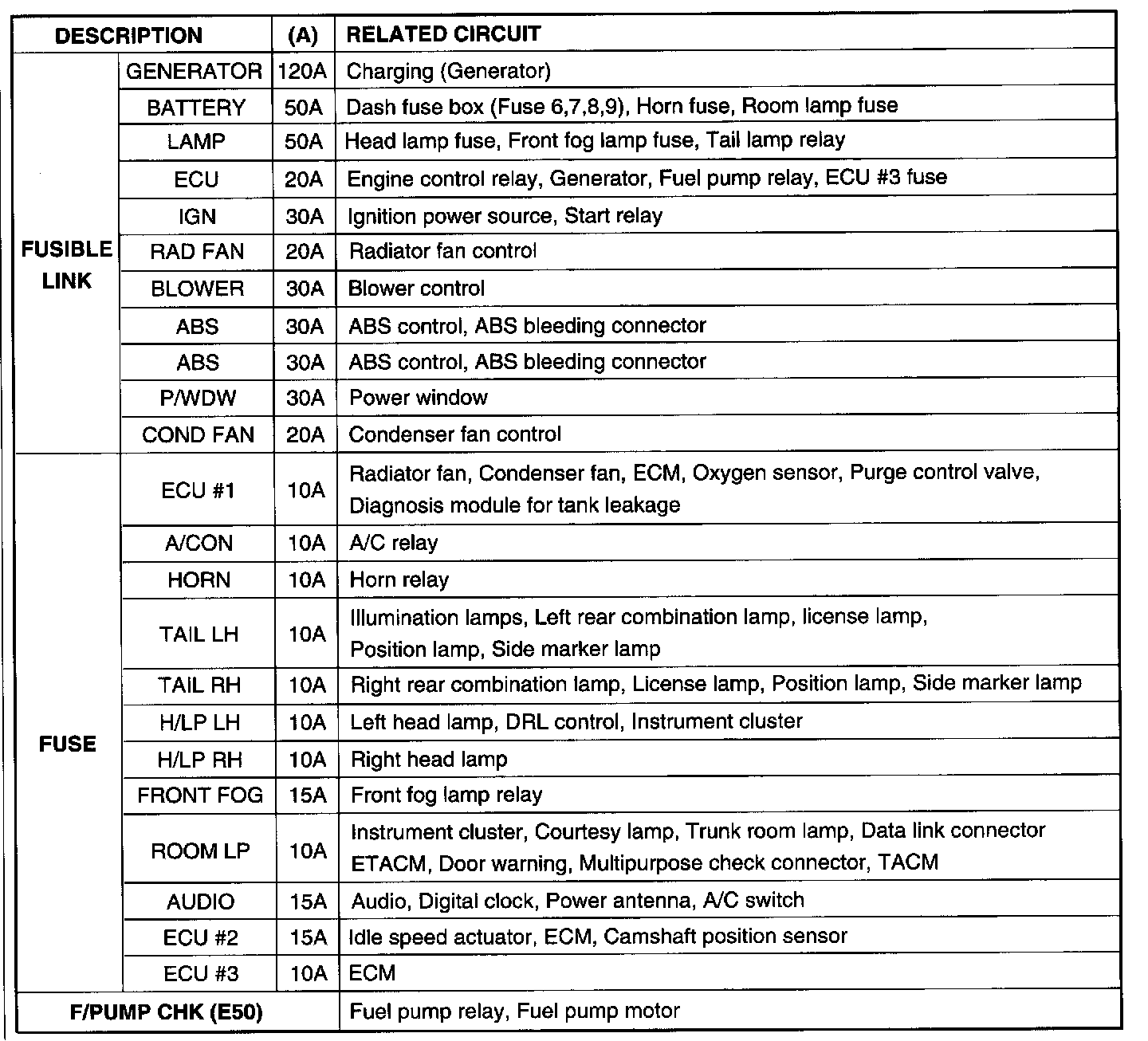

Engine Compartment Relay & Fuse Block Circuit Details:
