Flywheel

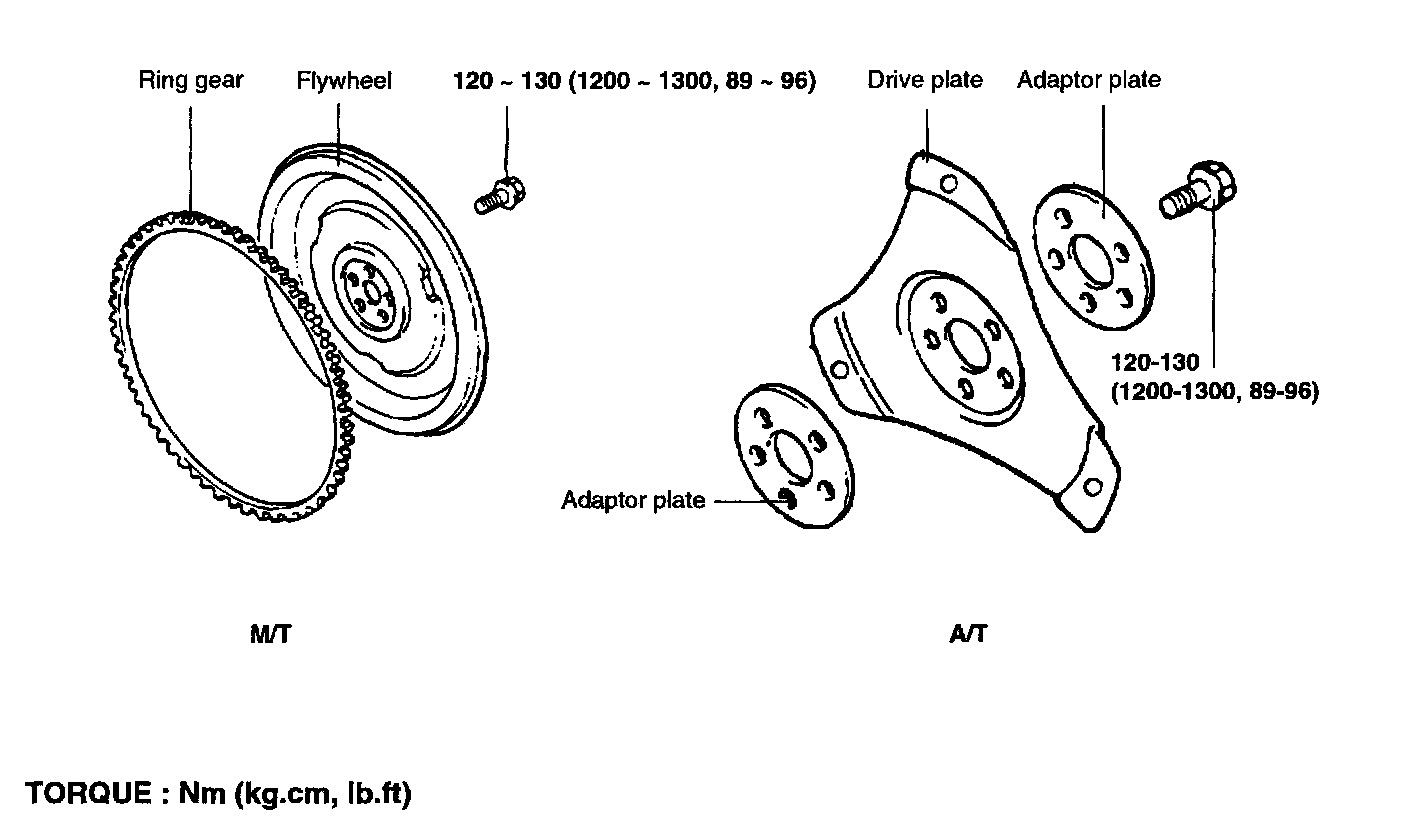

FLYWHEEL:






Flywheel run - out: .............0.1 mm (0.0039 inch)


Flywheel bolt: .............120 - 130 Nm (1200 - 1300 kg-cm, 89 - 96 ft. lbs.)
