3. Check Power To HO2S Heater

1. Turn ignition switch to ON position.
2. Measure voltage between terminal 3 of the HO2S harness connector and chassis ground.

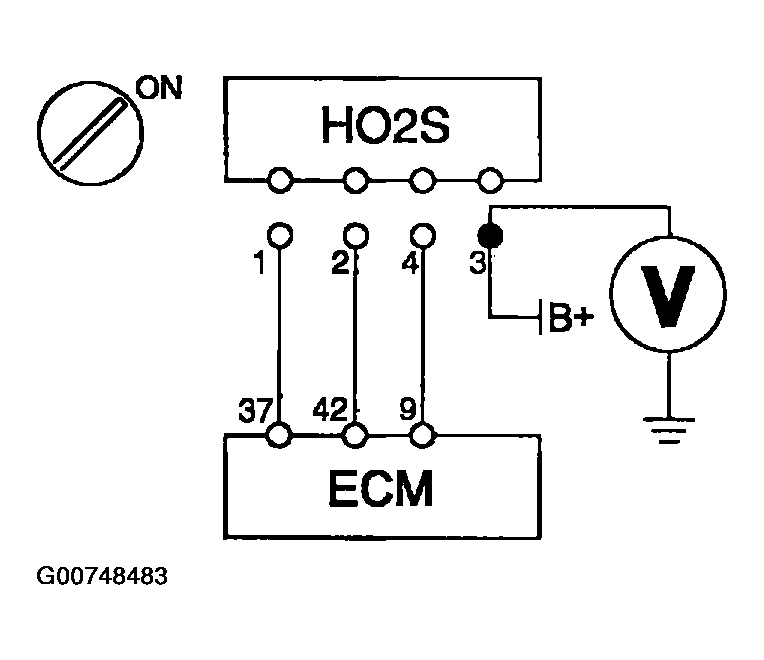

   Fig 1: Measuring HO2S Heater Supply Voltage

   Courtesy of HYUNDAI MOTOR CO.

• Specification : approximately B+

Is voltage within specification?

Yes: Go to next step.

No: Repair open or short to ground in harness.
