5. Check For Open In Harness

1. Turn ignition switch to OFF position and keep the OCV and ECM connectors disconnected.
2. Measure resistance between terminal 2 of the OCV harness connector and 11 of the ECM harness connector.

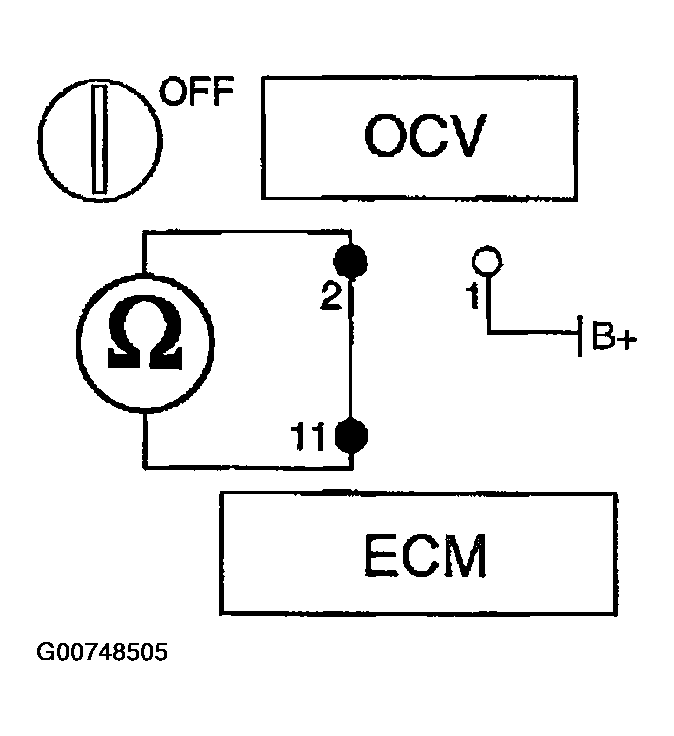

   Fig 1: Checking OCV Harness For Open Circuit

   Courtesy of HYUNDAI MOTOR CO.

• Specification: below 1Ω

Does resistance indicate continuity?

Yes: Proceed with ECM problem procedure.

No: Repair open in harness.
