Signal Waveform

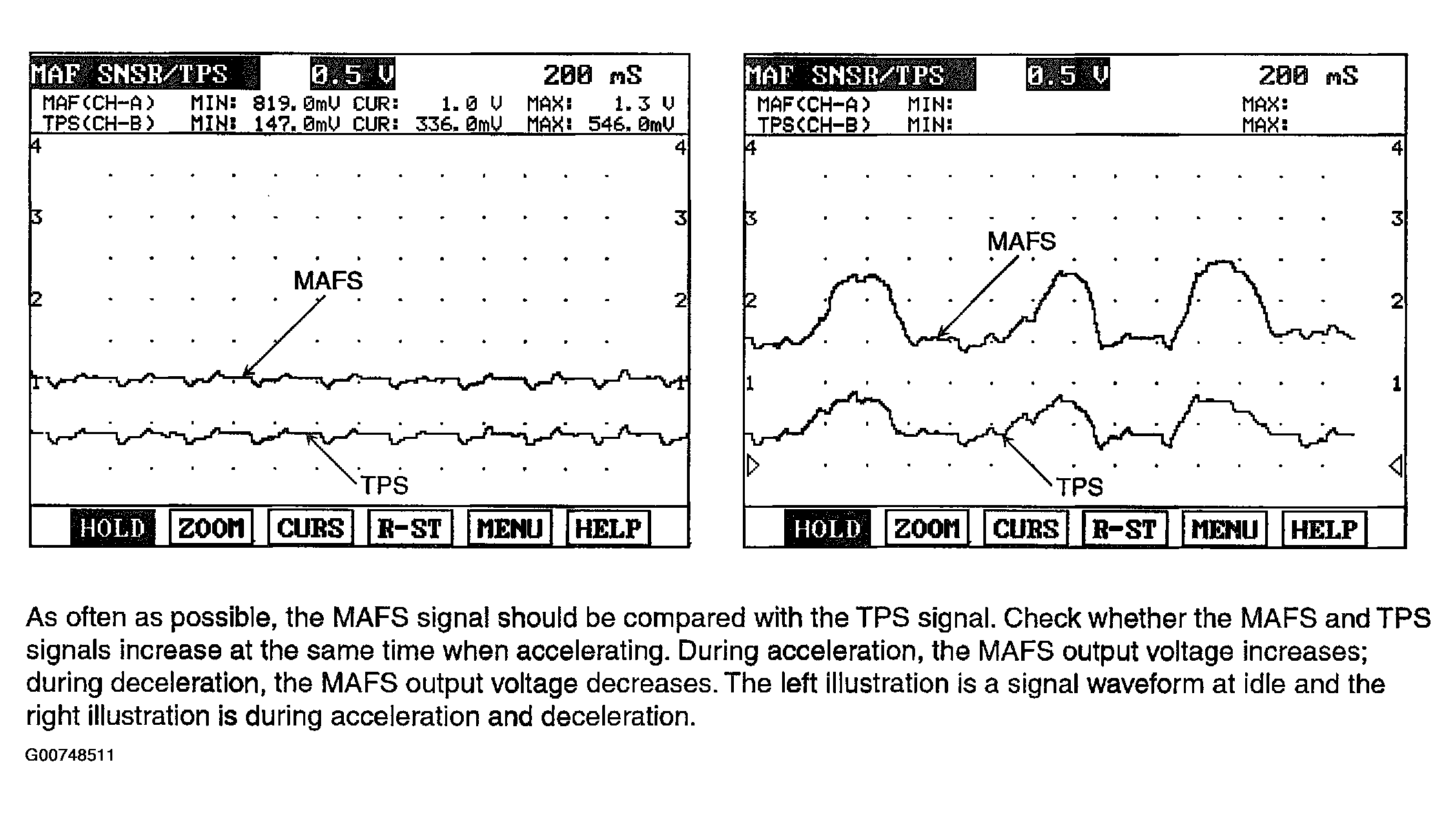

Fig 1: MAFS Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
